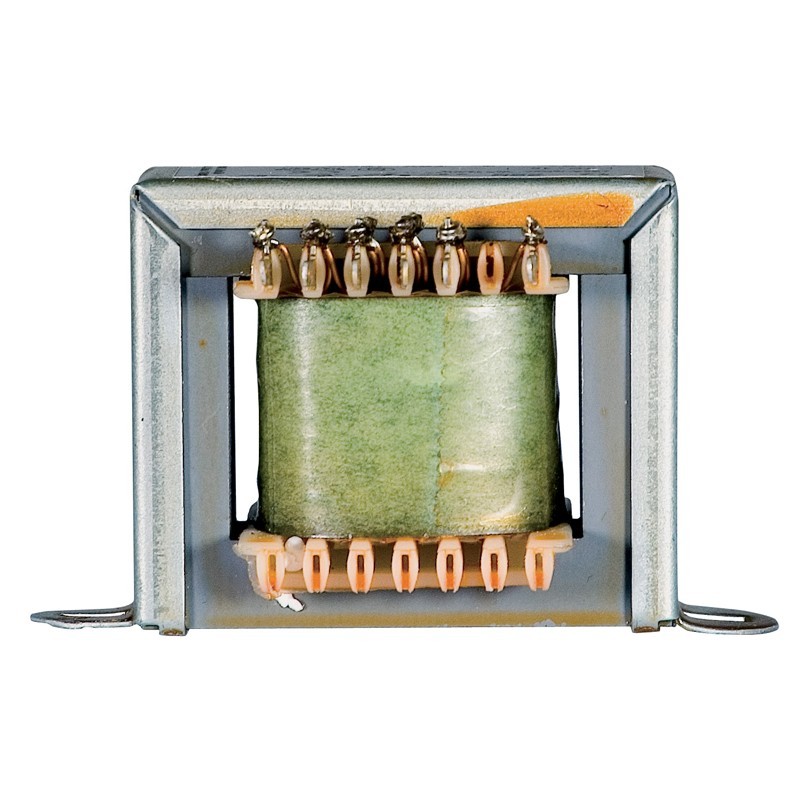

RCF line transformer TD10 for public address 13360045 TD 10
MAD 13360045
8024530005382
RCF 10W universal line transformer, with the following characteristics:
- Frequency response: 50 Hz - 18,000 Hz (- 3 dB)
- Power rating: 10W
- Input voltage: 100V - 70V
- Output power (4 Ohm): 10W - 5W - 2.5W - 1.2W
- Output power (8 Ohm): 10W - 5W - 2.5W - 1.2W - 0.6W
- Conforms to CE marking
- Dimensions: height 53mm, width 86mm, depth 59mm
- Weight: 0.5 kg
Allows connection of loudspeakers (with impedance 4 - 8 O) to lines with constant voltage (70V - 100V).
It is possible to select the power applied to the loudspeakers, as these transformers have multiple outputs with different transformation ratios.
€81.86
Items Available: 1
Strengths:
- Thanks to oversized materials and intercalated windings, they offer high efficiency and performance: dynamics and frequency response are particularly extended. They are suitable for driving professional speakers through constant-voltage power amplifiers (excluding TD 105)
- Are suitable for driving professional speakers through constant-voltage power amplifiers (excluding TD 105)
There are no reviews
Data sheet
- Type: Transformers
