Vivaldi 30W IP65 EN54-24 PH30MK2 Horn Diffuser IP65 IP65
VIL PH30MK2
8051272183009
Vivaldi 30W trumpet loudspeaker for EN54-24 certified voice evacuation systems, IP65 degree of protection for outdoor use.
€123.74
Items Available: 5
Frequently bought together

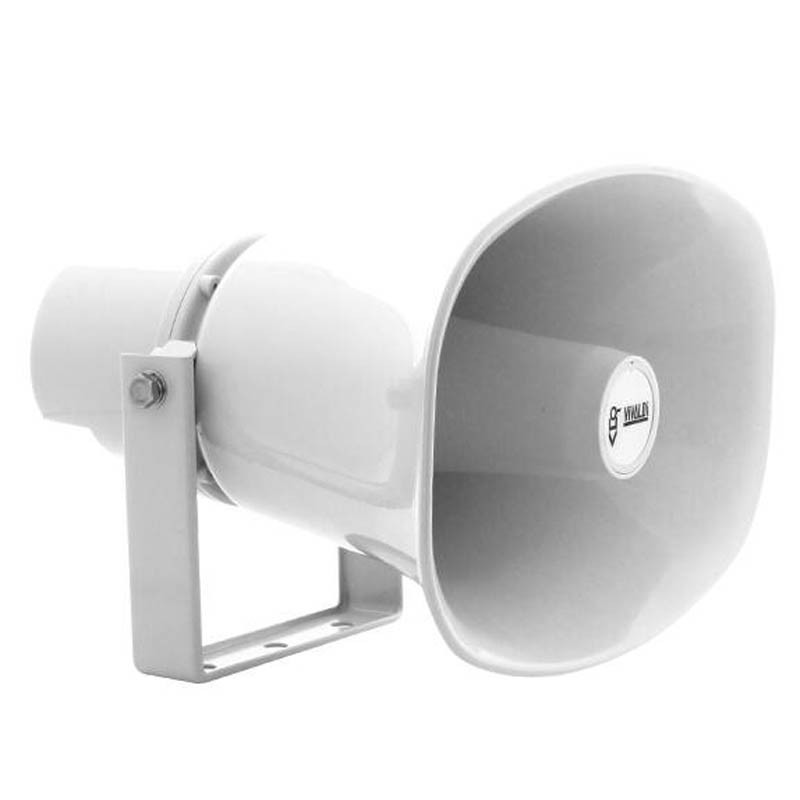

The PH30MK2 horn diffuser is designed for indoor and outdoor installation. Thanks to its IP65 degree of protection and its completely watertight construction it is not afraid of the most difficult environmental situations. It is supplied with a bipolar cable already headed about 50cm long. It can be easily installed on the wall or ceiling thanks to the supplied painted aluminium bracket.
It has four selectable powers: 3.8/7.5/15/30W@100V.
Features:
- Dimensions: 284 x 230 x 286 mm
- - Weight: 1.8 kg
- Frequency response: 250 - 6500 Hz
- Sensitivity(1W/1mt): 105 dB
- Sensitivity(500-5k Hz): 108 dB
- SPL max @30W: 120 dB
- SPL max @30W (500-5k Hz): 123 dB
- Nominal power 100V: 3.8/7.5/15/30 W
- Nominal impedance: 3.6k/1.8k/885/445 Ohm
- Maximum power 40Wrms @ 8Ohm
- RNP:
There are no reviews
Data sheet
- Type: Megaphones
