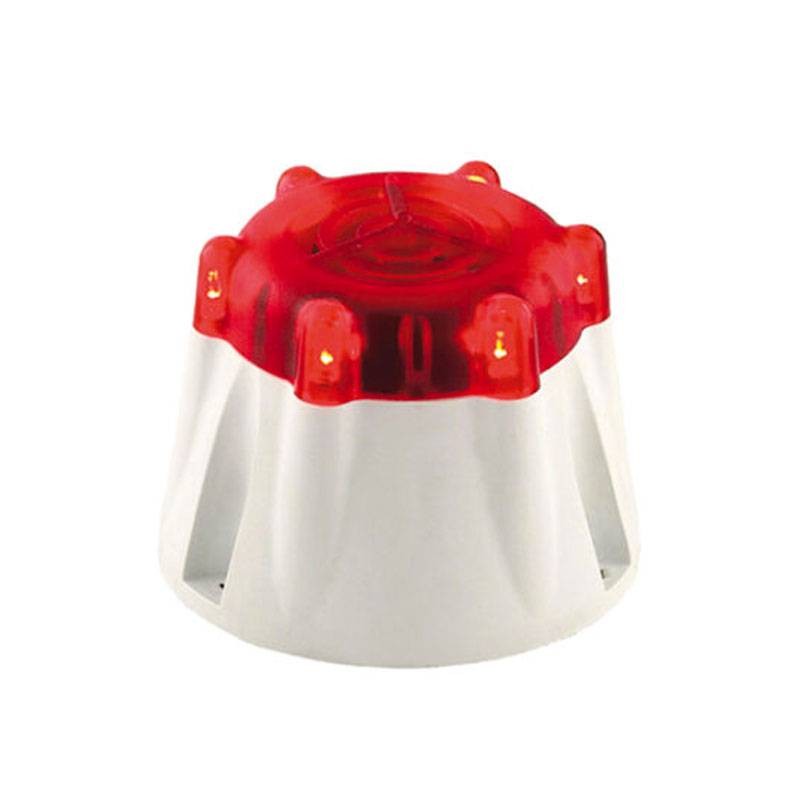

Multifunctional buzzer acoustic and luminous Sirena Bimf Led 12-240 AC DC 38030
SIR 38030
8010152380303
Multifunctional acoustic and luminous buzzer Sirena Bimf Led hole 22 mm with the following features:
- Series: Bimf Led
- Line: Electra
- Current: AC/DC
- Voltage: 12-240V
- Maximum consumption: 25.0 mA
- Frequency: 50/60Hz
- Duty cycle: Continuous
- Electrical Safety Class: Class 2
- Lamp socket type: LED Integrated
- Dome color: Red
- Base color: Gray
- Light diffusion: Direct
- Light source: LED
- Lighting effects: Flashing
- Number of tones: 3
- Tone Type: Continuous, Intermittent
- dB Max: 85

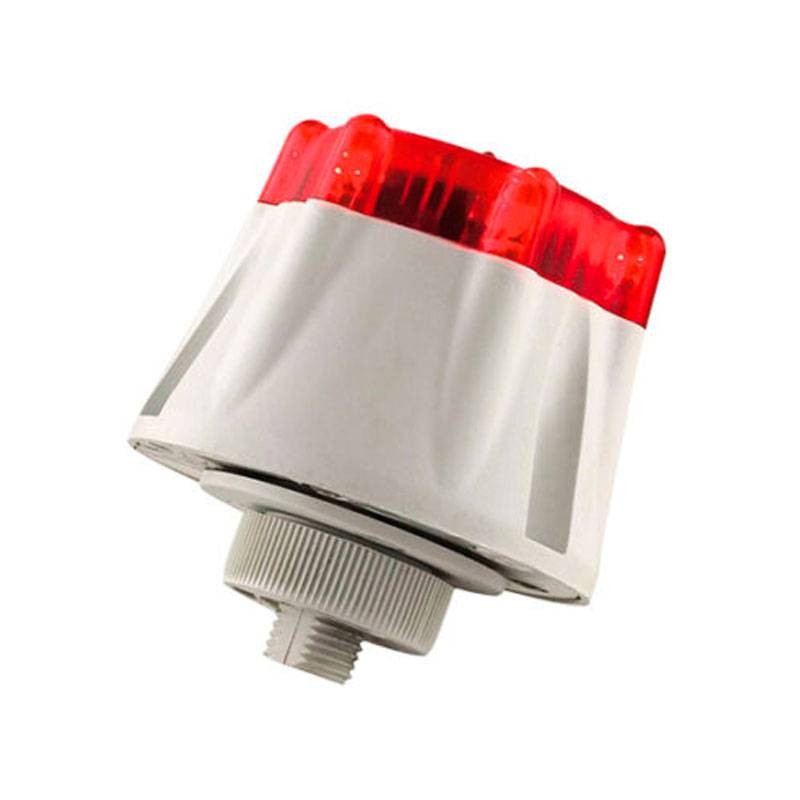

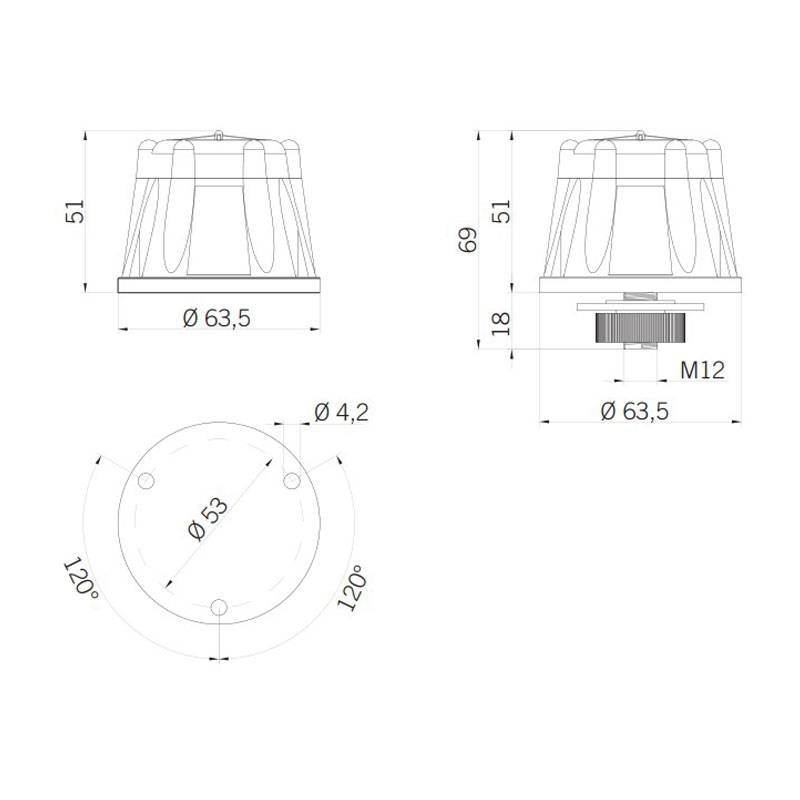

Fastening is by standard hardware or by ferrule for back panel installation (12mm diameter). Supplied adapter for 22mm diameter hole.
€98.90
Out of stock
Incoming
Small acoustic-luminous multifunction buzzer for panels and switchboards. Developed with piezoelectric acoustic capsule, it generates a characteristic continuous or intermittent sound (in slow or fast mode).
The light signal can be steady (with continuous sound) or slow or fast flashing (with slow and fast intermittent sound, respectively).
Features:
- Operating cycle: Continuous
- Self-extinguishing
- Degree of protection: IP55
- Electrical safety class: Class 2
- Minimum operating temperature: -30 degrees
- Maximum operating temperature: +50 degrees
- Adjustable sound: No
- Base Material: ABS
- Base type: Backplate
- Fixing: Locking ring
There are no reviews
Data sheet
- Type: Buzzer
- Voltage: 240VAC
- Degree of protection: IP55
- Series: Electra
