Sinclair Ray Air conditioner 24000BTU 6.2KW white
KIT SINRAY24
8595698300560
Single-split 24000 BTU air conditioner from Sinclair's Ray line, cooling capacity 6.2 kW and heating capacity 6.5 kW, With R32 gas included, energy class A++/A+, with "I FEEL" function, Cold Plasma generator,(optional Wi-Fi to be purchased separately SWM-04).

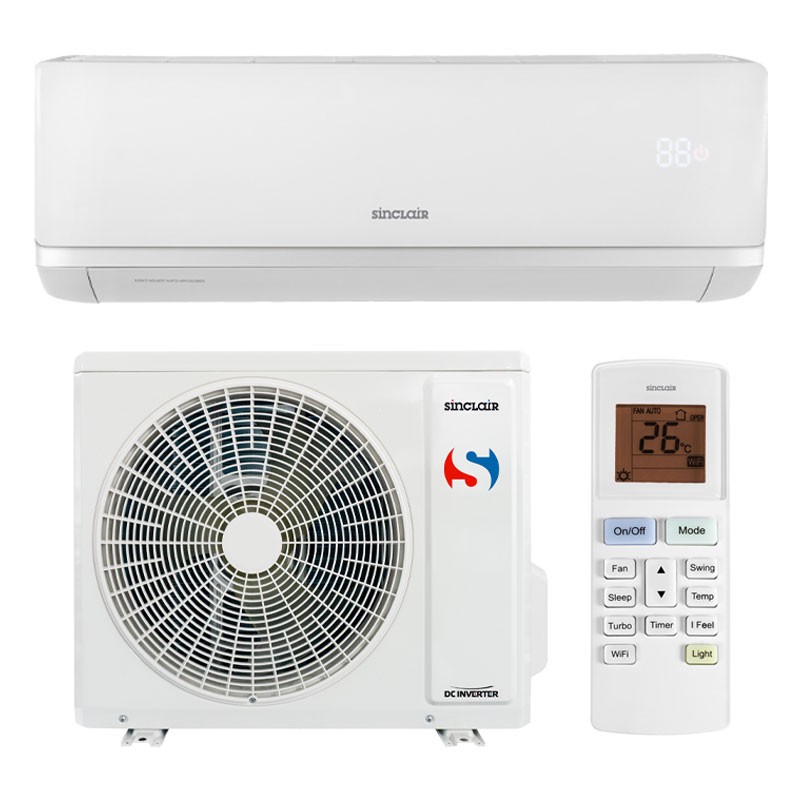

The kit includes:
-

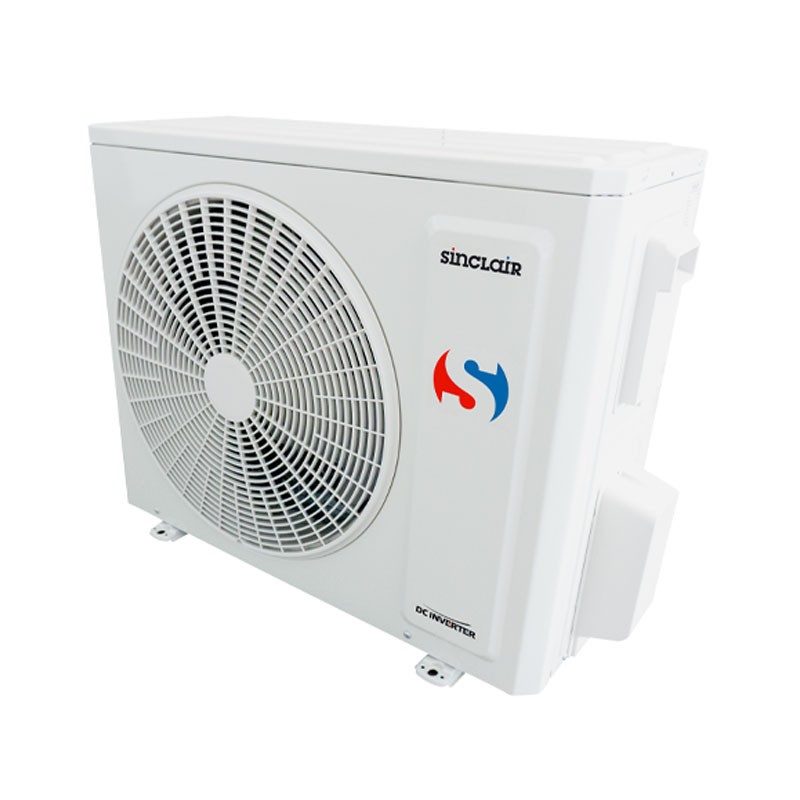

1 Outdoor Unit 24000BTU (SOH-24BIR).
-

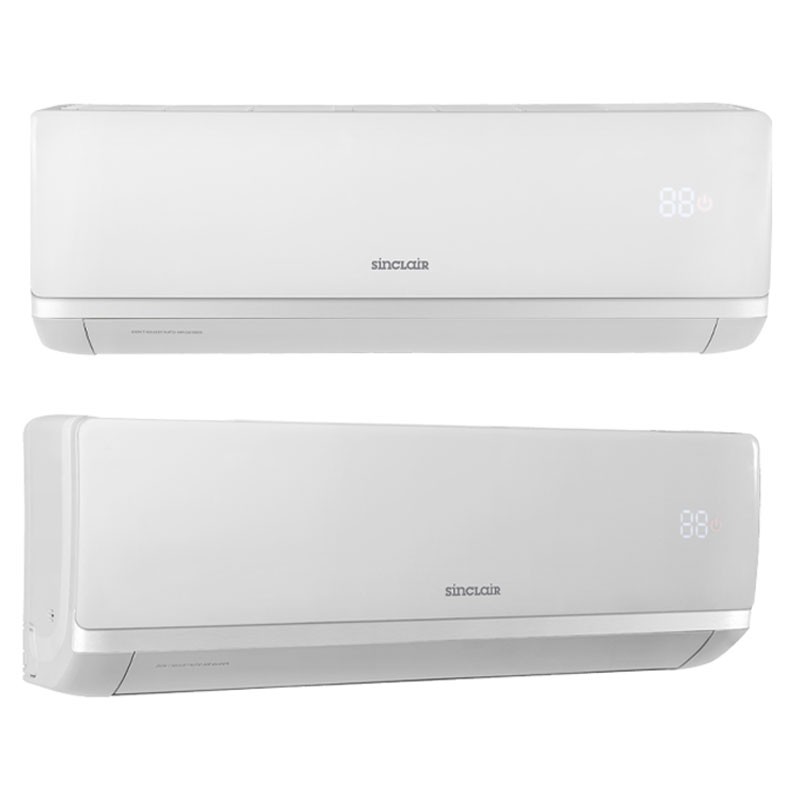

1 Indoor Unit 24000BTU (SIH-24BIR)
-

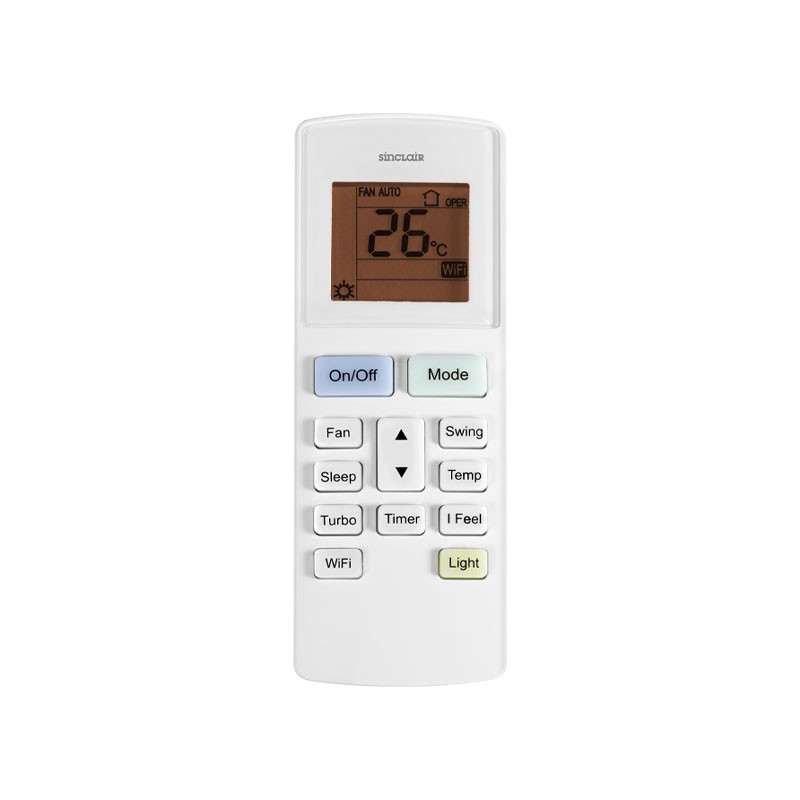

1 Backlit infrared remote control.
For a room of approximately 78m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€943.97
Items Available: 4
: 2
Air conditioners of the same series
Frequently bought together
- On sale!
- On sale!
Sinclair Ray Compact, Quiet and Efficient
The innovative RAY line is the base line of our product range. These units provide an economical solution without compromising quality. RAY units have the minimalist dimensions and modern, compact design. Multiple basic functions are available to the user, such as QUIET for even quieter operation and I FEEL for more comfortable temperature control.
Advanced comfort and guaranteed quietness
The QUIET function allows the Sinclair Ray air conditioner to operate in ultra-quiet mode, perfect for bedrooms or rooms where quiet is needed. The backlit remote control makes it easy to operate even at night, while the I FEEL function, thanks to the remote control's built-in sensor, ensures more precise temperature control in the occupied zone.
Air purification with Cold Plasma
The Cold Plasma ionization system significantly improves air quality, helping to eliminate bacteria, allergens and bad odors. Ideal for allergy sufferers or those who simply want to breathe cleaner air in their homes.
Smart control with optional Wi-Fi module
With the optional SWM-04 module, you can control the air conditioner directly from your smartphone or tablet, wherever you are, via dedicated app. Ideal for turning on the air conditioner before returning home and already finding the room at the ideal temperature.
Energy efficiency and versatility
Energy class A++ in cooling and A+ in heating ensures low consumption throughout the year. The 8°C TEMPERATURE function is perfect for maintaining a minimum temperature during winter, preventing freezing in vacation homes or unheated rooms.
Technical specifications of the Sinclair Ray Air Conditioner
Cooling
| Feature | Description |
|---|---|
| Power Cooling | 6.2 (1.8 - 6.9) kW |
| Power consumption (cooling) | 1.83 kW |
| Max. power input (cooling) | 2.3 kW |
| Current (cooling) | 7,6 A |
| Max. current (cooling) | 10,2 A |
| Pdesign (cooling) | 6.2 kW |
| Annual power consumption (cooling) | 350 kWh |
| SEER | 6,8 W |
| EER | 3,40 W |
| Energy class (cooling) | A++ |
Heating
| Feature | Description |
|---|---|
| Heating power | 6.5 (1.3 - 7.0) kW |
| Heating power input | 1.91 kW |
| Max heating power input | 2.3 kW |
| Heating current | 7,6 A |
| Max heating current | 10,2 A |
| Heating energy class | A+ |
| Heating Pdesign | 4.7 kW |
| SCOP | 4,0 W |
| COP | 3,40 W |
| Annual heating electricity consumption | 1645 kWh |
Indoor Unit
| Feature | Description |
|---|---|
| Air flow rate | 900 / 800 / 600 / 400 m³/h |
| Sound pressure level in 1 m (indoor unit) | 48 / 45 / 37 / 30 dB(A) |
| Sound power level (indoor unit) | 58 / 55 / 47 / 40 dB(A) |
| Dehumidification power | 1.8 l/h |
| Dimensions (w x h x d) | 970 x 300 x 225 mm |
| Net / gross weight | 13.5 / 16.5 kg |
Outdoor Unit
| Feature | Description |
|---|---|
| Power supply | To outdoor unit: 220 - 240 / 1 / 50 V / Ph / Hz |
| Air flow rate (outdoor unit) | 3200 m³/h |
| Sound pressure level in 1 m (outdoor unit) | 57 dB(A) |
| Sound power level (outdoor unit) | 65 dB(A) |
| Refrigerant / Quantity / Eq. CO₂ | R32 / 1.23 kg / 0.83 t |
| Refrigerant refill | 16 g/m |
| Piping - Liquid (diameter) | 1/4 inch / 6 mm |
| Piping - Gas (diameter) | 1/2 inch / 12 mm |
| Pre-filled with refrigerant for the length of the pipeline | 5 m |
| Min. / Max. length of pipeline | 3 / 25 m |
| Max. superelevation | 10 m |

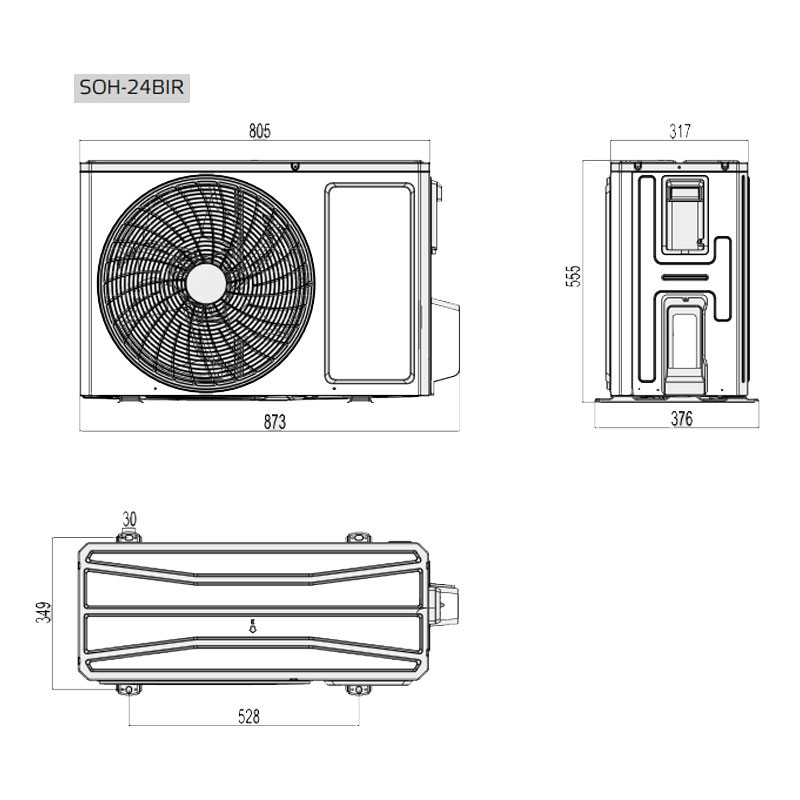

| Dimensions (w x h x d) | 873 × 555 × 376 mm |
| Net / gross weight | 36.5 / 39.5 kg |
| Operating temperature range cooling | -15 ~ 43 °C |
| Operating temperature range heating | -15 ~ 24 °C |
There are no reviews
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 24000 BTU (7,1 Kw)
- System: Monosplit
- Room Size: 78m²
- Energy class: A++
- Series: Ray
