Schneider PrismaSet W600/W650 6M LVS03806 Solid Front Plate

Schneider
Schneider
SNR LVS03806 3606481873859

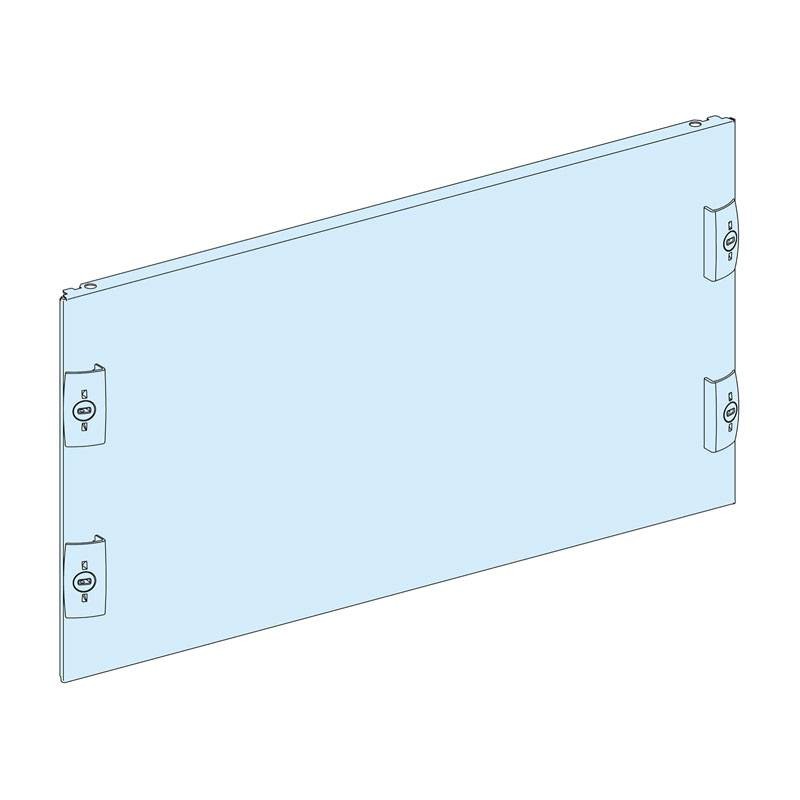

Schneider PrismaSet solid face plate with the following features:

  • Product range: PrismaSet G - PrismaSet P
  • Product type or component: Front plate
  • Range compatibility: PrismaSeT G cabinet - PrismaSeT P cabinet - PrismaSeT Pack 160 cabinet
  • Type of front plate: Plain
  • Number of vertical modules (50 mm): 6
  • Product Certifications: ASTA
  • Material: Steel
  • Surface finish: Matt textured
  • Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet W600/W650 6M LVS03806 Solid Front Plate
€36.57
€36.57

€36.57
Tax included
Calculate shipping cost
Items Available: 31
Further availability of the manufacturer
€36.57

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Further Schneider circuit breaker combinations:

Description of poles:

  • 3 x 2P: mounting plate support: kilowatt-hour meters vertical installation
  • 2 x 4P: mounting plate support: kilowatt-hour meters vertical installation

Device installed:

  • Power meters: kilowatt-hour meters - connection vertical installation
  • Altistart: ATS01N


Enclosure/Cabinet Description:

  • Floor cabinet width 600 mm
  • Wall cabinet width 600 mm
  • Enclosure cabinet width 650 mm depth 400 mm
  • Packing cabinet width 555 mm

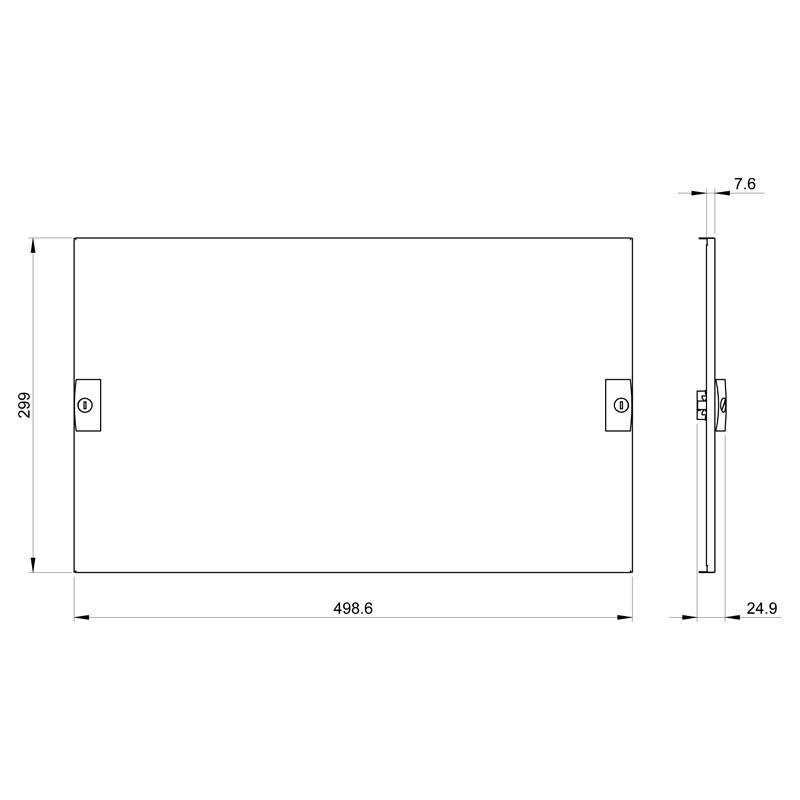

Dimensions and weight:

  • Height: 300 mm
  • Width: 500 mm
  • Weight: 1.22 kg

There are no reviews

Data sheet

Type:
Plates
Modules:
6
