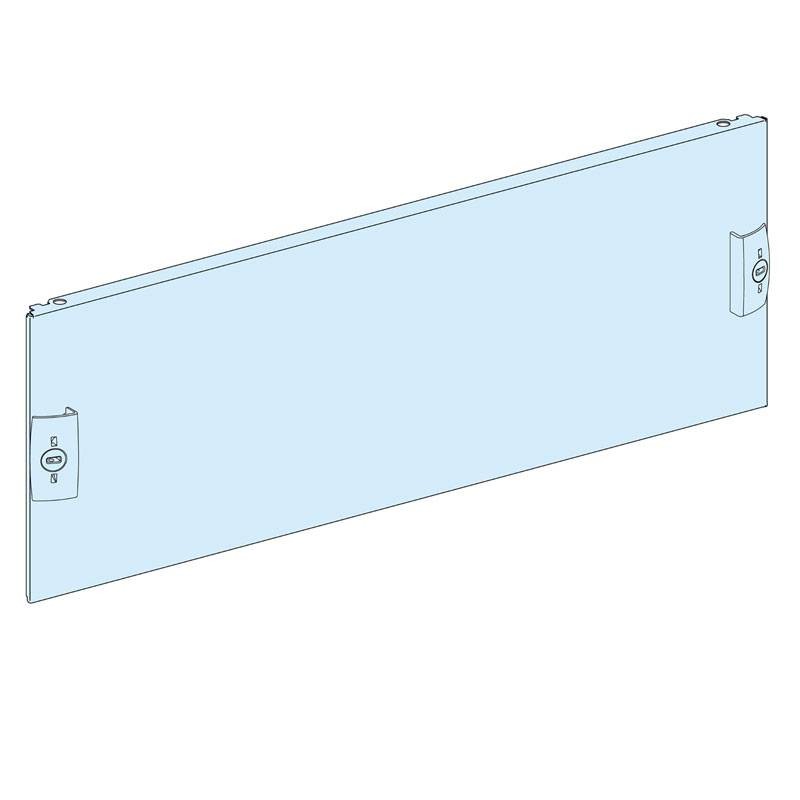

Schneider PrismaSet W600/W650 5M LVS03805 Solid Front Plate

Schneider
Schneider
SNR LVS03805 3606481873842

Schneider PrismaSet solid face plate with the following features:

  • Product range: PrismaSet G - PrismaSet P
  • Product type or component: Front plate
  • Range compatibility: PrismaSeT G cabinet - PrismaSeT P cabinet - PrismaSeT Pack 160 cabinet
  • Type of front plate: Plain
  • Number of vertical modules (50 mm): 5
  • Product Certifications: ASTA
  • Material: Steel
  • Surface finish: Matt textured
  • Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet W600/W650 5M LVS03805 Solid Front Plate
€32.42
€32.42

€32.42
Tax included
Calculate shipping cost
Items Available: 53
Further availability of the manufacturer
€32.42

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Description of poles: 9 x 3P: modular track support: horizontal installation TeSys U

Installed device:

  • TeSys: TeSys U fixed - horizontal installation
  • Altistart: ATS01N103/106FT
  • Phaseo: LV/BV transformer
  • Enerlin'X: FDM128

Enclosure/Cabinet Description:

  • Floor cabinet width 600 mm
  • Wall cabinet width 600 mm
  • Enclosure cabinet width 650 mm depth 400 mm
  • Packing cabinet width 555 mm

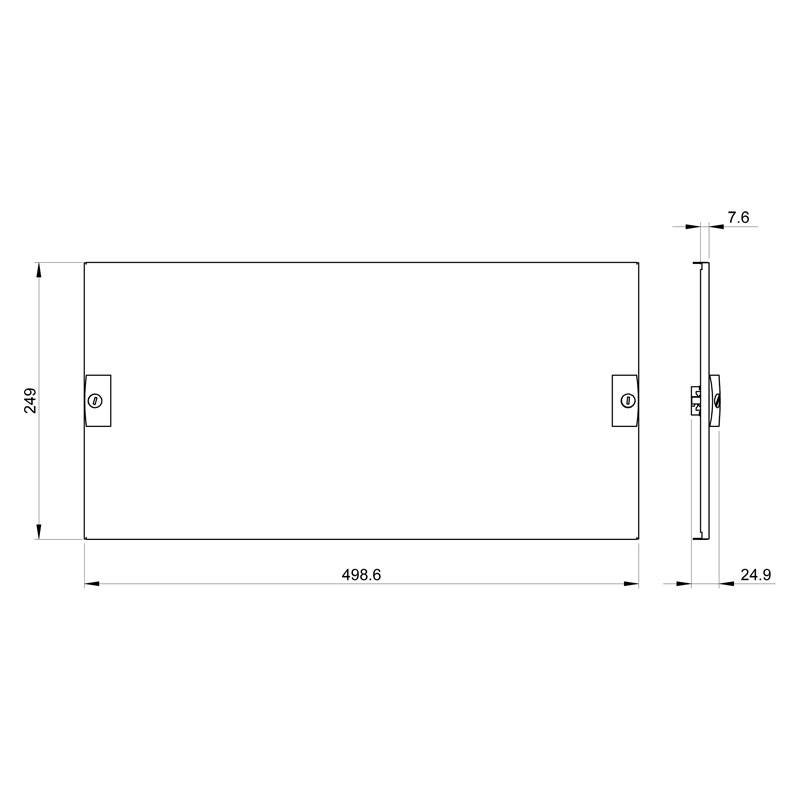

Dimensions and weight:

  • Height: 250 mm
  • Width: 500 mm
  • Weight: 1.04 kg

There are no reviews

Data sheet

Type:
Plates
Modules:
5
