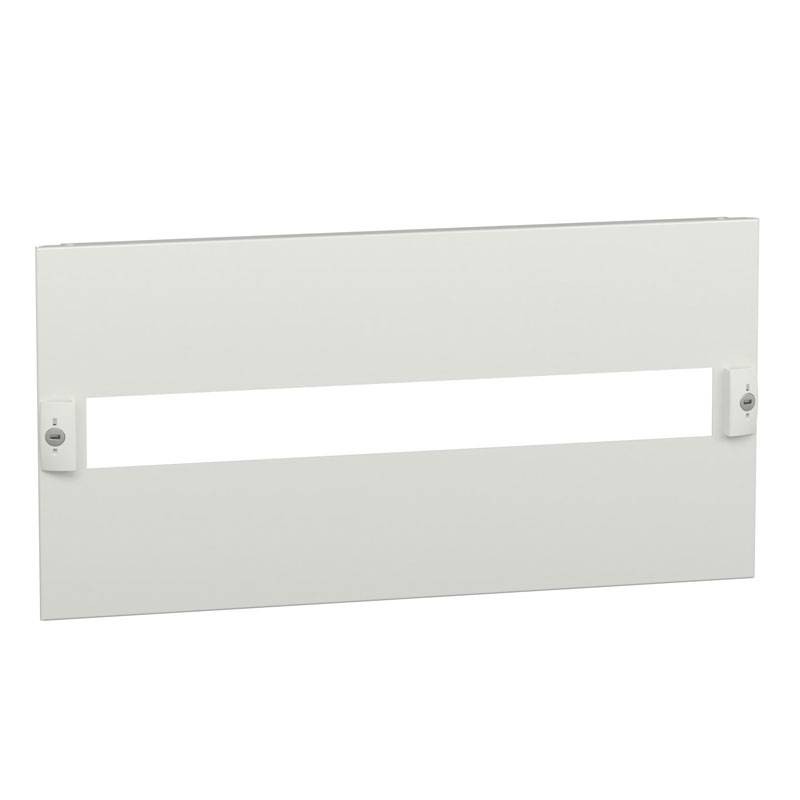

Schneider PrismaSet W600/650 5M Modular Front Plate LVS03205

Schneider
Schneider
SNR LVS03205 3606481872715

Schneider PrismaSet modular face plate with the following features:

  • Product range: PrismaSet G - PrismaSet P
  • Product type or component: face plate
  • Type of face plate: modular cutout
  • Number of vertical modules 50mm:5
  • Product Certifications: ASTA
  • Material: steel
  • Surface finish: textured matte
  • Protective treatment: electrophoresis treatment and heat-cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet W600/650 5M Modular Front Plate LVS03205
€32.38
€32.38

€32.38
Tax included
Calculate shipping cost
Items Available: 40
Further availability of the manufacturer
€32.38

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features

  • Connection position: Direct connection

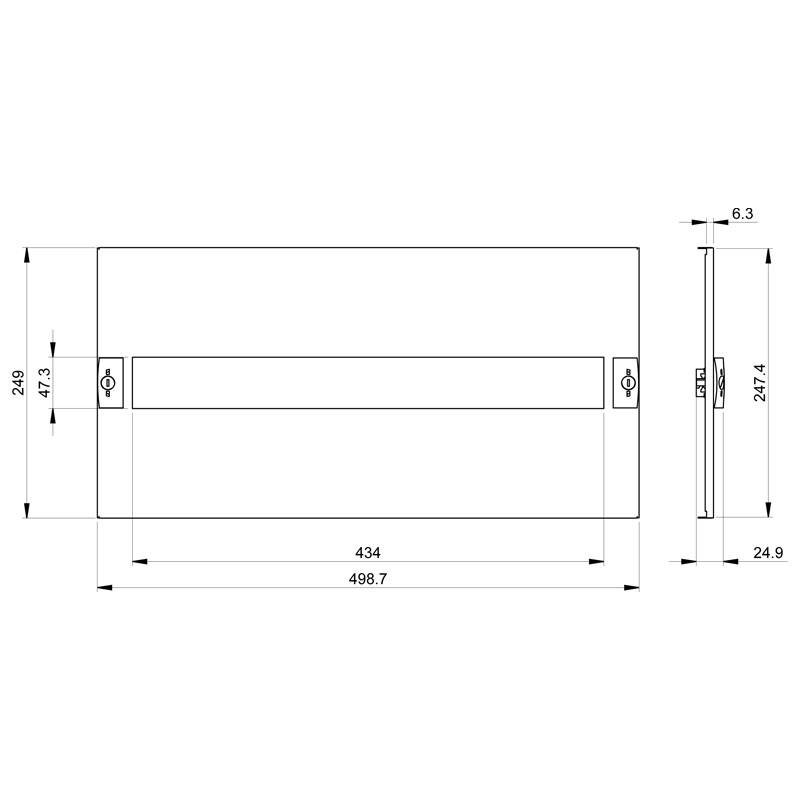

  • Dimensions: height 250 mm - width 500 mm

Range compatibility:

  • PrismaSeT G Cabinet
  • PrismaSeT P Cabinet
  • PrismaSeT Pack 160 Wardrobe
  • PrismaSeT Pack 250

Device installed:

  • ComPact: INS100 fixed - control: direct front rotary handle - vertical installation
  • ComPact: INS125 fixed - control: direct front rotary handle - vertical installation
  • ComPact: INS160 fixed - control: direct front rotary handle - vertical installation
  • Acti 9: fixed C120 without earth leakage protection - control: switch TeSys: fixed GV3
  • Acti 9: fixed iC120 without earth leakage protection - control: switch
  • Multi 9: fixed NG125 without differential protection - control: breaker
  • Multi 9: fixed NG125 NA - control: switch
  • ComPact: fixed NG160 without differential protection - control: switch
  • ComPact: fixed NG160 NA without differential protection - control: switch TeSys: fixed TeSys U - horizontal installation
  • Acti 9: C120 fixed with differential protection - control: toggle
  • Acti 9: iC120 fixed with differential protection - control: toggle
  • Multi 9: NG125 fixed with differential protection - control: toggle
  • ComPact: NG160 fixed with differential protection - control: toggle
  • ComPact: NSXm fixed without differential protection - control: toggle - vertical installation
  • ComPact: NSXm fixed with differential protection - control: switch - vertical installation


Enclosure/Cabinet Description:

  • Floor cabinet width 600 mm
  • Wall cabinet width 600 mm
  • Enclosure cabinet width 650 mm depth 400 mm
  • Packing cabinet width 555 mm
