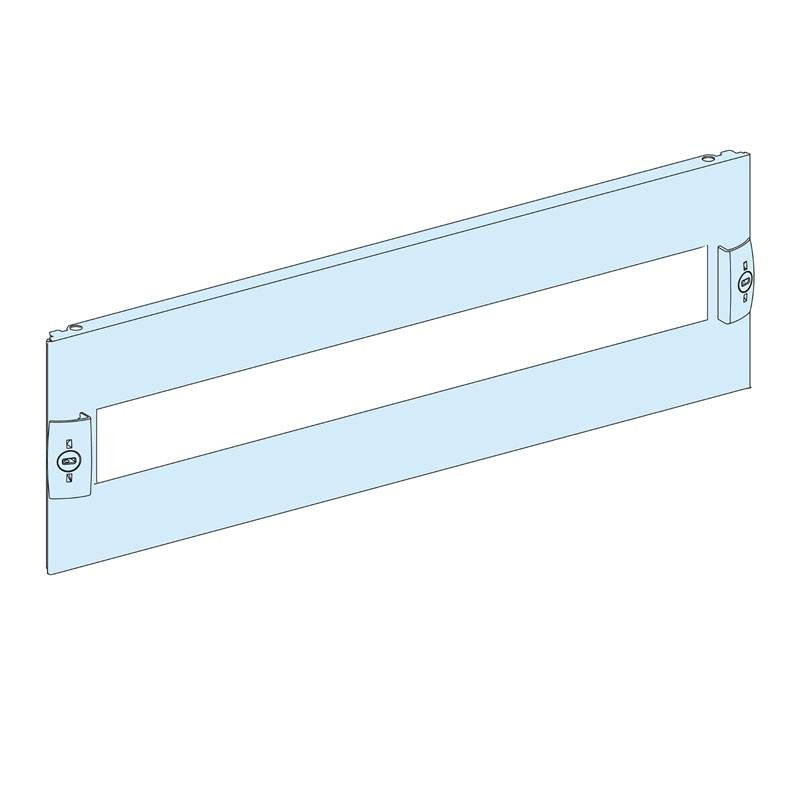

Schneider PrismaSet W600/650 3M LVS03203 Modular Front Plate

Schneider
Schneider
SNR LVS03203 3606481866325

Schneider PrismaSet modular face plate with the following features:

  • Product range: PrismaSet G - PrismaSet P
  • Product type or component: face plate
  • Type of face plate: modular cutout
  • Number of vertical modules 50 mm:3
  • Product Certifications: ASTA
  • Material: steel
  • Surface finish: textured matte
  • Protective treatment: electrophoresis treatment and heat-cured polyester epoxy powder

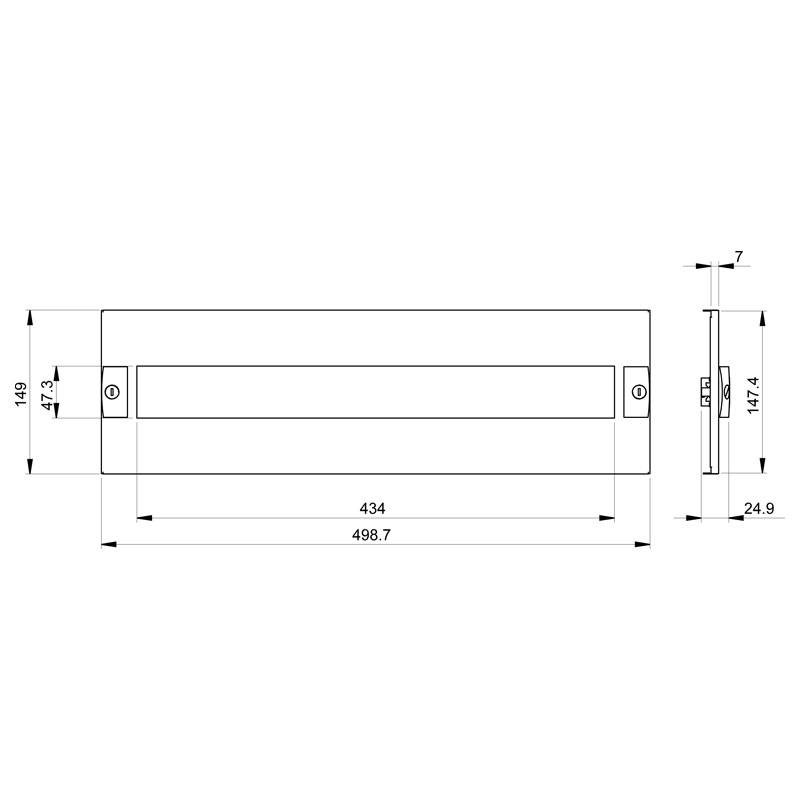

  • Dimensions: height 150 mm - width 500 mm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet W600/650 3M LVS03203 Modular Front Plate
€21.51
€21.51

€21.51
Tax included
Calculate shipping cost
Items Available: 95
Further availability of the manufacturer
€21.51

Buy it within and receive it from Tuesday, 23 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Range compatibility:

  • PrismaSeT G Cabinet
  • PrismaSeT P Wardrobe
  • PrismaSeT Pack 160 Wardrobe
  • PrismaSeT Pack 250

Device installed:

  • TeSys: fixed GV2L
  • TeSys: fixed GV2LE
  • TeSys: fixed GV2ME
  • TeSys: fixed GV2P
  • TeSys: fixed GV2RTn - Vigilohm: IM20 - Vigilohm: IM20H - Vigilohm: fixed IM9 - Vigilohm: IM9 - Vigilohm: fixed IM9-OL - Vigilohm: IM9-OL
  • Acti 9: measuring device
  • Multi 9: measuring device
  • Acti 9: fixed modular device <= 40A
  • Multi 9: fixed modular device <= 40A - Vigirex: RH10 - Vigirex: RH197M - Vigirex: RH21 - Vigirex: RH99

Description of poles:

  • 9 x 3P: support for modular rail: GV2L
  • 9 x 3P: bracket for modular rail: GV2LE
  • 9 x 3P: bracket for modular rail: GV2ME
  • 9 x 3P: holder for modular rail: GV2P
  • 9 x 3P: holder for modular rail: GV2RTn
