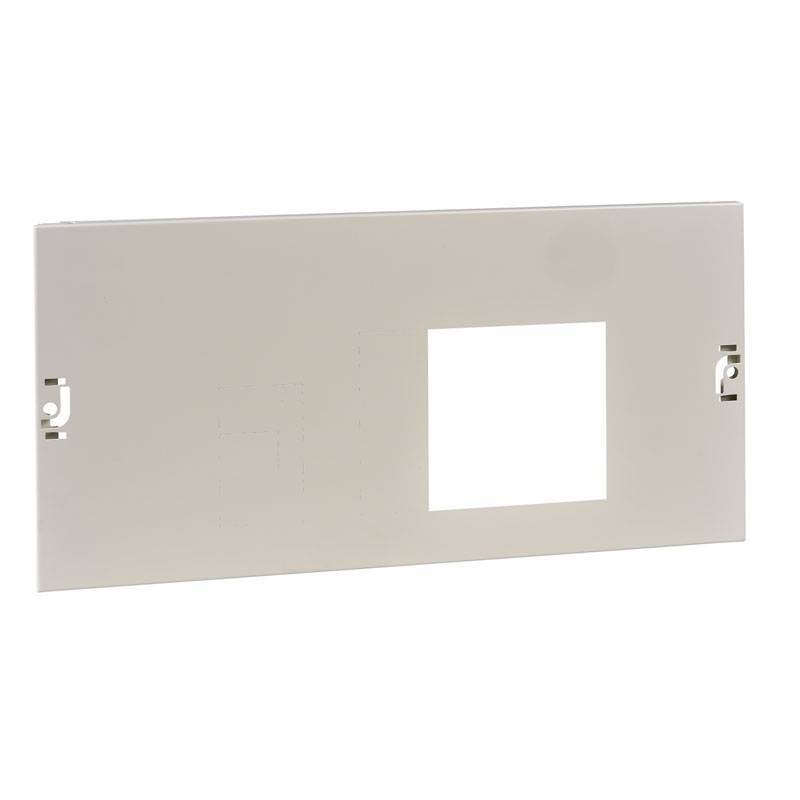

Schneider PrismaSet P front plate NSX400/630 fix dir 4P 5M LVS03644

Schneider
Schneider
SNR LVS03644 3606481866127

Schneider PrismaSet P NSX400/630 fix dir 4P face plate with the following features:

  • Product range: PrismaSet P
  • Product type or component: Front plate
  • Compatibility range: PrismaSeT - PrismaSeT P box
  • Face plate type: Blanked
  • Operating position: Horizontal
  • Enclosure Description: Cabinet width 650 mm depth 400 mm
  • Connection position: Direct connection
  • Number of vertical modules (50 mm): 5
  • Reference Standards: IEC 61439-2 - IEC 61439-1
  • Product certifications: STARE
  • Surface finish: Matt textured
  • Protection treatment: Electrophoresis treatment and cured polyester epoxy powder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Schneider PrismaSet P front plate NSX400/630 fix dir 4P 5M LVS03644
€49.77
€49.77

€49.77
Tax included
Calculate shipping cost
Items Available: 26
Further availability of the manufacturer
€49.77

Buy it within and receive it from Thursday, 25 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Device installed:

  • Compact: fixed NSX400 without differential protection - control: lever - horizontal installation
  • Compact: fixed NSX630 without differential protection - control: lever - horizontal installation
  • Easypact: fixed CVS400 without differential protection - control: direct front rotary operation - horizontal installation
  • Easypact: fixed CVS630 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: plug-in NSX400 without differential protection - control: lever - horizontal installation
  • Compact: fixed NSX400 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX400 without differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX400 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: plug-in NSX400 without differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX630 without differential protection - control: lever - horizontal installation
  • Compact: fixed NSX630 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX630 without differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX630 without differential protection - control: direct front rotary operation - horizontal installation
  • Compact: plug-in NSX630 without differential protection - control: motor mechanism - horizontal installation
  • Easypact: fixed CVS400 with differential protection - control: direct front rotary operation - horizontal installation
  • Easypact: fixed CVS630 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX400 with differential protection - control: lever - horizontal installation
  • Compact: plug-in NSX400 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX400 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX400 with differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX400 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: plug-in NSX400 with differential protection - control: motor mechanism - horizontal installation
  • Compact: fixed NSX630 with differential protection - control: lever - horizontal installation
  • Compact: plug-in NSX630 with differential protection - control: lever - horizontal installation
  • Compact: fixed NSX630 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: fixed NSX630 with differential protection - control: motor mechanism - horizontal installation
  • Compact: plug-in NSX630 with differential protection - control: direct front rotary operation - horizontal installation
  • Compact: plug-in NSX630 with differential protection - control: motor mechanism - horizontal installation

Description poles:

  • 1 4P: support mounting plate: CVS400 horizontal installation
  • 1 4P: mounting plate support: CVS630 horizontal installation
  • 1 4P: mounting plate support: NSX400 horizontal installation
  • 1 4P: mounting plate support: NSX630 horizontal installation

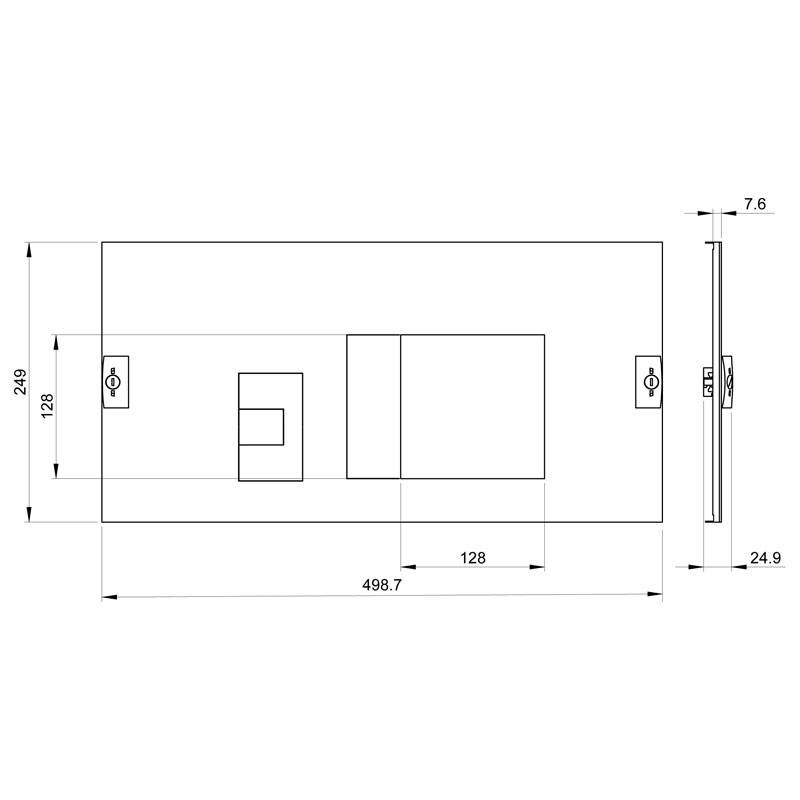

Dimensions and weight:

  • Height: 250mm
  • Weight: 940 grams

There are no reviews

Data sheet

Type:
Plates
Modules:
5
