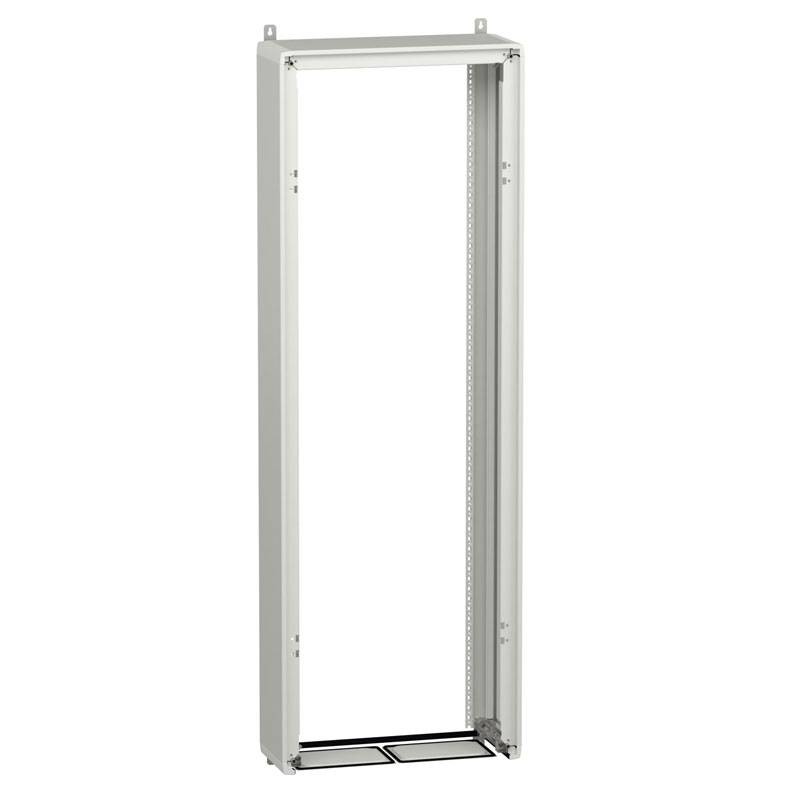

Schneider PrismaSeT Box G L600mm H1750mm 33M IP55 LVS08309
SNR LVS08309
3606481876560
Schneider PrismaSeT G L600mm H1750mm 33M box without socket with the following features:
- Product range: PrismaSet G
- Device application: low-voltage electrical distribution
- Description of enclosure/cabinet: Floor standing cabinet - width 600mm
- Can be combined side by side
- Number of vertical modules (50 mm): 33
- Number of 18mm modules per row: 24
- Degree of protection: IP55
- Rated insulation voltage: 1000V on the rear main busbars according to IEC 61439-2
- Rated current: 630A at 40°C in accordance with IEC 61439-2
- Short-circuit current: 50 kA
- Rated short-time withstand current: 25 kA 1 s complying with IEC 61439-1
- Rated peak withstand current: 53 kA complying with IEC 61439-1
€1,099.85
Items Available: 10
: 2
Specifications:
- Housing type: Functional enclosure delivered as a kit
- Enclosure: weatherproof
- Indoorenclosure
- Metalcasing
Kit composition:
- Uprights
- Back plate
- 2 side panels
- Upper plate
- Bottom plate
- 4 mounting brackets
Features:
- Electrical insulation class: Class I
- Material: treated sheet steel
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
- Surface finish: Matt textured

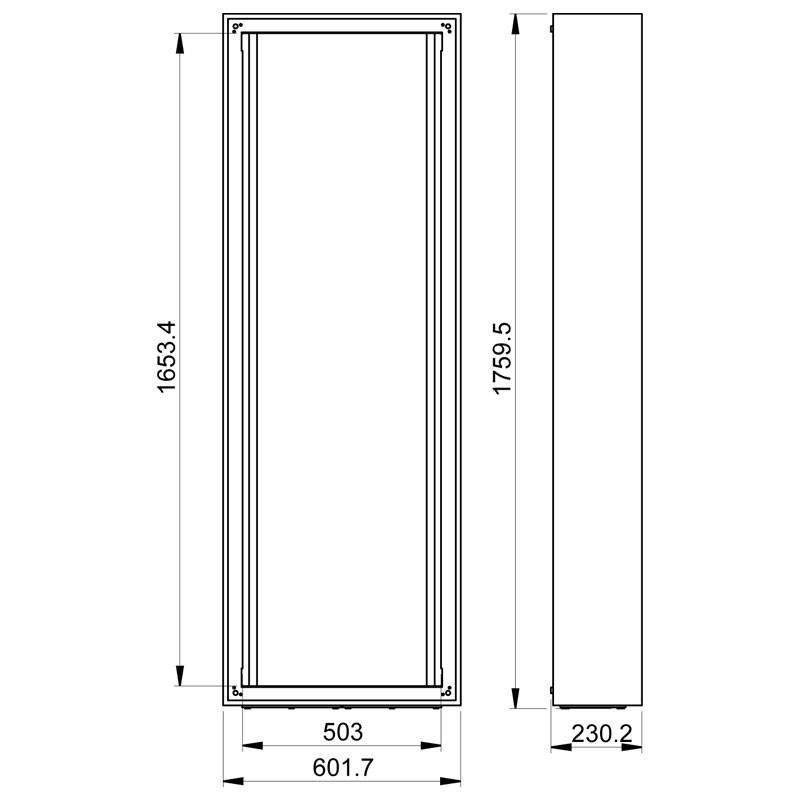

- Dimensions and weight: height 1800 mm with plinth - width 575 mm - depth 260 mm - weight: 31.2 kg
There are no reviews
Data sheet
- Type: Mailbox
- Modules: 33
- Degree of protection: IP55
