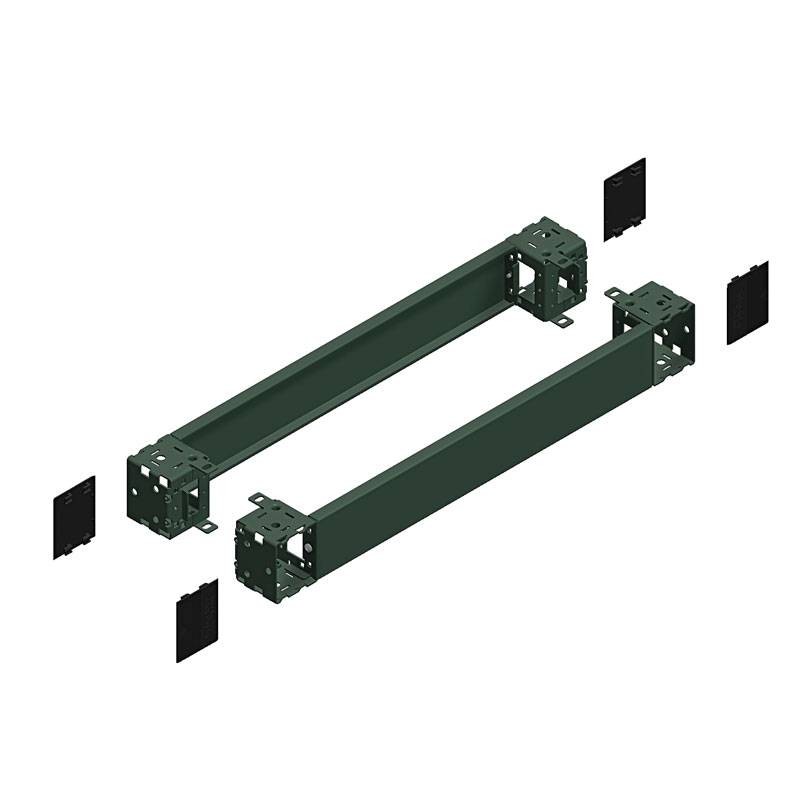

Schneider angular Spacial SF/SM 1000x100 mm front-back plinth NSYSPF10100
SNR NSYSPF10100
3606485126586
Schneider angular Spacial SF/SM front-back plinth with the following features:
- Type of product or component: Front plinth
- Fastening type With fastener - on structure position
- Surface finish: epoxy-polyester powder
- Permissible permanent load: 1300 kg
- IP degree of protection: IP30 (complete baseboard)
- IK degree of protection: IK10
€134.08
Items Available: 1
Strengths:
- Front plinth for Spacial CRN, S3D, SF, SM, SD. 99 x 1000 mm
- Multifunctional accessory for cassettes/cabinets
- Mounting bracket for plinth side panels
- Permissible permanent load: 1300 kg
- Mounting by fasteners
- Polyester-based epoxy powder surface finish
- RAL 7022 gray
- Complete baseboard IP30, IK10
Range compatibility:
- Space Space SF
- Space Space SM Space Space SD
- Space Space S3D Space Space Space CRN
Device composition:
- Fasteners
- 4 corner cover
- 1 front panel
- 1 back panel
- 4 corner
Dimensions:
- Height: 100 mm
- Nominal Width: 1000 mm
There are no reviews
Data sheet
- Type: Panels
- Degree of protection: IP30
