Fixed Bottom Plate NSX-INS Schneider PrismaSeT P 630A 5M LVS03452
SNR LVS03452
3606481874375

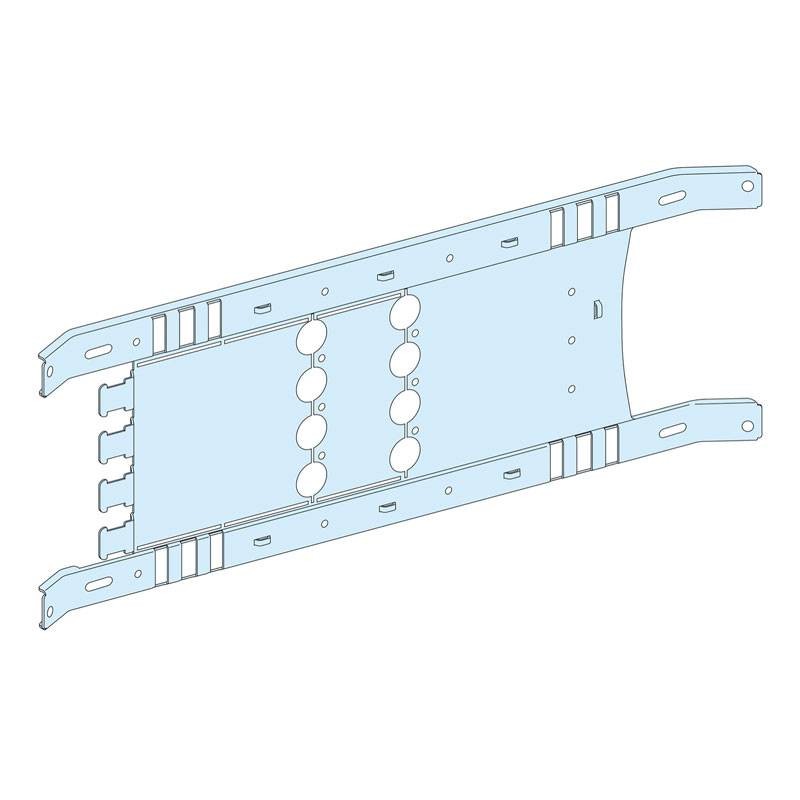

NSX-INS Schneider PrismaSeT P fixed bottom plate with the following features:
- Product range: PrismaSeT P
- Product type or component: mounting plate
- Compatibility range: PrismaSeT - PrismaSeT P cubicle
- Reference Standards: IEC 61439-2
- Product Certifications: ASTA
- Material: Sheet steel
- Protection treatment: Electrophoresis treatment and cured polyester epoxy powder
- Surface finish: matte textured
€190.56
Items Available: 29
: 2
Device installed:
- Easypact: fixed CVS400 without differential protection - control: lever - horizontal installation
- Easypact: fixed CVS630 without differential protection - control: lever - horizontal installation
- Easypact: fixed EZC400 - Easypact: fixed CVS400 without differential protection - control: lever - horizontal installation
- Easypact: fixed CVS630 without differential protection - control: lever - horizontal installation
- Easypact: fixed EZC400 - control: lever - horizontal installation
- Easypact: fixed EZC630 - control: lever - horizontal installation
- Compact: fixed INS320...400 - control: direct front rotary operation - horizontal installation
- Compact: fixed INS500...630 - control: direct front rotary operation - horizontal installation
- Compact: fixed INV320...400 (no Italy) - control: direct front rotary maneuvering - horizontal installation
- Compact: fixed INV500...630 (no Italy) - control: direct front rotary operation - horizontal installation
- Compact: fixed NSX400 without differential protection - control: lever - horizontal installation
- Compact: fixed NSX630 without differential protection - control: lever - horizontal installation
- Easypact: fixed CVS400 with differential protection - control: lever - horizontal installation
- Easypact: fixed CVS630 with differential protection - control: lever - horizontal installation
- Compact: fixed NSX400 with differential protection - control: lever - horizontal installation
- Compact: fixed NSX630 with differential protection - control: lever - horizontal installation
Description poles:
- 1 4P: fixed CVS400 horizontal installation
- 1 4P: fixed CVS630 horizontal installation
- 1 4P: fixed EZC400 horizontal installation
- 1 4P: fixed EZC630 horizontal installation
- 1 3P: fixed INS320...400 horizontal installation
- 1 4P: fixed INS320...400 horizontal installation
- 1 3P: fixed INS500...630 horizontal installation
- 1 4P: fixed INS500...630 horizontal installation
- 1 3P: fixed INV320...400 (no Italy) horizontal installation
- 1 4P: fixed INV320...400 (no Italy) horizontal installation
- 1 3P: fixed INV500...630 (no Italy) horizontal installation
- 1 4P: fixed INV500...630 (no Italy) horizontal installation
- 1 4P: fixed NSX400 horizontal installation
- 1 4P: fixed NSX630 horizontal installation
Number of vertical modules (50mm):
- 5 modules: CVS400 without differential protection , direct in 650 mm cabinet
- 5 modules: CVS630 without differential protection , direct in 650 mm cabinet
- 5 modules: EZC400, direct in 650 mm cabinet
- 5 modules: EZC630, direct in 650 mm cabinet
- 5 modules: INS320...400, direct in 650 mm cabinet
- 5 modules: INS500...630, direct in 650 mm cabinet
- 5 modules: INV320...400 (no Italy), direct in 650 mm cabinet
- 5 modules: INV500...630 (no Italy), direct in 650 mm cabinet
- 5 modules: NSX400 without differential protection , direct in 650 mm cabinet
- 5 modules: NSX630 without differential protection , direct in 650 mm cabinet
- 5 modules: CVS400 with differential protection , direct in 650 mm cabinet
- 5 modules: CVS630 with differential protection , direct in 650 mm cabinet
- 5 modules: NSX400 with differential protection , direct in 650 mm cabinet
- 5 modules: NSX630 with differential protection , direct in 650 mm cabinet

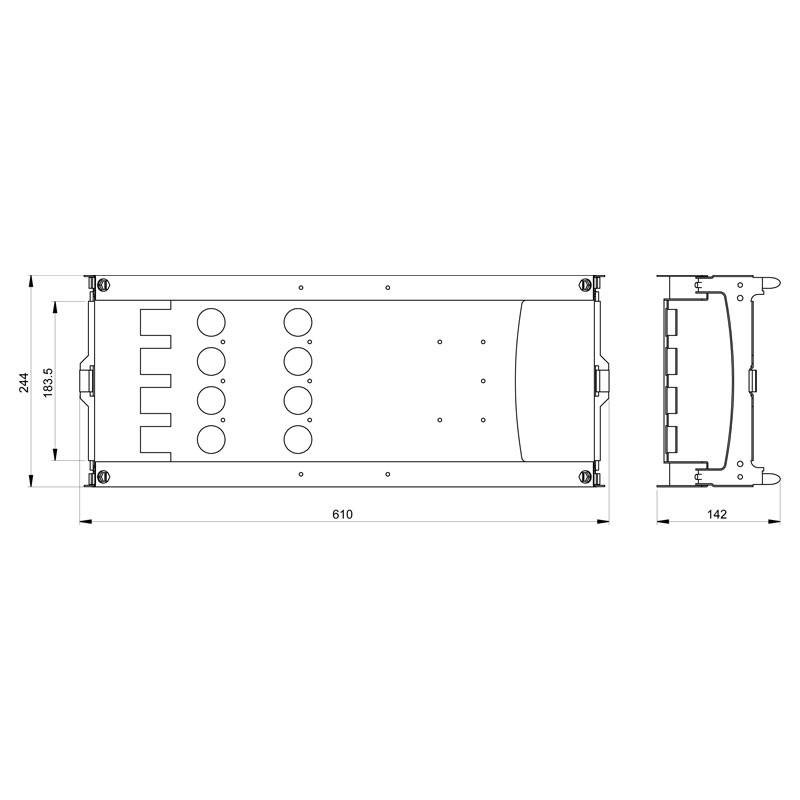

Dimensions and weight:
- Height: 250 mm
- Width: 650 mm
- Weight: 1.76 kg
There are no reviews
Data sheet
- Type: Plates
- Modules: 5
