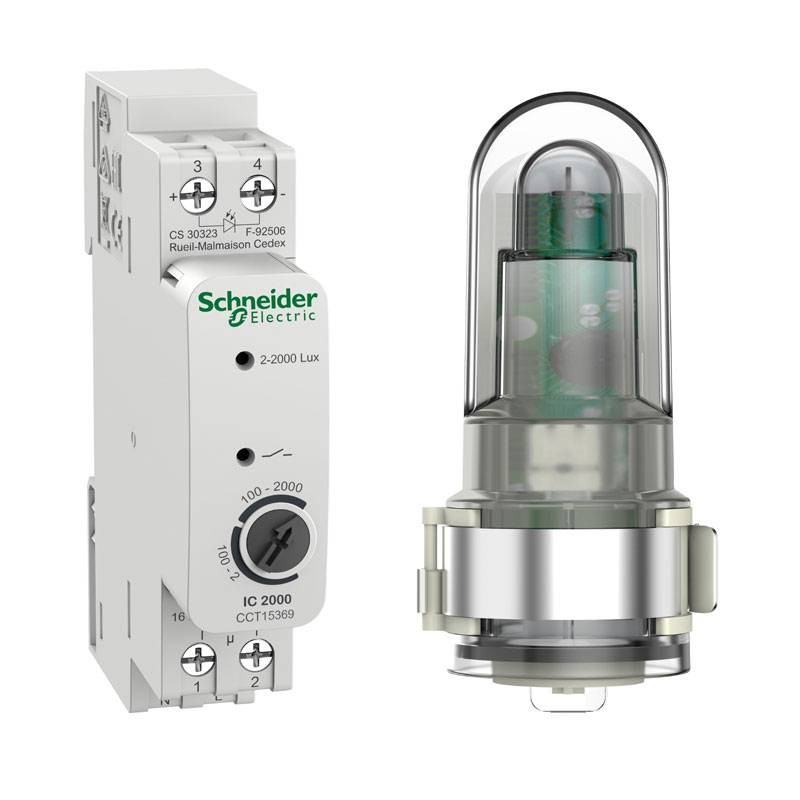

Schneider Acti 9 IC2000 outdoor twilight switch CCT15369
SNR CCT15369
3606489524616
Schneider Acti 9 IC2000 outdoor twilight switch with the following features:
- Power consumption in W: 0.5 W standby
- Rated operating voltage
- Ue: 230 V "AC" +10 % -15 % at "50/60 Hz"
- Maximum switching current: 10 A - 250 V "AC" pf = 0.6 - 16 A - 250 V "AC" pf = 1
- Minimum switching current: 10 mA 230 V AC - 100 mA 24 V AC/DC
- Degree of protection: IP20 - IP55 (sensor)
- Insulation class: II
- Output type: dry contact
€65.83
Items Available: 8
: 2
Features:
- Number of ways: 1
- Power consumption in W: 0.5 W standby
- Accuracy: +/-0.25 s/day 25 °C
- Timing: 20 s on - 80 s off
- Terminal connections: 1 2.5 mm² screw terminals solid or flexible with sleeve - 2 0.52.5 mm² screw terminals solid or flexible
- Ambient operating temperature: -30/55 °C
- Ambient air temperature for storage/transportation: -30/70°C
- Relative humidity: 90 %, non-condensing
- Dimensions: height 85.5 mm width 18 mm depth 67 mm
- Weight: 111 grams
Matériel de qualité à un prix nettement inférieur aux circuits de distributions secondaires et professionnels sur un même code fabricant.
Data sheet
- Type: Twilight Switches
- Voltage: 230V
- Degree of protection: IP20
