Dual Split Samsung Mini Windfree 4-way Cassette Air Conditioner 9000+9000BTU 2.6+2.6kW 60x60
KIT SMSCASS99
8806090290138
The Samsung Mini WindFree Dual Split 9000+9000 BTU (2.6+2.6 kW) is a 4-way cassette air conditioner (60x60 cm) that combines energy efficiency, advanced comfort and compact design. With WindFree™ technology, it eliminates annoying direct air jets, spreading coolness through 9000 microholes. Ideal for offices, stores, hotels and homes, it ensures even and quiet air conditioning with low consumption.

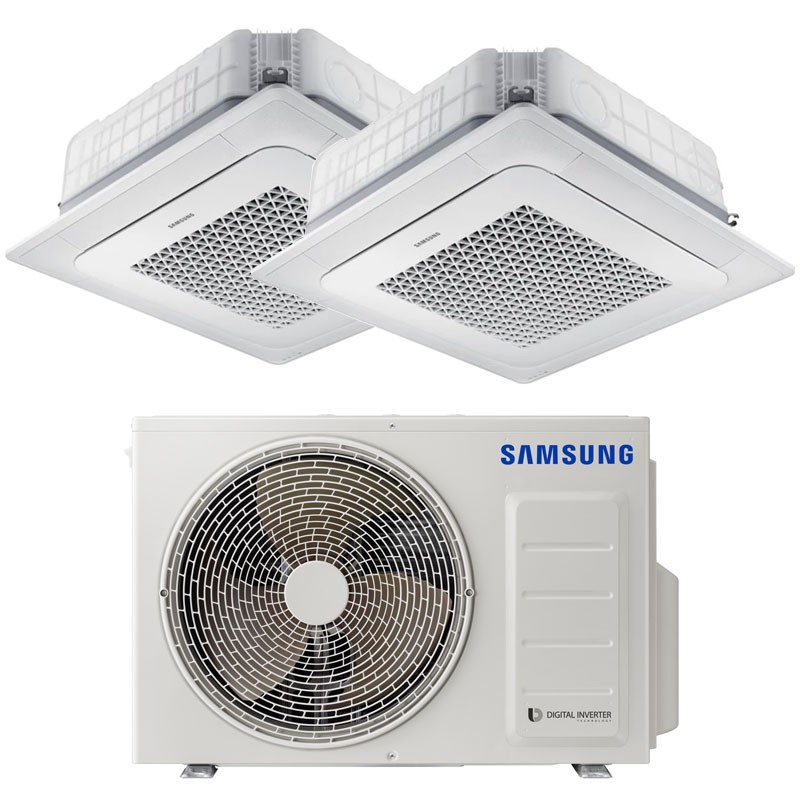

The kit includes:
- 2 Cassette Indoor Units 2.6kW 4-Way (AJ026TNNDKG/EU)

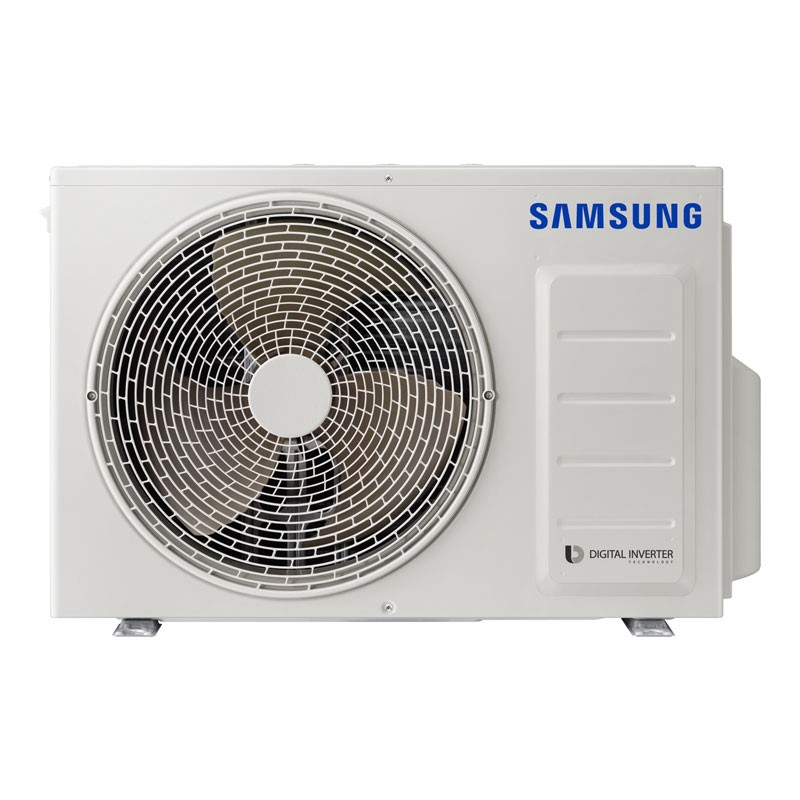

- 1 Outdoor Unit 5.0kW (AJ050TXJ2KG/EU)
- 2 Panels with reduced dimensions 60x60cm PC4SUFMAN
Compatible controls to be purchased separately are as follows:
- Simplified flush control MWR-SH11N
- MWR-WG00KN wired switch.
- Nasa MIM-H04EN Wi-Fi kit for remote control
For two rooms of approx. 27m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€2,825.97
Items Available: 4
: 2
Air conditioners of the same series
Frequently bought together
Samsung Cassette Mini: Advanced Comfort with WindFree Technology
The WindFree system is the perfect solution for those who want optimal comfort without annoying direct drafts. Thanks to its 9000 micro-holes, air is distributed naturally, creating a comfortable environment free of temperature fluctuations. In addition, the air velocity of less than 0.15 m/s ensures uniform cooling without creating discomfort.
Elegant Design and Installation Versatility

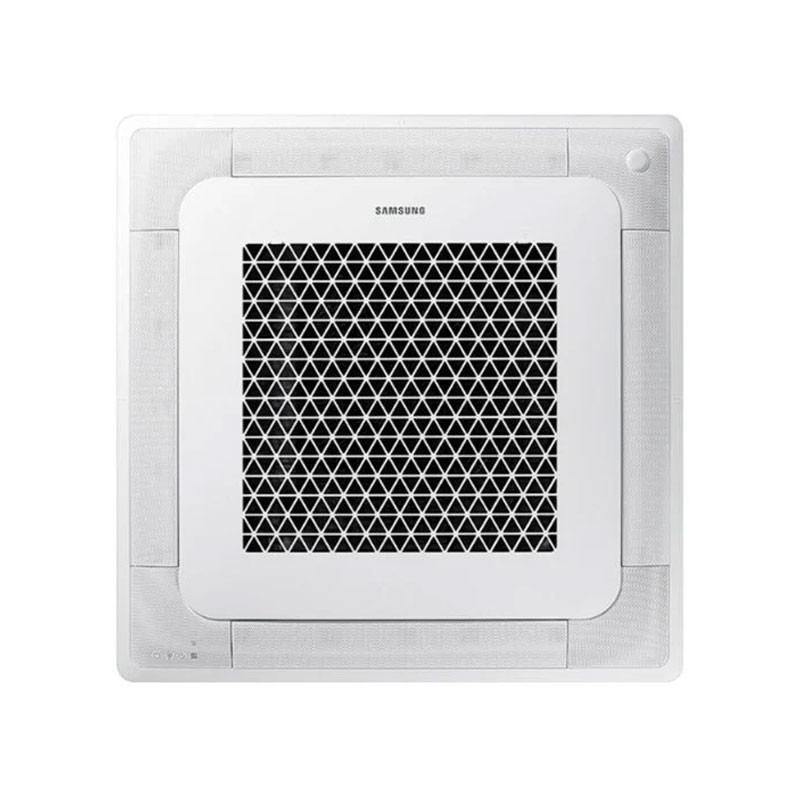

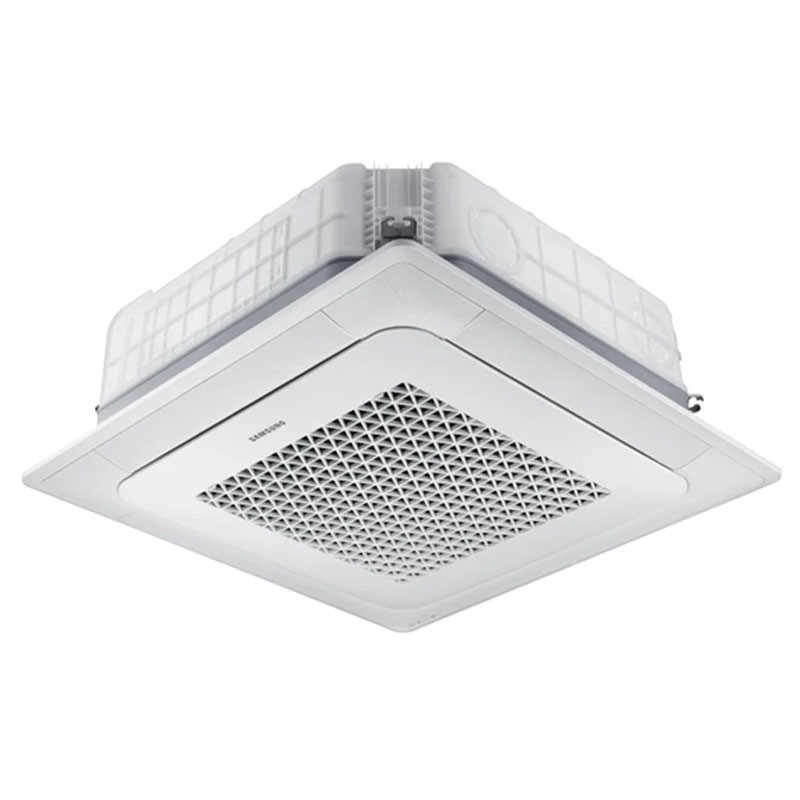

The Mini WindFree 4-way cassette features a sleek and compact design (60x60 cm), perfect for integration into suspended ceilings without altering the aesthetics of the room. The triangular mesh panel promotes even air distribution, while the possibility of installation in a central position ensures optimal coverage.
Breathe Clean Air with the Antibacterial Filter
To ensure healthier air, Samsung has equipped this unit with an antibacterial filter capable of removing impurities and allergens. The filter is easily removable for periodic cleaning, helping to improve indoor air quality.
Energy Efficiency and Reduced Consumption
The Mini WindFree air conditioner uses R32 refrigerant gas, which is more environmentally friendly and efficient than traditional gases. Thanks to the Fast Cooling mode, the desired temperature is reached quickly and then automatically switched to WindFree mode, reducing energy consumption and maintaining constant comfort.
Quietness and Smart Functions
With a noise level of just 24 dB(A), the Samsung Mini WindFree ensures extremely quiet operation, ideal for offices, bedrooms and commercial environments. It also comes with advanced features such as independent control of the fins and an Autodiagnostic mode, which alerts you to any anomalies for easier maintenance.
Key features of the Samsung Windfree Mini
- WindFree technology with 9000 microholes for even air diffusion without direct drafts
- Cooling capacity of 2.5+2.5 kW, ideal for rooms up to 25 square meters.
- Compact 60x60 cm design, perfect for suspended ceiling installations.
- Antibacterial filter for cleaner, healthier air.
- Independent fin control for customized airflow distribution.
- Ultra quiet operation with only 24 dB(A).
Samsung Windfree Dual Cassette Specifications
Indoor Units 9000BTU
| Feature | Description |
|---|---|
| Type/Series | 4-Way Cassette Mini WindFree |
| Cooling Capacity | 2.6 kW |
| Heating Capacity | 2.9 kW |
| Dimensions (WxHxD) | 575 x 250 x 575 mm |
| Weight | 11.5 kg |
| Max Air Flow Rate | 9 m³/min |
| Sound Pressure | 33 dBA |
| Panel Dimensions (Integrated) | 620 x 57 x 620 mm |
| Gas Connection Piping | Ø 3/8" - 9.52 mm |
| Piping Liquid Connection | Ø 1/4" - 6.35 mm |
| Sound Power (Min - Max) | 49 dB(A) |
| Ideal for Environments | Up to 25 m² |
Outdoor Unit 5.0kW
| Feature | Description |
|---|---|
| Refrigerant Type | R32 |
| Max Matching Indoor Units | 2 |
| Rated Capacity (Cooling / Heating) | 5.0 / 5.6 kW |
| Sound Pressure (Max) (Cooling/Heating) | 46 / 47 dBA |
| Sound Power (Max) | 61 dBA |
| Operating Range Cooling | -10° ~ 46°C |
| Operating Range Heating | -15° ~ 24°C |
| Power Supply | 220~240V / 50Hz / 1 Phase |
| External Unit Dimensions (WxHxD) | 790 x 548 x 285 mm |
| Weight | 33 Kg |
| Liquid Connection Piping | Ø 2x6.35 mm (1/4") |
| Gas Connection Piping | Ø 2x9.52 mm (3/8") |
| Max Distance between Indoor and Outdoor Units | 20 meters |
| Minimum Piping Length per Unit | 3 meters |
| Total Max Piping Length | 30 meters |
| Max Piping Length (Without Adding Gas) | 30 meters |
| Max height difference Indoor-Exdoor Unit | 15 meters |
| Max height difference between indoor and outdoor unit | 7.5 meters |
| Refrigerant Charge | 1180 g |
| tCO₂e | 0,80 |
There are no reviews
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 9+9 BTU
- System: Dualsplit
- Room Size: 27m²+27m²
- Energy class: A++
- Series: Mini Windfree
