The new Samsung Cebu Wi-Fi wall presents you with soft and elegant shapes that recall those in the range WindFree 2020 (but without the panel perforated, why not with technology WindFree): the corners are rounded, the front panel wraps around the unit with delicacy, the large black display stands out shining on the right side; the very compact dimensions give it a lightness that makes installation and maintenance more simple. The blower outlet, and more inclined with respect to the traditional models and a fan bigger to ensure that the air is cooled and introduced into the environment in a more rapid, more uniform and more powerful, to reach every corner of the room.

The internal drive is Samsung Cebu free Wi-Fi is equipped with the air filter Easy Filter+ that retains all of the dust present in the air returning clean air; the filter is easy to remove for periodic cleaning which is carried out in a fast and convenient way.



Advantages:

• Energy class A++/A+
• Control Wi-Fi built-in remote control is possible thanks to the app SmartThings, which allows the control of devices Samsung and compatible
• Function Artificial Intelligence
• Control via App SmartThings and using voice assistant
• Super quiet (21 dBA)
• Function Artificial Intelligence: the unit analyzes the use of the user, and replication of the most appropriate modes according to the situation
• Compatibility Multisplit



Technical characteristics



Cooling:

• Capacity Min/Max: 6800 (13808090) W
• Power consumption: Min/Max 1880 (4302670) W
• SEER 7,56
• Energy efficiency class: A++
• EER 3,62
• Annual energy consumption indicative kW/315
• Internal drive capacity TO 2800W
• Capacity indoor unit B 4000W

Heating:

• Capacity Min/Max: 8000 (14009200) W
• Power consumption Min./Max 1990 (3802800) W
• SCOP: 4,23
• Class seasonal energy efficiency A+
• COP 4.02
• Annual energy consumption indicative: kWh/a 1683
• Internal drive capacity AT 3200W
• Capacity indoor unit B 4800W

Features 1 Indoor Unit 5.0 KW (AR18TXFYAWKNEU):

• Dimensions: (Wxhxd) 1055x299x215mm
• Weight 12.5 Kg
• Piping gas connection ø (inch. - mm.) 1/2 - 12.70
• Piping connection liquid diameter (inch. - mm.) 1/4 - 6.35
• sound pressure level (Cooling/Heating) dBa 25
• Sound Power level dBA 58

Features 1 Indoor Unit 3,5 KW (AR12TXFYAWKNEU):

• Dimensions: (Wxhxd) 820x299x215mm
• Weight 11Kg
• Piping gas connection ø (inch. - mm.) 3/8 - 9.52
• Piping connection liquid diameter (inch. - mm.) 1/4 - 6.35
• sound pressure level (Cooling/Heating) dBa 19
• Sound Power level dBA 56

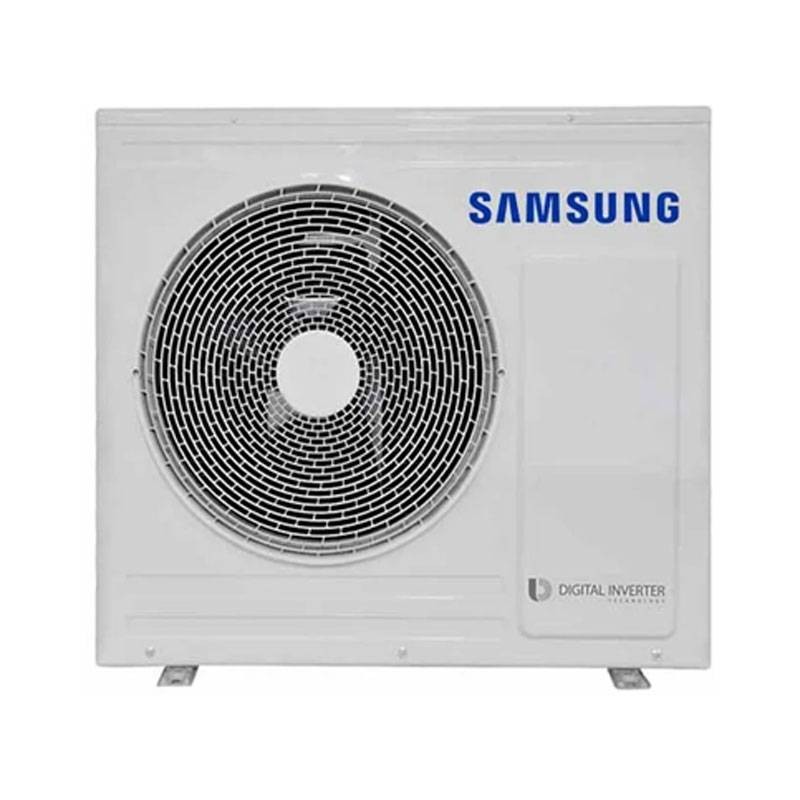

Features Outdoor Unit (AJ068TXJ3KG/EU):

• Dimensions: (Wxhxd) 888x798x310mm
• Weight 57,5 Kg
• Sound Pressure level dBa 50
• Sound Power level dBA 64
• Power supply single Phase 220-240 / 50Hz
• Piping Liquid 3 x 6.35 (1/4”)
• Piping Gas 9.52 (3/8”) + 2 x 12.70 (1/2”)
• Length piping max/min 30/3 m
• Height difference Max between units indoor/outdoor 15 meters
• Type Of Refrigerant Gas R32
