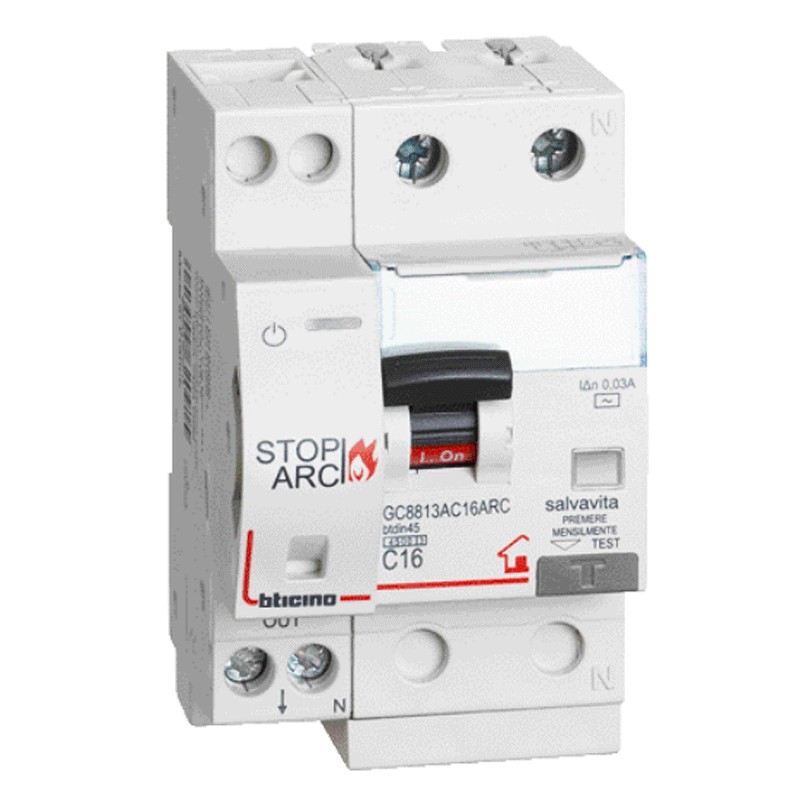

Bticino BTDIN STOP ARC with differential 16A 1P+N 4500A 0.03 GC8813AC16ARC
BTI GC8813AC16ARC
8005543620915
Bticino BTDIN STOP ARC with earth leakage circuit breaker:
- Current In 16A
- Poles 1P+N
- Interrupting capacity 4500A
- Voltage 230/240 Vac
- Differential current Idn 0.03
- 3 Modules
The new device is capable of detecting arcing produced by insulation failure, wire breakage, or earth leakage currents.
€94.81
Out of stock
HOW DOES IT WORK? Thanks to a microprocessor, BTicino's STOP ARCs are able to:
- detect both parallel arcs and arcs in series
- distinguish dangerous from non-hazardous arcs.
BTDIN STOP ARC is a one-piece product that is factory assembled. This ensures quality and eliminates the risk of errors during assembly.
BTDIN STO P ARC is very easy to install in the switchboard. It can be mounted in place of a circuit breaker and connected in the same way.
Features:
- Reference Standard IEC 62606
- Voltage 230-240 Vac
- Current In 16A
- Differential current Idn 0.03A
- Interrupting capacity Icn 6kA
- Modules 3
- Poles 1P+N
- Degree of protection IP20/IP40
- Height 83mm
- Width 54mm
- Depth 77.65mm
- IT Series Btdin
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 3
- Breaking capacity: 6KA
- Differential current : 0.03A
- Degree of protection: IP40
- Amps: 16A
- Circuit Protections: Residual current devices
