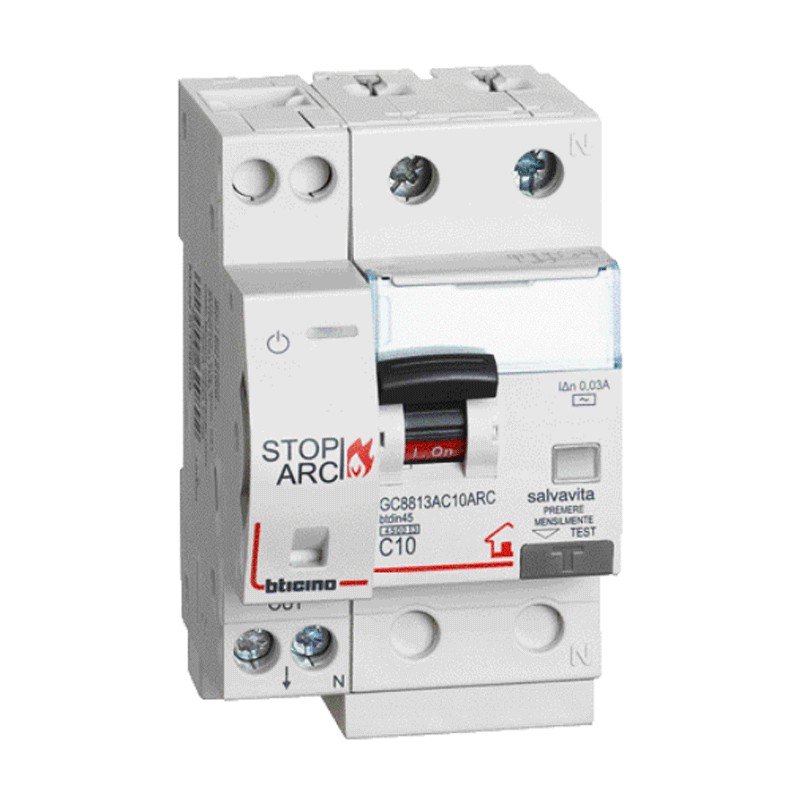

Bticino BTDIN STOP ARC with differential 10A 1P+N 4500A 0.03 GC8813AC10ARC
BTI GC8813AC10ARC
8005543620892
Bticino BTDIN STOP ARC with earth leakage circuit breaker:
- Current In 10A
- Poles 1P+N
- Interrupting capacity 4500A
- Voltage 230/240 Vac
- Differential current Idn 0.03
- 3 modules
The new device capable of detecting the triggering of electric arc produced by insulation failure, wire breakage or earth leakage current.
€93.01
Items Available: 1
HOW DOES IT WORK? Thanks to a microprocessor, BTicino's STOP ARCs are able to:
- detect both parallel and series arcs
- distinguish dangerous from non-hazardous arcs
BTDIN STOP ARC is a one-piece product that is factory assembled. This ensures quality and eliminates the risk of errors during assembly.
BTDIN STO P ARC is very easy to install in the switchboard. It can be mounted in place of a circuit breaker and connected in the same way.
Features:
- Reference Standard IEC 62606
- Voltage 230-240Vac
- Current In 10A
- Differential current Idn 0.03A
- Interrupting capacity Icn 6kA
- Modules 3
- Poles 1P+N
- Degree of protection IP20/IP40
- Height 83mm
- Width 54mm
- Depth 77.65mm
- IT Series Btdin
There are no reviews
Data sheet
- Voltage: 230/240VAC
- Modules: 3
- Poles: 1P+N
- Differential current : 0.03A
- Degree of protection: IP40
- Amps: 10A
- Circuit Protections: Residual current devices
