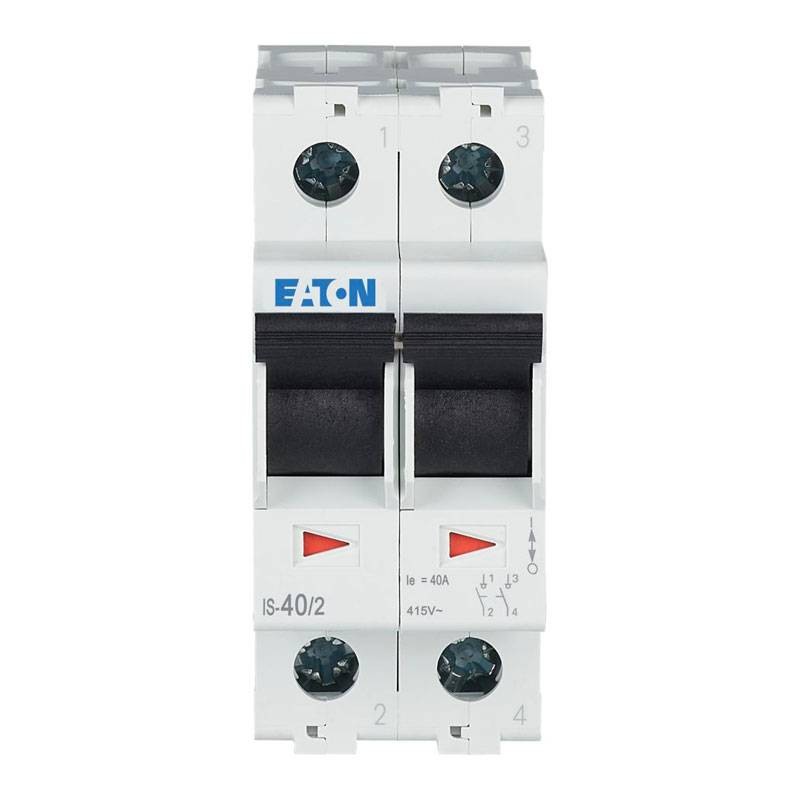

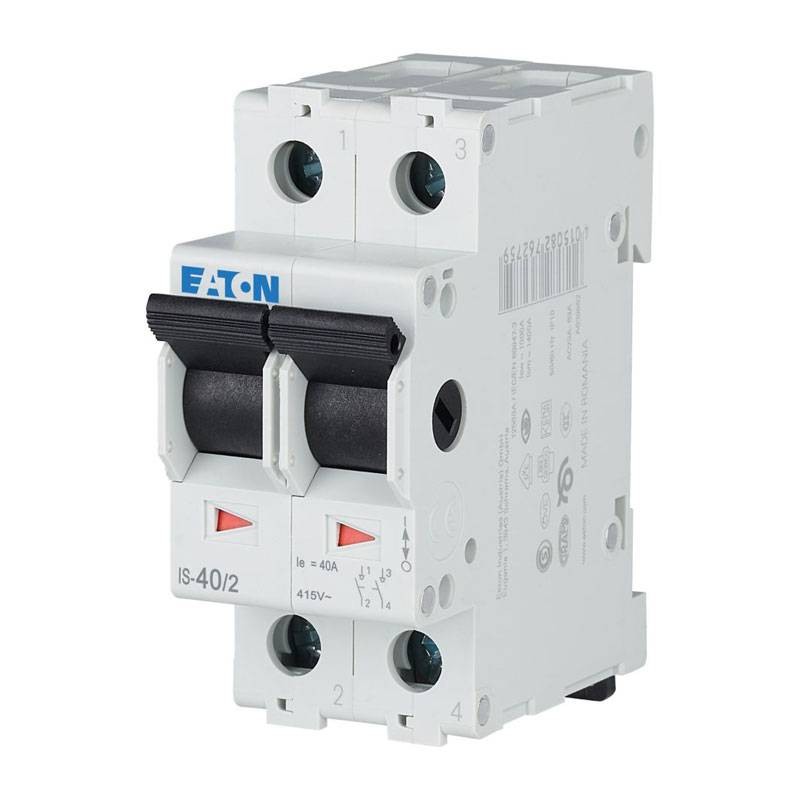

Eaton Disconnector 40A 415V 2P 2M IP40 276271
EAO 276271
4015082762711
Eaton disconnect switch for alternating current up to 415V. DIN rail mounting 2 modules, ideal for industrial and railway applications, with the following features:
-
Rated current: 40 amps
-
Operating voltage: 240 to 415V AC
-
Number of poles: 2P (double-pole)
-
Contacts: 2 NO + 2 NC
-
Switching capacity: 12.5 kA
-
Short-term current: 1 kA
-
Degree of protection: IP40
-
Installation: 2 modules on DIN rail
€24.94
Items Available: 23
: 2
Eaton Disconnector, safety and reliability for advanced installations
The Eaton disconnect switch is designed to provide safe isolation of AC electrical circuits, up to 415V. With its highly wear-resistant contacts, it is perfect for industrial applications and installations on railway rolling stock, where robustness and reliability are critical.
Bipolar configuration and dual contacts
The device is double-pole (2P) with two normally open (NO) and two normally closed (NC) contacts, thus offering flexible electrical circuit management. The rated operating current is 40 A, while the switching capacity reaches 12.5 kA, making it suitable even for high-power circuits.
Easy installation on DIN rail
With a footprint of 2 modules and compact size, it can be easily mounted in standard electrical panels. The built-in depth of 69.5 mm facilitates its integration even in tight spaces, while maintaining maximum functionality.
Durable and protected in all conditions
The disconnector is certified with IP40 degree of protection, suitable for protected indoor environments. It operates properly in a temperature range of -5 to +40 degrees, offering operational stability even in changing conditions.
Technical Specifications Eaton Disconnect Switch
Technical Data
| Feature | Value |
|---|---|
| Rated current | 40 A |
| Rated operating voltage | 240 TO 415 V AC |
| Type of voltage | Alternating current |
| Switching capacity | 12.5 kA |
| Short duration current (Icw) | 1 kA |
| Number of poles | 2P (double-pole) |
| Contacts | 2 NO + 2 NC |
| Degree of protection | IP40 |
| Operating temperature range | -5/+40 degrees |
| Width | 35.4 mm (2 modules) |
| Height | 80 mm |
| Depth | 60 mm (integrated 69.5 mm) |
Applications
| Areas of use | Description |
|---|---|
| Main uses | Industrial plants, civil, railway equipment |
tutto ok
arrivato il pacco in perfette condizioni
servizo clienti preciso ed affidabile
ottimo consigliato
faro sicuramente altri acquisti
Data sheet
- Voltage: 230V/415VAC
- Modules: 2
- Poles: 2P
- Amps: 40A
- Circuit Protections: Disconnectors
- Operating voltage: AC
