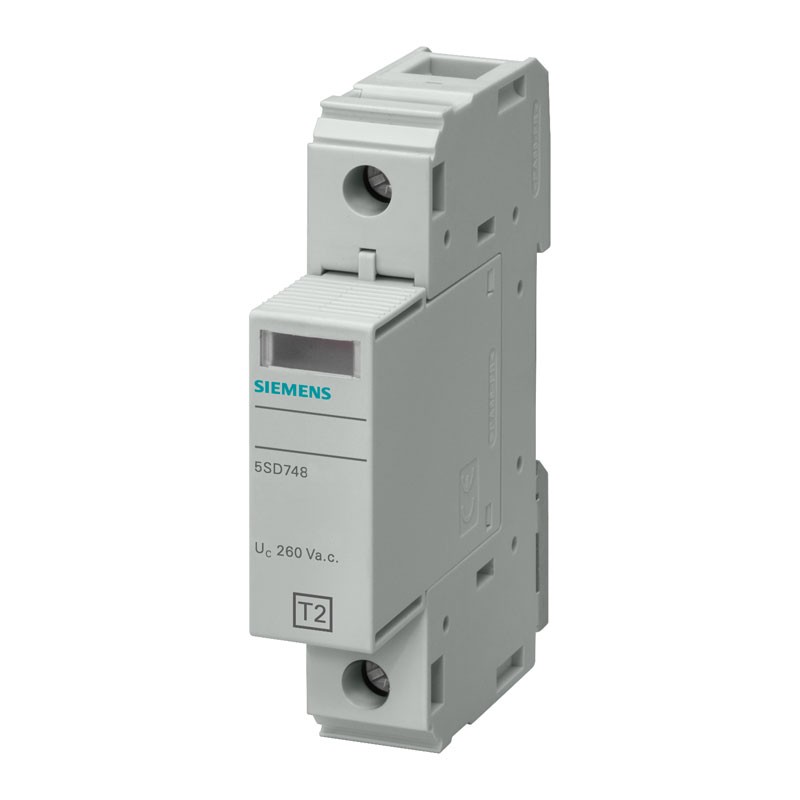

Siemens single-pole surge arrester 1P 40kA class 2 5SD74810
SIE 5SD74810
4001869340722
Siemens single-pole surge arrester , requirement class C, with the following characteristics:
- Type of distribution system TN, TT
- Operating voltage 230 Vac
- Permanent operating voltage max 260 V
- Discharge impulse current 40kA
- 1 pole
- 1 module
- type 2
€81.95
Items Available: 1
The surge arrester is an instrument that can be mounted inside the electrical panel, therefore upstream of the home system. Its use allows you to put in protection the electrical system on which it is installed.
The surge arrester will protect the entire system from surges, surges and peaks of electricity that may come from the operator of the power line, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to the devices connected to the outlets.
A power surge can cause the hardware of a PC to break, or short circuit the boards of smartphones, tablets and home appliances. In the event that the flow of energy suddenly increases dramatically, human life can even be at risk due to electrocution.
To prevent this from happening, it is therefore advisable to fit a surge protector.
Surge arresters are divided into three classes:
In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example in the mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. The discharge takes place in 350 microseconds, so that the excess energy does not reach the system.
In class 2 there are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.
In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets present in the home.
Features:
- Siemens series
- Type of distribution system TN, TT
- Voltage of use 230 Vac
- Permanent operating voltage max 260 V
- Discharge impulse current 40kA
- 1 pole
- 1 module
- 1 module Type 2
- Type of mounting DIN rail NS 35
- Housing material PA 6.6
- Pollution degree 2
- Protection class with connection of all terminals IP20
- Width 17.8 mm
- Height 90 mm
- Depth 71,5 mm
- Net weight 113 gr
- Electrical connection design screw terminal
- Stripping length 16 mm
- Tightening torque 4.3...4.7
- Installation altitude / for altitude above sea level / max. 2,000 m
- Impact acceleration 25 gn
There are no reviews
Data sheet
- Modules: 1
- Poles: 1P
- Maximum current: 40KA
- Version: 2
- Model: AC
- Circuit Protections: Surge protectors
