The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.

The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.

A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.

The earth leakage circuit breaker type AC, operates only with alternating current. Almost all civil installations fall into this category.

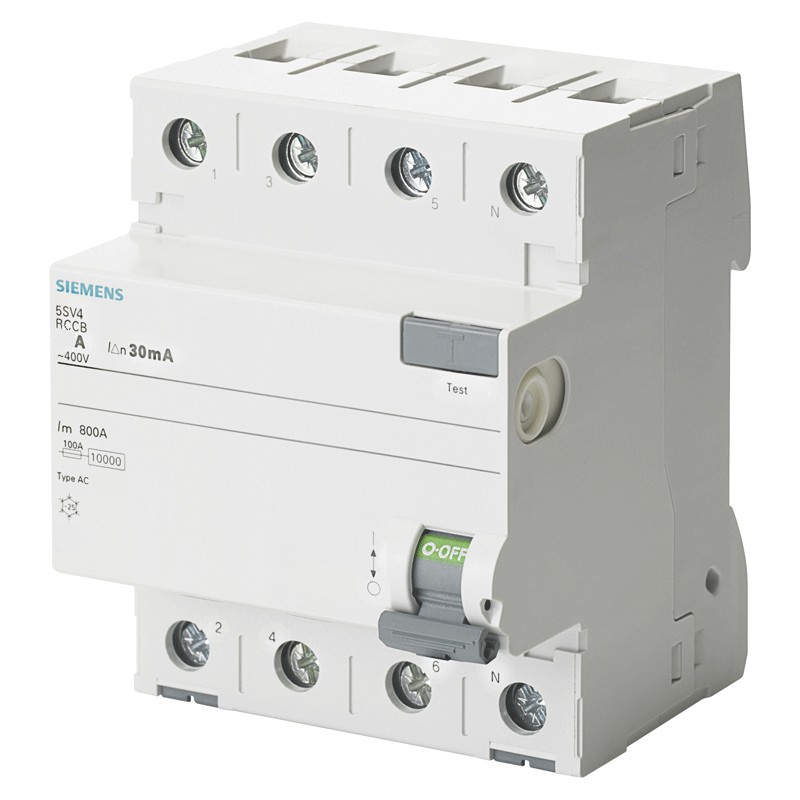

Features:

• Siemens series
• Voltage 400 Vac
• Current In 40A
• Differential current Idn 30mA
• AC differential type
• 4 modules
• 4P
• Degree of protection IP20, for installation in distribution board, with conductors connected
• Frequency of use 50 Hz
• Height 90 mm
• Width 72 mm
• Depth 70 mm
• Recessed depth 70 mm
• Type of mounting DIN rail (REG)
• Any mounting position
• Tightening torque/with screw terminals min 2.5 Nm - max 3 Nm
• Net weight 364 g
