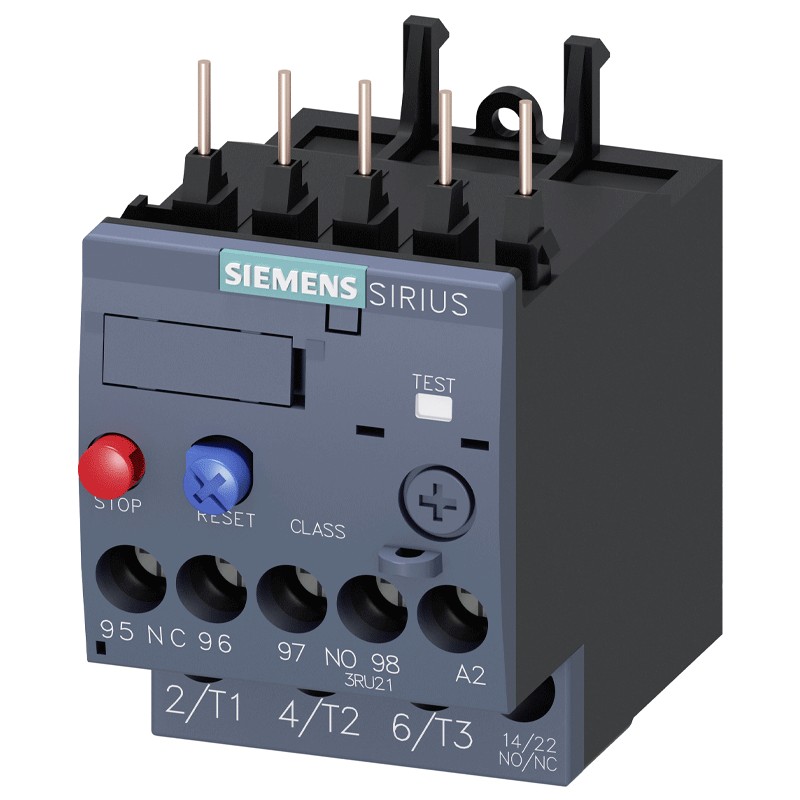

Siemens overload relay for S00 series 7-10A 3RU21161JB0


SIE 3RU21161JB0 4011209781672

Siemens overload relay for S00 series, with the following characteristics:

  • Operating voltage nominal value 690 Vac - with AC-3 nominal value max 690 Vac
  • Frequency of use nominal value 50/60 Hz
  • Operating current nominal value 10 A
  • Adjustable tripping value for current-dependent overload release current 7 ... 10 A
  • Rated impulse withstand voltage 6 kV
  • 3 poles
  • Any mounting position
  • Type of mounting Contactor mounting
  • Tightening torque for main contacts with screw terminals 0.8 ... 1.2 Nm
  • Tightening torque for auxiliary contacts with screw terminals 0.8 ... 1.2 Nm
  • Degree of protection IP front side IP20
Request info about this product

Siemens overload relay for S00 series 7-10A 3RU21161JB0

€46.14
€46.14

Siemens overload relay for S00 series 7-10A 3RU21161JB0

€46.14
Tax included
klarna Pay in installments with Klarna
qty

Siemens overload relay for S00 series 7-10A 3RU21161JB0

€46.14

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Thermal Overload Relays and Overload Relays are electromechanical protection devices for the main circuit. They provide safe motor protection in the event of overload or phase loss.

Features:

  • Siemens series
  • Operating voltage nominal value 690 Vac - with AC-3 max nominal value 690 Vac
  • Frequency of use nominal value 50/60 Hz
  • Operating current nominal value 10 A
  • Switching value adjustable for current-dependent overload release current 7 ... 10 A
  • Impulse withstand voltage nominal value 6 kV
  • Shock resistance acc. to IEC 60068-2-27 8g / 11 ms
  • Installation altitude for altitude above sea level max. 2000 m
  • Ambient temperature during operation -40 ... +70 °C - during storage -55 ...+80 °C, during transport -55 ...+80 °C
  • Temperature compensation -40 ...+60 °C
  • Relative humidity during operation 10 ... 95 %
  • 3 poles
  • Any mounting position
  • Type of mounting Contactor mounting

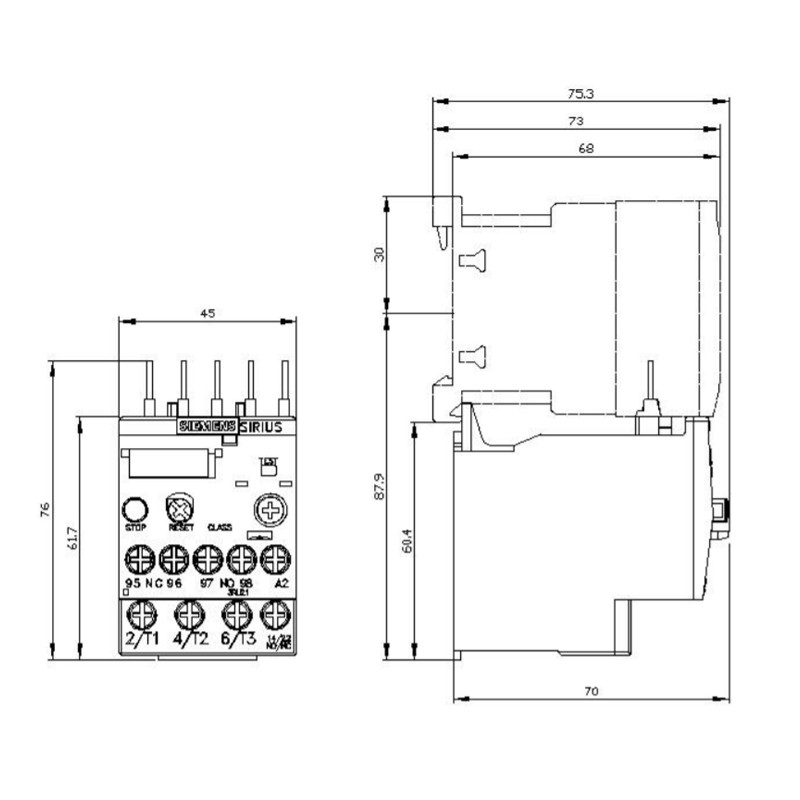

  • Height 76 mm
  • Width 45 mm
  • Depth 70 mm
  • Tightening torque for main contacts with screw terminals 0.8 ... 1.2 Nm
  • Tightening torque for auxiliary contacts with screw terminals 0.8 ... 1.2 Nm
  • IP degree of protection front side IP20

Data sheet

Type:
Overload Relays
Voltage:
690VAC
Poles:
3P
Amps:
7-10A
