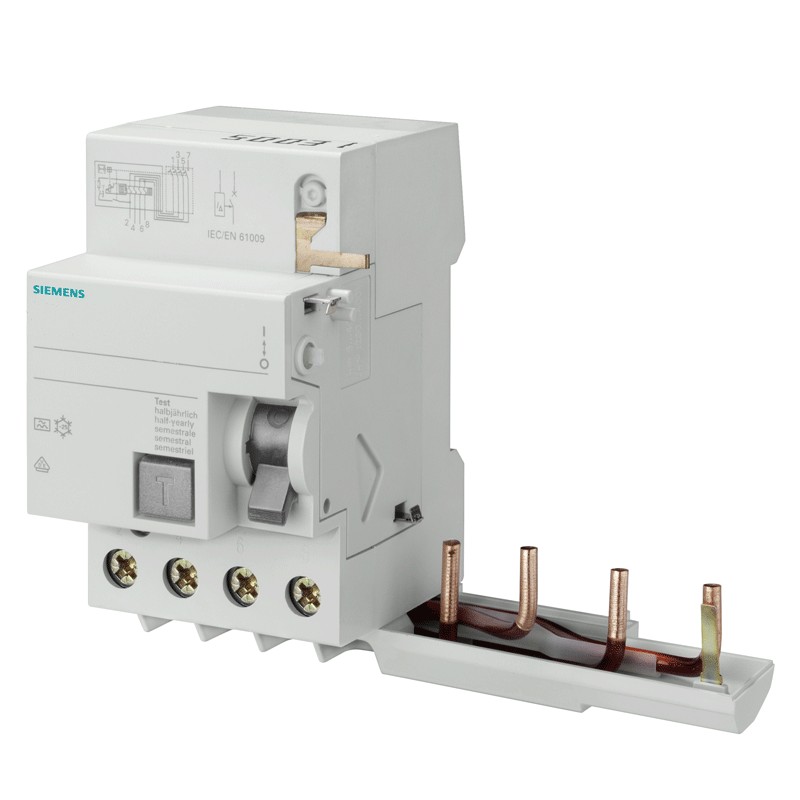

Siemens differential lock 4P 63A 30mA AC type 3 modules for 5SY 5SM23450
SIE 5SM23450
4001869171074
Differential lock (circuit breaker) Siemens, with the following characteristics:
- 3 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 63 amperes
- Differential current Idn 30mA
- Voltage 400 Vac
- AC differential type
Compatible with Siemens 5SY series circuit breakers
Siemens differential lock 4P 63A 30mA AC type 3 modules for 5SY 5SM23450
€109.33
€109.33
Tax included
Tax included
Pay in installments with Klarna
Items Available: 21
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The AC differential blockworks only with alternating current. Almost all civil installations fall into this typology.
Characteristics:
- Siemens series
- Voltage 400Vac
- Current In 63A
- Differential current Idn 30mA
- AC differential type
- Frequency of use 50 Hz
- 3 modules
- 4 poles
- Degree of protection IP20, for installation in a distribution board, with conductors connected
- Height 90 mm
- Width 124 mm
- Depth 77 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Any mounting position
- Net weight 375 gr
There are no reviews
Data sheet
- Voltage:
- 230VAC
400VAC - Modules:
- 3
- Poles:
- 4P
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 63A
- Circuit Protections:
- Earth Leakage add-on Blocks
