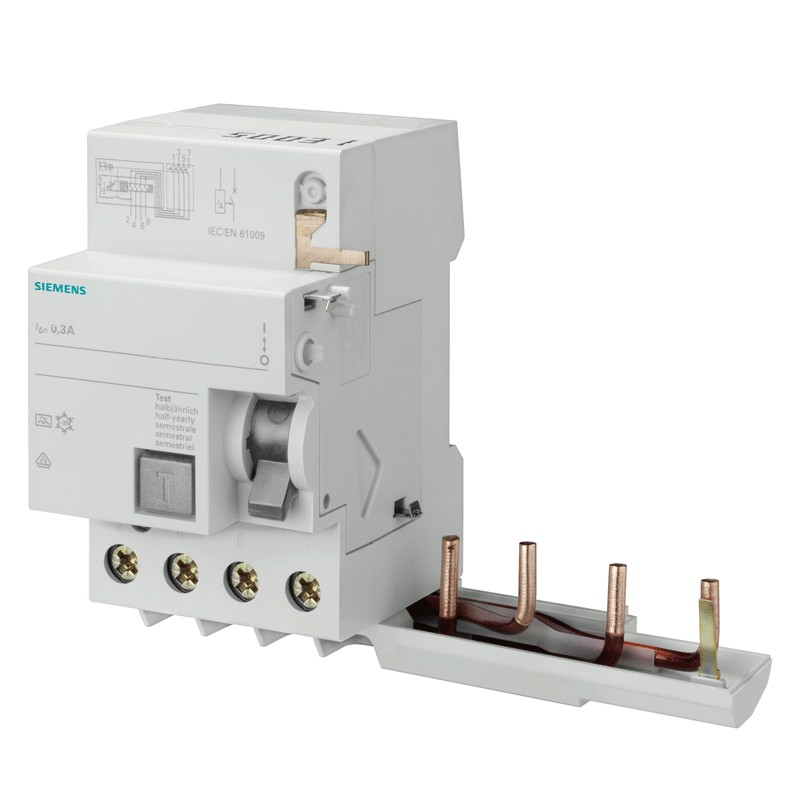

Siemens differential lock 4P 63A 300mA type AS 3 modules for 5SL6-SL4 5SM26468
SIE 5SM26468
4001869461175
Differential lock, (lifesaver), selective, Siemens, with the following features:
- 3 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 63 amperes
- Differential current Idn 300mA
- Voltage 230/400 Vac
- AS differential type
Compatible with Siemens circuit breakers 5SL6-5SL4 series
€148.58
Items Available: 81
: 22
Frequently bought together
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential block type A-S: selective or delayed residual current devices: they operate with intentional delay (like type A).
Features:
- Siemens series
- Voltage 230/400Vac
- Current In 63A
- Differential current Idn 300mA
- Type of differential AS (selective)
- Frequency of use 50 Hz
- 2 modules
- 2 poles
- Degree of protection IP20, for installation in distribution board, with connected conductors
- Height 90 mm
- Width 123 mm
- Depth 70 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Mounting position as desired
- Net weight 380 gr
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 3
- Poles: 4P
- RCD Type: AS
- Differential current : 0.3A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
