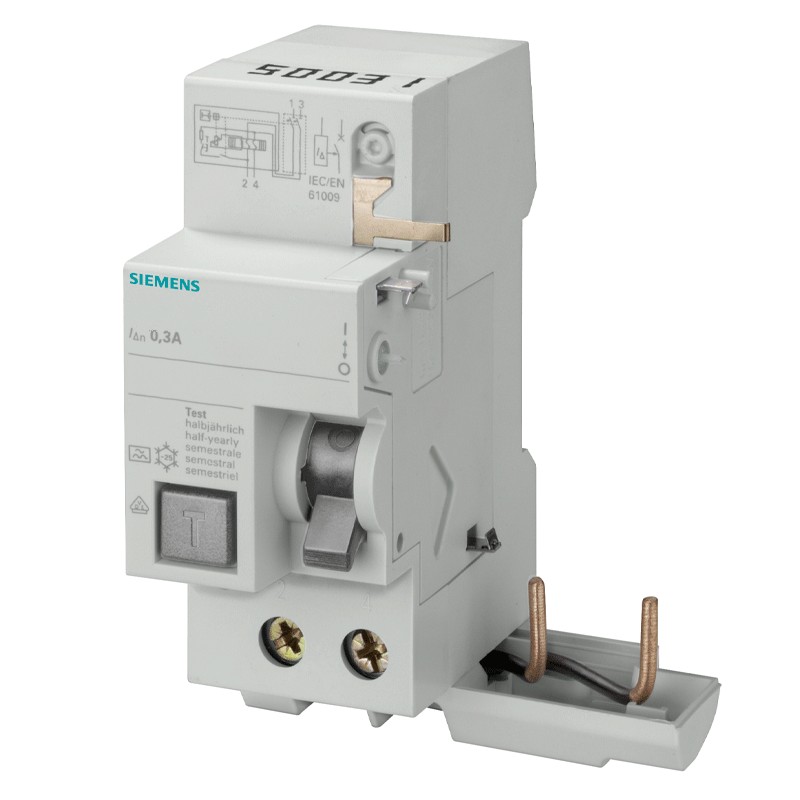

Siemens differential lock 2P 63A 500mA AC type 2 modules for 5SY 5SM27250
SIE 5SM27250
4001869251400
Differential lock (circuit breaker) Siemens, with the following features:
- 2 modules
- DIN connection (universal for any switchboard on the market)
- 2 poles
- 63 amperes
- Idn differential current 500mA
- Voltage 230/400 Vac
- AC differential type
Compatible with Siemens 5SY series circuit breakers
€58.93
Items Available: 20
: 4
Frequently bought together
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The AC differential blockworks only with alternating current. Almost all civil installations fall into this typology.
Characteristics:
- Siemens series
- Voltage 230/400 Vac
- Current In 63A
- Differential current Idn 500mA
- AC differential type
- Frequency of use 50 Hz
- 2 modules
- 2 poles
- Degree of protection IP20, for installation in distribution board, with connected conductors
- Installation depth 70 mm
- Type of mounting DIN rail (REG)
- Mounting position as desired
- Net weight 193 gr
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 2
- Poles: 2P
- RCD Type: AC
- Differential current : 0.5A
- Amps: 63A
- Circuit Protections: Earth Leakage add-on Blocks
