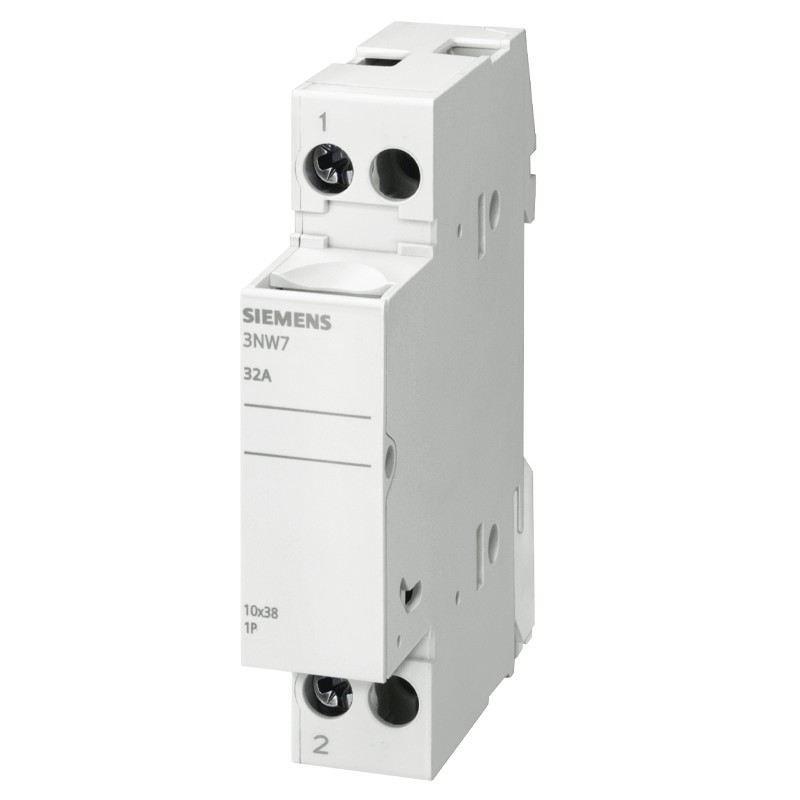

Siemens cylindrical fuse holder 3NW7 1P 32A 10,3X38 1M 3NW7013
SIE 3NW7013
4001869315591
Fuse holder for Siemens cylindrical cartridges, series 3NW7, with the following features
- 1 pole
- 1 module
- Construction size of the fuse cartridge 10 x 38 mm
- Operating voltage with AC nominal value 690 Vac
- Operating current at AC nominal value 32A
Siemens cylindrical fuse holder 3NW7 1P 32A 10,3X38 1M 3NW7013
€3.35
€3.35
Tax included
Tax included
Pay in installments with Klarna
Items Available: 374
Frequently bought together
Fuses offer optimal protection of lines, systems, devices in case of overload and short circuit.
They ensure safe and fast disconnection, for example, to minimize the effect of a short circuit, thus allowing you to protect property and lives.
Features:
- Siemens Series
- 1 pole
- 1 module
- Fuse cartridge size 10 x 38 mm
- Operating voltage with AC nominal value 690 Vac
- Protection class IP20
- Operating current at AC nominal value 32A
- Height 81 mm
- Width 18 mm
- Depth 64 mm
- Net weight 55 gr
Data sheet
- Type:
- Fuse holder
- Size:
- 10.3X38
- Voltage:
- 690VAC
- Modules:
- 1
- Poles:
- 1P
- Amps:
- 32A
