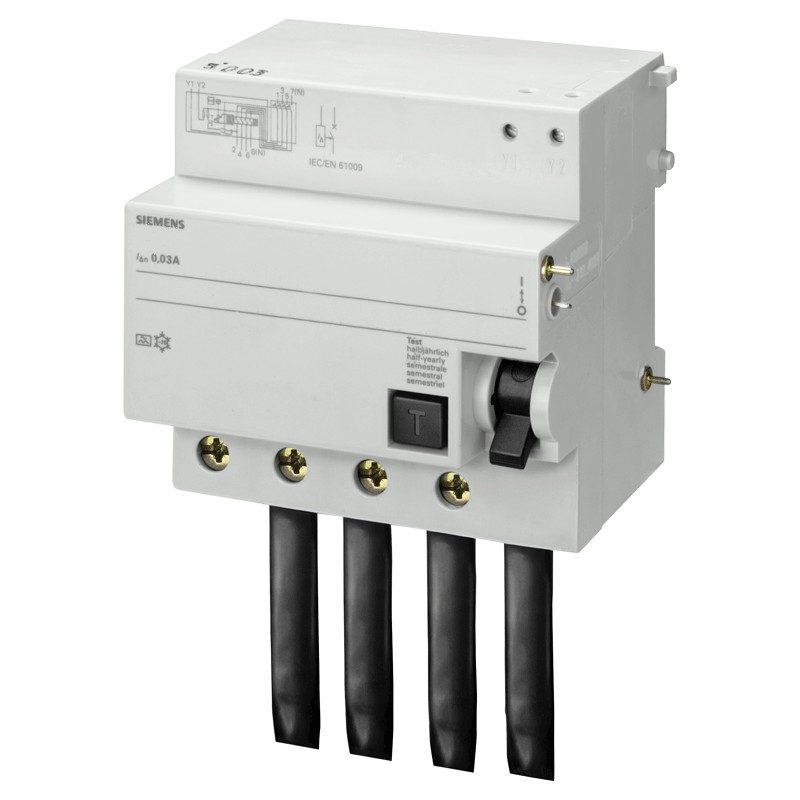

Siemens 4P 100A 30mA differential lock AC type 5 modules for 5SP4 5SM23470
SIE 5SM23470
4001869059198
Differential lock (circuit breaker) Siemens, with the following features:
- 5 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 100 amperes
- Differential current Idn 30mA
- Voltage 400 Vac
- AC differential type
Compatible with Siemens 5SP4 series circuit breakers
€152.72
Items Available: 35
: 2
Frequently bought together
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The AC differential blockworks only with alternating current. Almost all civil installations fall into this typology.
Characteristics:
- Siemens series
- Voltage 400Vac
- Current In 100A
- Differential current Idn 30mA
- AC differential type
- Frequency of use 50 Hz
- 5 modules
- 4 poles
- Degree of protection IP20, for installation in a distribution board, with conductors connected
- Height 90 mm
- Width 124 mm
- Depth 70 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Any mounting position
- Net weight 897 gr
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 5
- Poles: 4P
- RCD Type: AC
- Differential current : 0.03A
- Amps: 100A
- Circuit Protections: Earth Leakage add-on Blocks
