Siemens 4-pole differential block 63A 500mA for 5SY series 5SM27458
Differential lock (circuit breaker) Siemens, selective, with the following characteristics:
- 3 modules
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 63 amperes
- Idn differential current 500mA
- Voltage 230/400 Vac
- Type of differential A (selective)
Compatible with Siemens 5SY series circuit breakers
![](https://www.elettronew.com/40116-large_default/siemens-4-pole-differential-block-63a-500ma-for-5sy-series-5sm27458.jpg)

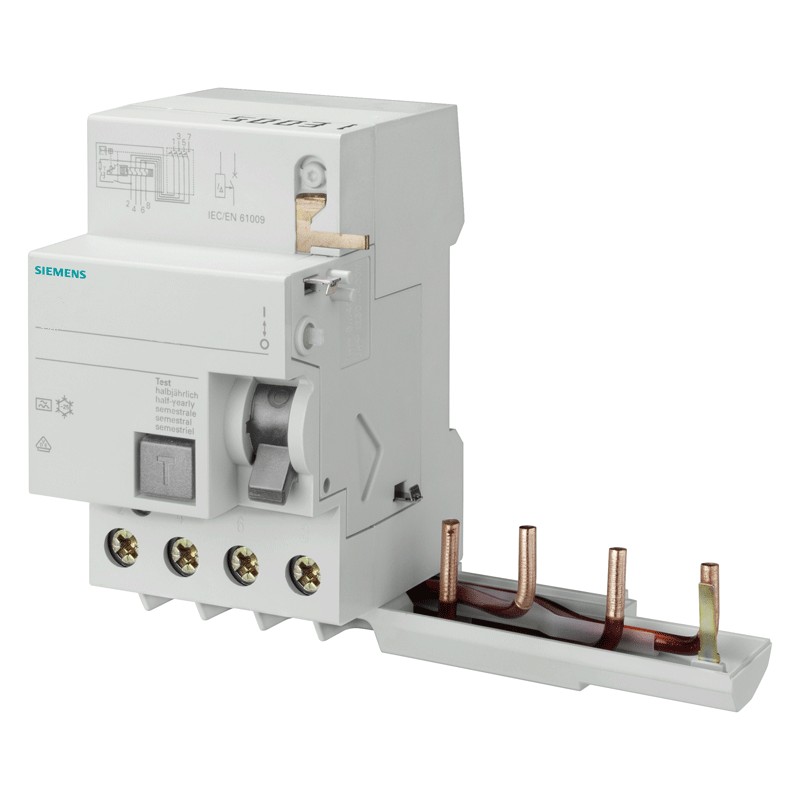

Siemens 4-pole differential block 63A 500mA for 5SY series 5SM27458
Tax included
![klarna](/../img/logo-klarna-list.png)
The differential blocks are mechanically designed to prevent a wrong coupling between the block and the circuit breaker: the power of the block must always be equal or greater than that of the circuit breaker. The lateral plastic clamp allows a quicker assembly of the block on the circuit breaker and a push button prevents possible interventions.
It is used to protect human health in case of earth fault (electrical leakage) or phase-to-earth electrocution, thus providing protection also against macro electrical shock, both direct and indirect, on exposed persons.
The differential lock type A, guarantees the operation for AC and unidirectional pulsating type currents.
Features:
- Siemens Series
- Selectivedifferential lock (S)
- Voltage 230/400 Vac
- Current In 63A
- Differential current Idn 500mA
- Type of differential A
- Frequency of use 50 Hz
- 3 modules
- 4 poles
- Degree of protection IP20, for installation in a distribution board, with conductors connected
- Height 90 mm
- Width 124 mm
- Depth 77 mm
- Recessed depth 70 mm
- Type of mounting DIN rail (REG)
- Any mounting position
- Net weight 307 g
Data sheet
- Voltage:
- 230/400VAC
- Modules:
- 8
- Poles:
- 4P
- RCD Type:
- A
- Differential current :
- 0.5A
- Amps:
- 63A
- Circuit Protections:
- Earth Leakage add-on Blocks
