Siemens 1P+N 16A 30mA Residual current operated Circuit Breaker A 4.5kA 2 modules 5SU13537KK16

Siemens
Siemens
SIE 5SU13537KK16 4001869306452

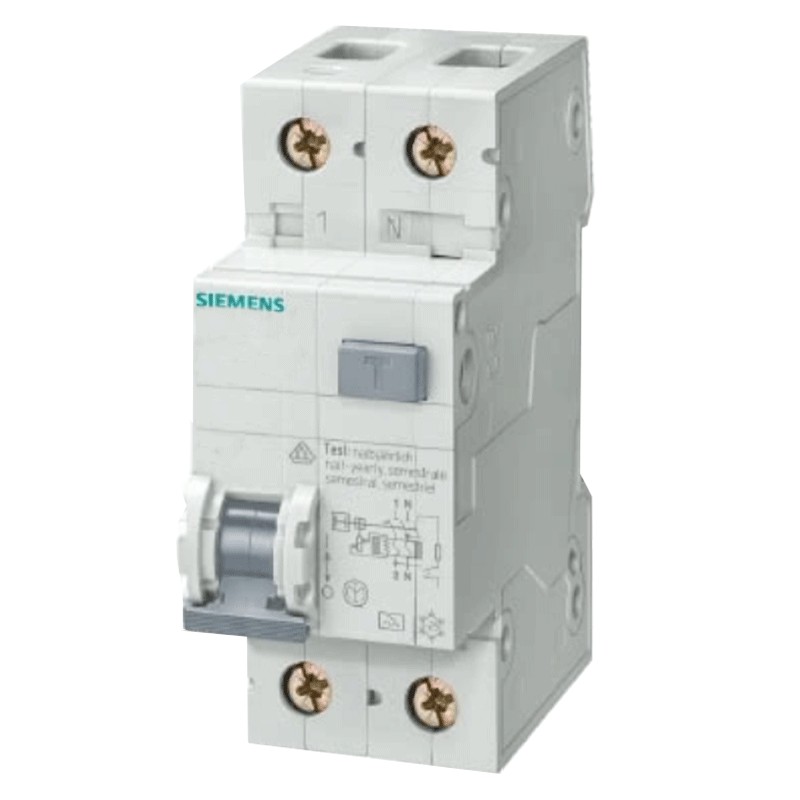

Siemens Residual current operated Circuit Breaker, combined protection against short circuits, overloads and current leakage. Ideal for domestic and industrial installations, with the following characteristics:

  • Rated current: 16 amps

  • Number of poles: 1P+N

  • Operating voltage: 230/240V AC

  • Interrupting capacity: 4.5 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: A

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens 1P+N 16A 30mA Residual current operated Circuit Breaker A 4.5kA 2 modules 5SU13537KK16
€50.19
€50.19

€50.19
Tax included
Items Available: 93
Further availability of the manufacturer
€50.19

Buy it within and receive it from Thursday, 21 August
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Comprehensive protection for your electrical system

The Siemens RCBO, integrates three basic protections:

  • Magnetic protection against short circuits, preventing fire and damage to the system
  • Thermal protection against overloads, preventing interruptions due to excessive loads
  • Differential protection (30mA) against current leakage, ensuring the safety of people

This combination makes it an essential device for electrical safety in homes, offices and small businesses.

Siemens RCBO: curve C and type A protection

C curve: ideal protection for mixed loads

Thanks to the C-curve tripping curve, the device is suitable for circuits with mixed loads, such as outlets and lighting, reducing the risks of unwanted interruptions.

Operation of the A-type circuit breaker

Residual current circuit breaker type A tripping is assured for alternating sine differential currents and unidirectional pulsating differential currents applied suddenly or slowly increasing (IEC EN 61008-1).

Siemens RCBO: robustness, reliability and compliance

Robust and compact design

Designed for quick and easy DIN-rail installation, the device is 2 modules wide, taking up little space in the electrical panel. Constructed with halogen- and silicone-free materials, it provides enhanced environmental safety and durability.

Certified reliability and regulatory compliance

Made in accordance with CEI EN 61008-1 standards, it ensures safe and timely tripping of sine-sine alternating differential currents. It has a mechanical life of 10,000 switching cycles, ensuring reliable performance over time.

Features of the Siemens RCBO

Technical Data

Feature Value
Rated current 16A
Number of poles 1P+N
Voltage 230/240V AC
Differential current 30 mA
Breaking capacity 4.5 kA
Tripping curve C
Type of differential A
Number of modules 2


Installation and Protection

Feature Value
Degree of protection IP20
Maximum cable cross-section 0.75/35 mm²


Dimensions

Feature Value
Height 90 mm
Width 36 mm
Depth 77 mm
Recessed depth 70 mm

Prodotto conforme alla descrizione. Originale!

Prodotto conforme alla descrizione. Ottimo venditore, spedizione veloce

Read all reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
RCD Type:
A
Differential current :
0.03A
Amps:
16A
Circuit Protections:
RCBO
