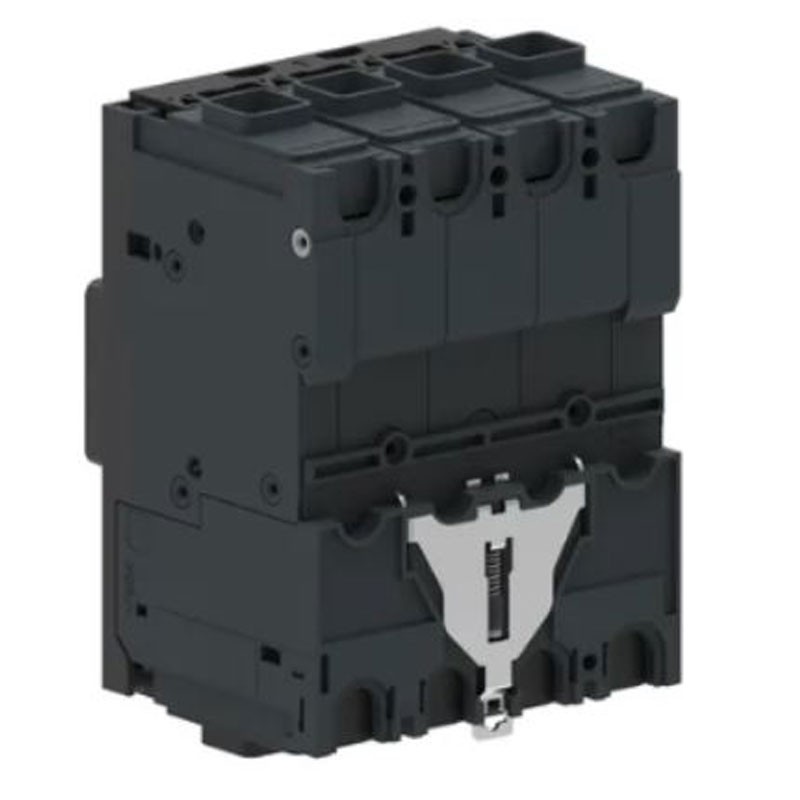

Schneider Molded Case Circuit Breaker 160A NSXM 16KA 4P C12E44V160L
SNR C12E44V160L
3606481992437
Molded Case Residual current Circuit Breaker/disconnector, Schneider ComPacT NSXm, with the following characteristics:
- Number of poles 4P
- Neutral position Left
- Rated current [In] 160 A at 40 °C
- Rated operating voltage [Ue] 440 V AC 50/60 Hz
- AC mains type
- Mains frequency 50/60 Hz
- Disconnection capability Yes in accordance with IEC 60947-2
- Utilization category Category A
- [Icu] Rated ultimate breaking capacity: 25 kA Icu complying with IEC 60947-2 at 220...240 V AC 50/60 Hz - 16 kA Icu complying with IEC 60947-2 at 380...415 V AC 50/60 Hz - 10 kA Icu complying with IEC 60947-2 at 440 V AC 50/60 Hz
- Performance level: E 16 kA 415 V AC
- Release name: "Micrologic 4.1"
- Release technology: electronic
€990.27
Items Available: 7
Frequently bought together
Other technical features:
- Schneider series
- Trip protection functions: LSoIR
- Control Type Lever
- Switch mounting Fixed
- Rated insulation voltage [Ui] 500 V AC 50/60 Hz
- Rated impulse withstand voltage [Uimp] 8 kV
- [Ics] Rated service interrupting capacity: 25 kA at 220...240 V AC 50/60 Hz according to IEC 60947-2 - 16 kA at 380...415 V AC 50/60 Hz according to IEC 60947-2 - 10 kA at 440 V AC 50/60 Hz according to IEC 60947-2
- Mechanical life 20000 cycles
- Electrical life: 20000 cycles at 440 V In/2, 10000 cycles at 440 V In, 10000 cycles at 690 V In/2, 5000 cycles at 690 V In
- Power dissipation per pole 12.21 W
- Backplate Installation
- Installation Horizontal and vertical
- upper connections Front side
- bottom connections Front side
- Connections: 1 Everlink connector 2.5...70 mm², flexible copper - 1 Everlink connector 2.5...95 mm², rigid or stranded aluminum/copper
- Connection pitch 35 mm with diffusers - 27 mm Without spacers
- Steps 9 mm 12 module
- Gauge release 160 A at 40 °C
- Thermal protection regulation type Ir Adjustable, 9 values.
- [Ir] Thermal protection regulation 63...160 A
- Thermal protection timing type tr Fixed
- [tr] protection timing long delay 200 s at 1.5 x Ir - 8 s at 6 x Ir - 5 s at 7.2 x Ir
- Neutral protection settings 1 x Ir ("4D")
- Thermal memory: 20 min before and after shooting
- Short delay protection adjustment type Isd Adjustable, 9 values
- [Isd] Short delay protection setting 1.5...10 x Ir
- Short delay protection timing type tsd Fixed
- Instantaneous protection setting type Ii Fixed
- [Ii] Instantaneous protection setting 2000 A
- Differential protection Integrated
- Differential protection type Class A - Class AC
- Differential protection regulation type IΔn Adjustable
- Local signaling: Flag (green)presence of auxiliary contacts:
- Width 108 mm
- Height 144 mm
- Depth (D) 80 mm
- Colour Grey (RAL 7016)
[IΔn] Differential protection regulation 30 mA:
- 100 mA
- 300 mA
- 500 mA
- 1 A
- 3 A
- 5 A
Differential sensitivity:
- 30 mA for class A
- 100 mA for class A
- 300 mA for class A
- 500 mA for class A
- 1 A for class A
- 30 mA for class AC
- 100 mA for class AC
- 300 mA for class AC
- 500 mA per class AC
- 1 A per class AC
- 3 A per class AC
- 5 A per class AC
Differential protection timing:
- 0 ms
- 60 ms
- 150 ms
- 500 ms
- 1000 ms
Number of slots for electrical auxiliaries:
- 1 slot for auxiliary contact OF
- 1 slot for alarm contact SD
- 1 slot for opening coil "MN or MX"
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 16KA
