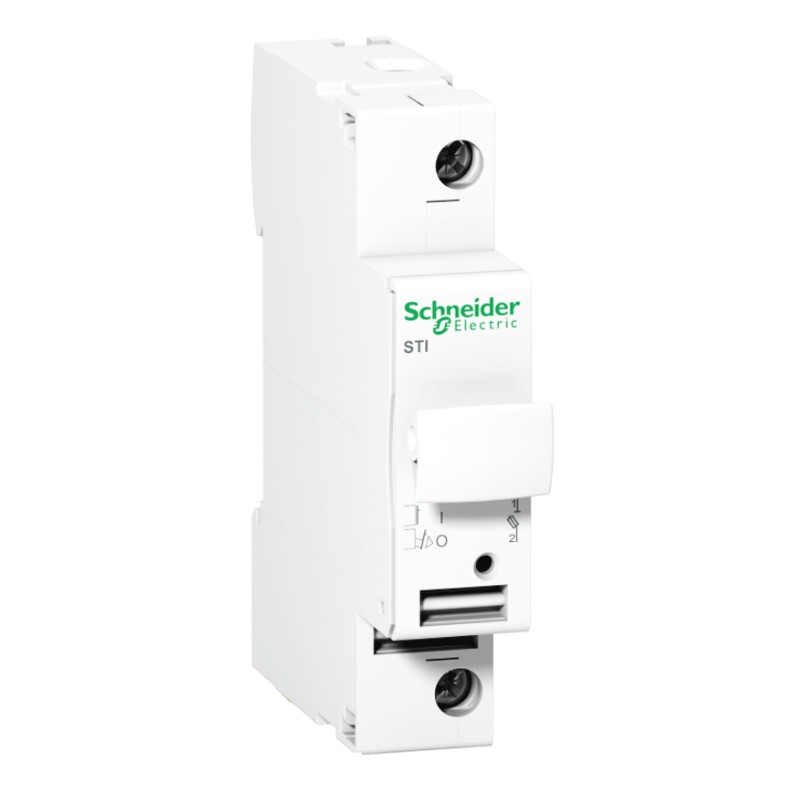

Schneider fuse holder 1P 32A 10.3X38 1 module A9N15636
SNR A9N15636
3606480619519
Schneider fuse holder, with the following characteristics:
- Rated current: 32A
- Fuse curve AM GG
- Fuse gauge 10.3 x 38 mm
- Rated operational voltage [Ue] 500 V "AC".
- Rated insulation voltage [Ui] 500 V "AC" "50/60 Hz".
- 1 pole
- 1 module
€8.53
Items Available: 88
: 63
Frequently bought together
Features:
- Schneider Series
- Rated current [In] 32A
- Fuse curve AM GG
- Fuse gauge 10.3 x 38 mm
- Rated operating voltage [Ue] 500 V "AC
- Rated insulation voltage [Ui] 500 V "AC" "50/60 Hz".
- Mounting method coupling
- 1 pole
- 1 module
- DIN rail mounting bracket
- Steps 9 mm 2
- Height 81 mm
- Width 18 mm
- Depth 75 mm
- Colour white
Connections/terminals
- Screw terminals1 cable 0.75...10 mm² rigid
- Screw terminals1 cable 0.5...6 mm² flexible
- Screw terminals2 cables 0.75...4 mm² rigid
- Screw terminals2 cables 0.5...6 mm² flexible
- Wire stripping length 12 mm
- Tightening torque 2 Nm
- Degree of protection IP20
- Pollution degree 3
- Operating ambient temperature -20...60 °C
- Storage temperature -40...80 °C
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 10.3X38
- Voltage: 500VAC
- Modules: 1
- Poles: 1P
- Amps: 32A
