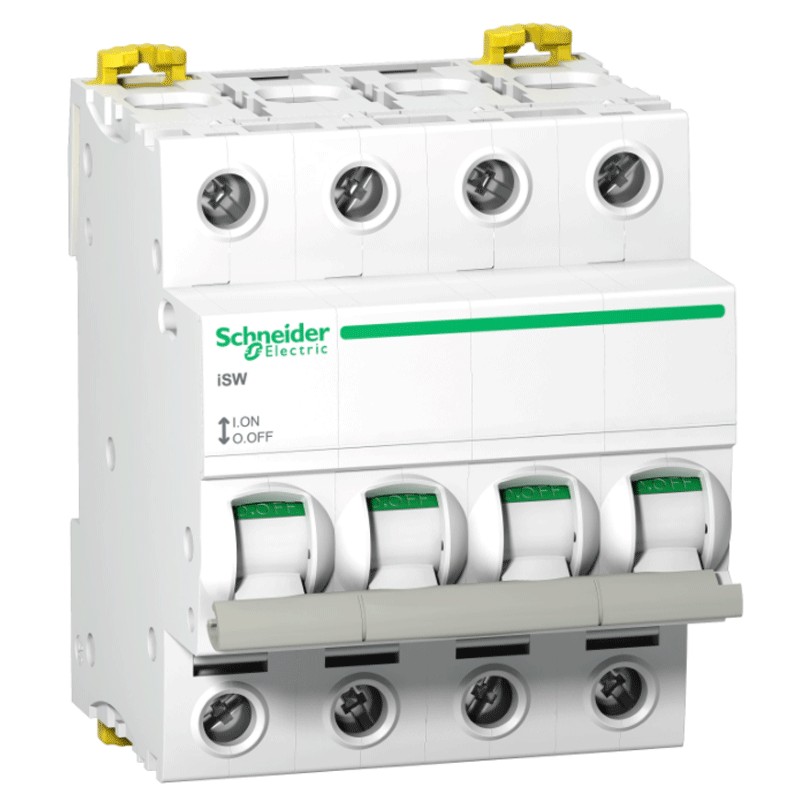

Schneider disconnector 4P 100A 4 modules A9S65491
SNR A9S65491
3606480531156
Schneider switch-disconnector, with the following characteristics:
- Rated operating voltage 415 Vac
- Rated frequency 50/60 Hz
- Rated insulation voltage 500 Vac
- Rated operational current 100A
- 4 poles
- 4 modules
- Degree of protection of the enclosure IP20
- Mounting method fixed
- Support for DIN rail mounting
€121.47
Items Available: 22
: 2
Thedisconnector, otherwise called voltage isolator, has the same features of a switch, but on a larger scale: it is, in fact, responsible for closing the flow of energy to the power plants. This serves mainly to ensure the safety of the plant and primarily of the people who work inside since one of its peculiarities is to separate the flow of energy from the working environments. Another peculiarity of this instrument is the ability to detect defects in the electrical flow and isolate them. When the defect is corrected, the disconnector will ensure that the current flows normally again.
Characteristics:
- Schneider series
- Rated operating voltage 415 Vac
- Rated frequency 50/60 Hz
- Rated insulation voltage 500 Vac
- Rated operational current 100A
- Rated impulse withstand voltage 6 kV
- Rated short-circuit breaking capacity [Icm] 5 kA single switch-disconnector
- Rated short-circuit withstand current [Icw] 1500 A
- Type of lever control
- Local ON/OFF indication
- Fixed mounting mode
- 4 poles
- 4 modules
- Enclosure protection degree IP20
- Support for DIN rail mounting
- Height 85 mm
- Width 72 mm
- Depth 73 mm
- Colour white
- Mechanical life 20000 cycles
- Electrical life 10000 cycles
- Wire stripping length 9 mm
- Tightening torque 3,5 Nm
- Pollution degree 3
- Tropicalisation 2
- Relative humidity 95 % at 55 °C
- Operating ambient temperature -20...60 °C
- Storage temperature -40...85 °C
There are no reviews
Data sheet
- Voltage: 415VAC
- Modules: 4
- Poles: 4P
- Amps: 100A
- Circuit Protections: Disconnectors
- Operating voltage: AC
