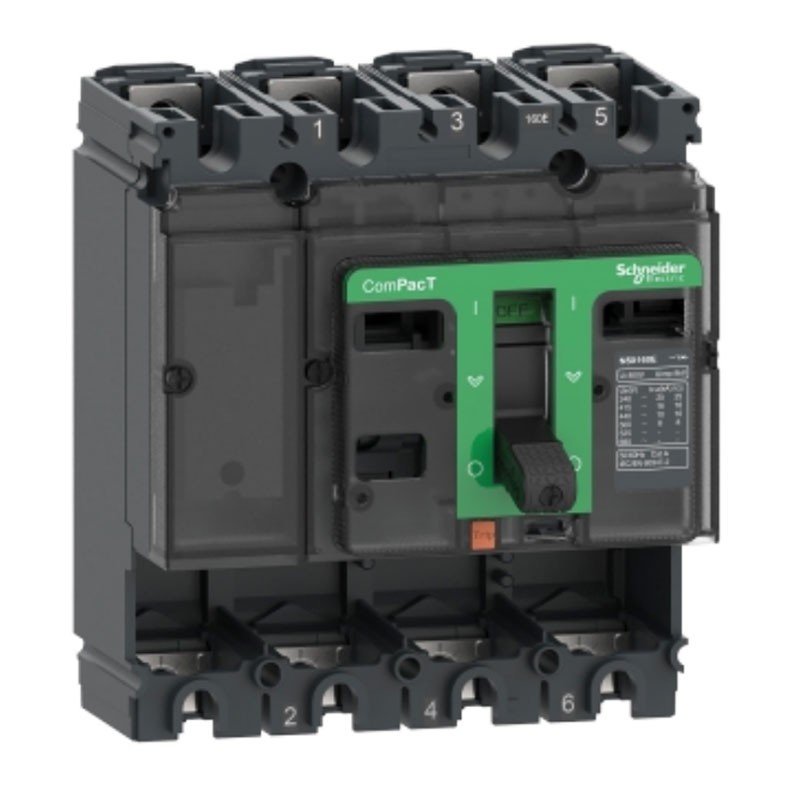

Schneider Compact Circuit Breaker NSX160E 4P 16KA C16E4
SNR C16E4
9000002887365
Compact base frame/circuit breaker, ComPact NSX160E without trip with the following characteristics:
- Rated operating voltage [Ue] 690 V "AC" "50/60 Hz"
- Rated insulation voltage [Ui] 800 V AC 50/60 Hz
- Rated impulse withstand voltage [Uimp] 8 kV according to IEC 60947-2
- Rated maximum short-circuit breaking capacity [Icu]..: 16 kA to 380...415 V
- Rated current 160 amperes
- Interrupting capacity 16 kA
- Mains frequency "50/60 Hz"
- 4 poles
€185.71
Items Available: 9
: 2
Frequently bought together
Other technical characteristics:
- Aptitude for sectioning: Yes according to EN/IEC 60947-2
- Utilization category: Category A
- Performance level: E 16 kA 415 V AC
- Type of control: Lever
- Type of protection: Without protection
- Width 140 mm
- Height 161 mm
- Depth 86 mm
- Pollution degree: 3 according to IEC 60664-1
- IP degree of protection: IP40 in accordance with IEC 60529
- IK degree of protection: IK07 in accordance with IEC 62262
- Ambient temperature: -25/+70 °C
- Storage temperature: -50/+85 °C
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 16KA
