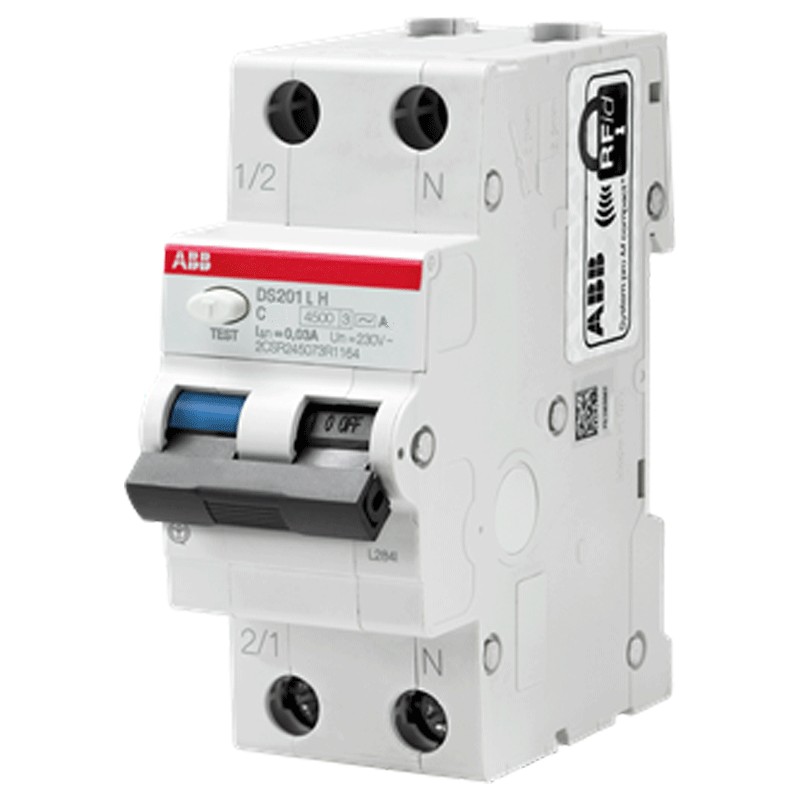

Abb DS201LH 10A Residual current operated circuit breaker Curve C 30mA A DS201LHC10A30

Abb
Abb
ABB DS201LHC10A30

Abb Residual current operated circuit breaker DS201, provides protection against overcurrent and leakage, ensuring safety and efficiency in electrical circuits. Ideal for civil and industrial installations, it offers reliable protection of people and equipment, with the following features:

  • Rated current: 10 amps

  • Number of poles: 1P+N

  • Voltage: 230V AC

  • Interrupting capacity: 4.5 kA

  • Differential current: 30 mA

  • Tripping curve: C

  • Differential type: A

  • Number of modules: 2

  • Degree of protection: IP20

Do you have questions about this product or did you not find what you were looking for? Ask us!
Abb DS201LH 10A Residual current operated circuit breaker Curve C 30mA A DS201LHC10A30
€39.73
€39.73

€39.73
Tax included
Calculate shipping cost
Items Available: 296
Further availability of the manufacturer
€39.73

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advanced functionality and protection

The Abb circuit breaker, integrates three basic levels of protection:

  • Magnetic protection: takes immediate action in the event of a short circuit, preventing damage to the system and reducing the risk of fire
  • Thermal protection: detects current overloads, such as the simultaneous use of multiple appliances, breaking the circuit to prevent overheating
  • Differential protection: protects people from accidental current leakage, ensuring safety in accordance with IEC EN 61008-1

Type A circuit breaker detects both alternating sine and pulsating unidirectional currents, intervening immediately in the event of a leakage, either sudden or gradual.

Compact design and easy installation

Designed for easy installation on DIN rail, occupying 2 modules. Screw terminals ensure secure fastening, with a tightening torque of 2.8 Nm and a cable stripping length of 12 mm.

With the clear indication of the contact position (red ON, green OFF), the user can immediately check the status of the switch.

Its compact size makes it suitable for electrical panels with limited space.

Applications and Usage

This RCBO is ideal for:

  • Domestic electrical systems, protecting lighting circuits and outlets
  • Industrial and commercial electrical panels, thanks to its resistance to short circuits up to 10kA
  • Tertiary and residential sectors, where a safe and efficient device is needed

With an IP20 rating, it is suitable for indoor environments with a pollution level 2, operating in a temperature range of -25 to +55 degrees.

Technical Characteristics

Feature Value
Rated current 10 A
Voltage 230V AC
Tripping characteristic C
Residual current type Type A
Rated residual current 30 mA
Number of poles 1P+N
Number of modules 2
Rated short-circuit capacity 6 kA
Impulse withstand voltage 4 kV
Dielectric proof voltage 2 kV
Electrical resistance 10000 cycles
Mechanical resistance 20000 cycles
Overvoltage category III
Clamp type Screw terminals
Ambient temperature -25/+55 degrees
Degree of protection IP20
Pollution degree 2
Width 35 mm
Height 85 mm
Depth 69 mm

Servizio ottimo per imballaggio e spedizione celere.

Read all reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
4.5KA
RCD Type:
A
Differential current :
0.03A
Amps:
10A
Circuit Protections:
RCBO
