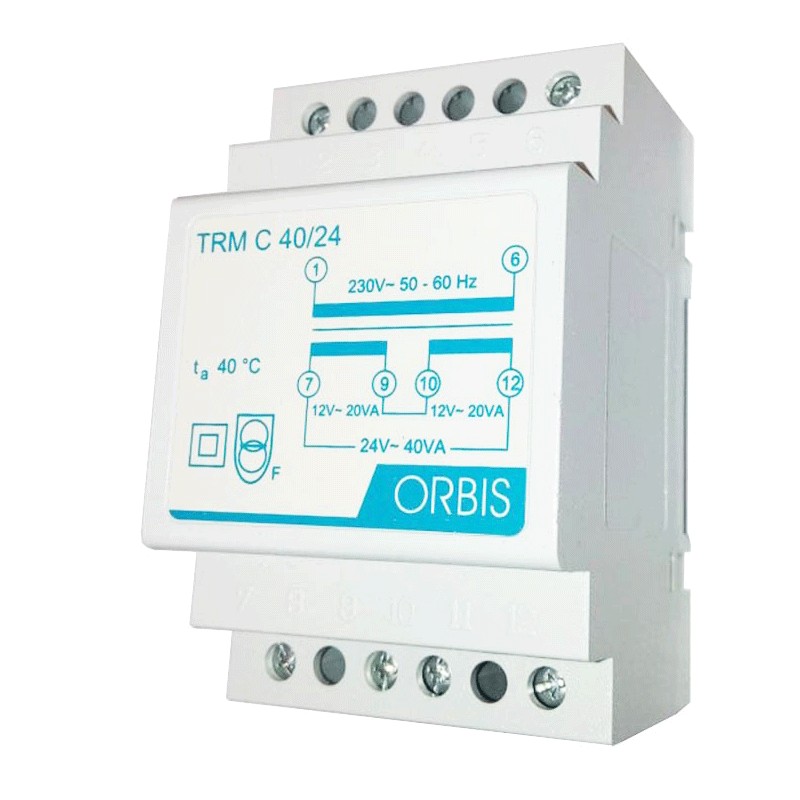

Orbis modular transformer 40VA 230/ 12-24V AC OB86C4024
ORB OB86C4024
8426709105303
Orbis modular transformer, with the following characteristics:
- Primary voltage 230 Vac
- Secondary voltage 12/24V
- AC power supply voltage
- Power 40VA
- 3 DIN modules
- Frequency 50/60 Hz
€53.99
Items Available: 1
The primary and secondary windings of this product are electrically separated by double insulation. An overload situation may damage the transformer but not the user or adjacent parts.
Features:
- Orbis Series
- Primary voltage 230 Vac
- Secondary voltage 12/24V
- AC supply voltage
- Power 40VA
- 3 DIN modules
- For continuous use
- Frequency 50/60 Hz
- Self-extinguishing thermoplastic material (class V-0) RAL 7035
- Max cable section 4 mm
There are no reviews
Data sheet
- Type: Modular Transformers
- Modules: 3
- Power: 40VA
- Vin: 230V
- Vout: 12V-24V
