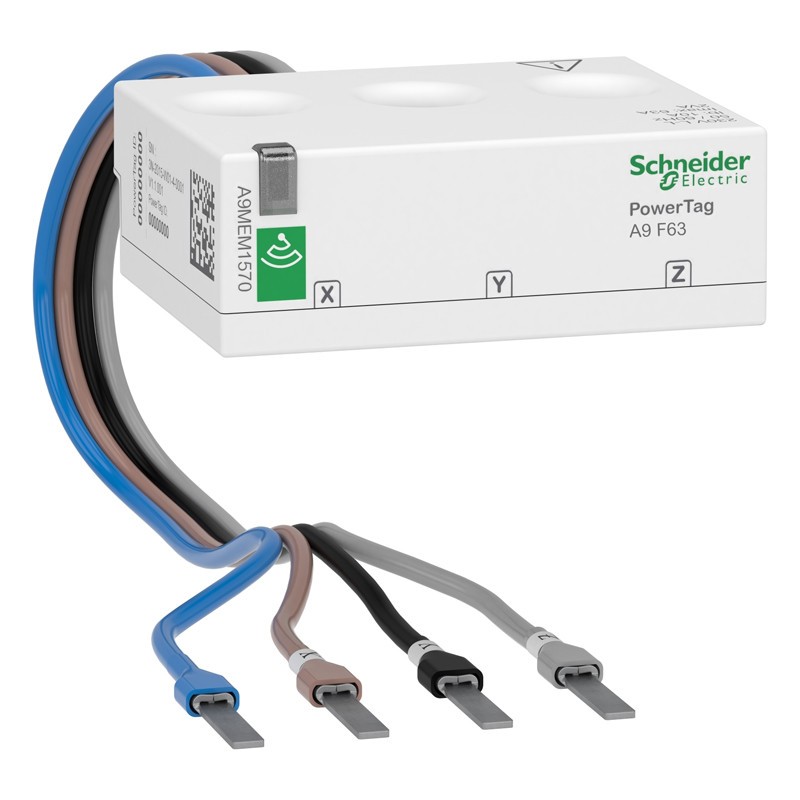

Monitoring sensor Schneider POWERTAG F63A 3P+N Mount A9MEM1570

Monitoring sensor Schneider POWERTAG F63A 3P+N Mount A9MEM1570

Schneider
Schneider
SNR A9MEM1570 3606481380432

Schneider POWERTAG F63A monitoring sensor , with the following features:

  • Poles 3P + N

  • Maximum current [Imax] 63 A

  • Basic current 10 A

  • Input current 40 mA

  • Saturation current 130 A

  • Accuracy class 1

  • Mounting system with screws (terminals)

  • Mains frequency 50 Hz/60 Hz

  • Maximum power 2 VA

  • Colour white (RAL 9003)

Do you have questions about this product or did you not find what you were looking for? Ask us!
Monitoring sensor Schneider POWERTAG F63A 3P+N Mount A9MEM1570
Monitoring sensor Schneider POWERTAG F63A 3P+N Mount A9MEM1570
€190.06
€190.06

€190.06
Tax included
Calculate shipping cost
Items Available: 7
Further availability of the manufacturer
€190.06

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Schneider Series
  • Poles 3P + N
  • Maximum current [Imax] 63 A
  • Basic Current 10 A
  • Input current 40 mA
  • Saturation current 130 A
  • Accuracy Class 1
  • Upstream or downstream mounting position
  • Switch mounting bracket
  • Mounting system with screws (terminals)
  • Mains frequency 50 Hz/60 Hz
  • Maximum power 2 VA
  • Height Sensor element 20 mm
  • Width Sensor element 54 mm
  • Depth Sensor element 46.6 mm
  • Product weight 40 gr
  • Colour white (RAL 9003)
  • Operating altitude 0...2000 m
  • Operating ambient temperature -25...60 °C
  • Storage temperature -40...85 °C
  • Overvoltage category "III
  • Degree of protection IK05
  • Degree of protection IP20
  • Pollution degree 3
  • Relative humidity 0...95 % at 45 °C

There are no reviews

Data sheet

Type:
Monitoring sensors
