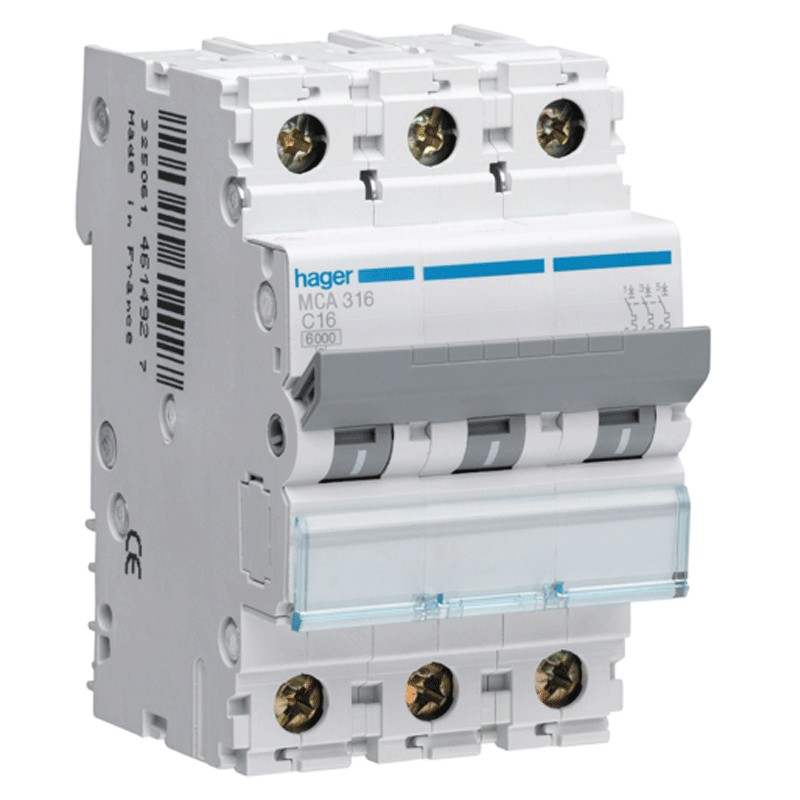

Mcb Hager 3P 16A 6 KA C 3 modules MCA316
HAG MCA316
3250614346798
Mcb Hager 3P 16A 6 KA C 3 modules MCA316
€70.13
Items Available: 2
: 1
Technical characteristics rated operational Voltage ac: 230/400 V rated Frequency: 50/60 Hz rated Current in A 16 a Poles: 3 P Power rated breaking capacity Icn: 6 kA breaking capacity Icu: 10 kA Curve: C Number of modules 17.5 mm: 3 Power loss per pole: 2.8 W short-circuit Capacity of - NF EN 60898: 6 kA rated Voltage, insulation: 500v Number of operations (mechanical endurance): 20000 electrical Life and number of cycles: 4000 protection Index IP: IP20 operating Temperature: -25 to 60 °C storage Temperature: -25 to 80 °C Torque: 2.8 Nm Execution tropicalized for all climates
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 3
- Poles: 3P
- Curve: C
- Breaking capacity: 6KA
- Amps: 16A
- Circuit Protections: Circuit breakers
