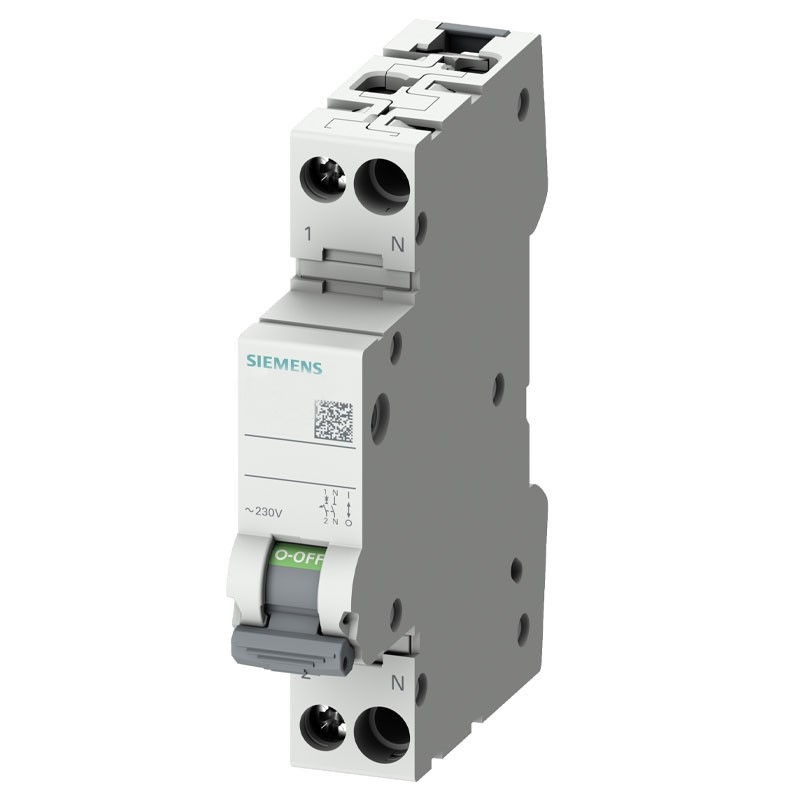

Siemens Circuit breaker 6A Poles 1P+N 6KA Curve C 1 Module 5SL60067
SIE 5SL60067
4001869533902
Siemens circuit breaker, with the following characteristics:
- Rated voltage 230 Vac
- 1 module
- DIN connection (universal for any switchboard on the market)
- Poles: 1P+N
- 6 amperes
- Interrupting capacity 6kA
- IP20 degree of protection
- Tripping curve C
€12.99
Items Available: 103
: 32
Curve C, trip threshold 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.
A circuit breaker is a safety device that can automatically (i.e., without external intervention) interrupt the flow of electric current in an electrical circuit in the event of an overcurrent.
Technical Characteristics:
- Rated voltage 230 Vac
- Current In 6A
- Interrupting capacity Icn 6kA
- Intervention curve C
- 1 module
- 1P+N
- Height 90 mm
- Width 18 mm
- Depth 76 mm
- Recessed depth 70 mm
- Net weight 113.2 grams
- Mounting position as desired
- Type of mounting profile rail
- Tightening torque / with screw terminals 2 Nm, max. 2.5 Nm
- Degree of protection IP20, with conductors connected
There are no reviews
Data sheet
- Modules: 1
- Poles: 1P+N
- Curve: C
- Breaking capacity: 6KA
- Amps: 6A
- Circuit Protections: Circuit breakers
