KIT Basic Bticino built-in switchboard for residential systems
KIT CENTRALINO BASE

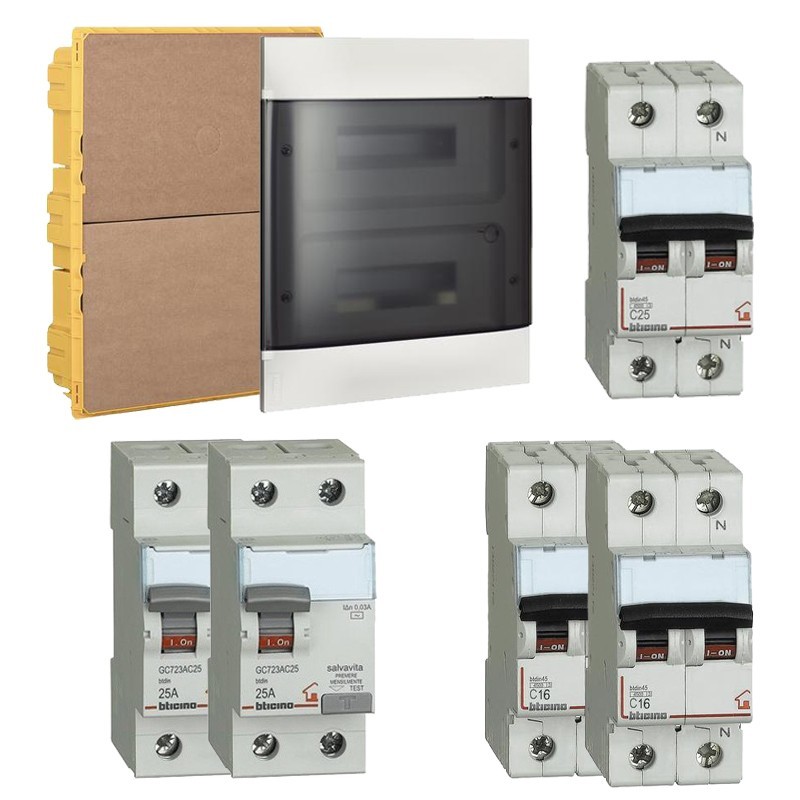

KIT Basic Bticino built-in switchboard for residential systems composed of:
- 1 Switchboard 12 recessed modules (E315P12)
- 1 Recessed Box (F315S12)
- 1 Bticino 25A AC (GC723AC25) Differential Life-saving Bticino 25A AC (GC723AC25)
- 1 Magnetothermal 10A 4.5KA C (FC810NC10)
- 1 Magnetothermal 16A 4.5KA C (FC810NC16)
With the kit you save compared to individually purchased items
€131.69
Items Available: 10
: 9
The Bticino Linea Habita flush-mounting switchboard in white thermoplastic resin with smoked door has 12 modules, therefore 6 more modules are available for further electrical components to the switchboard.
Switchboard Features:
- IP40 degree of protection
- Dimensions: Height 235mm x Width 328mm x Depth 112mm
- Power 23W
- Habita Line Series
Features Lifesaving Differential Bticino:
- 2 Poles
- Current in A 25
- Type AC
- Differential current Ind A 0.03
- Voltage 230-400V
- 2 Modules
- IP20 degree of protection
- Maximum cable cross section 25/35mmq
Features Magnetothermal Circuit Breaker 10A Bticino:
- Poly 1P N
- Curve C
- Current In 10A
- 2 Modules
- Voltage 230/240V
- IP20 Degree of Protection
- Interrupting power 4.5kA
- Maximum cable cross section mm² 25
Features Magnetothermal switch 16A Bticino:
- Poly 1P N
- Curve C
- Current In 16A
- 2 Modules
- Voltage 230/240V
- IP20 Degree of Protection
- Interrupting power 4.5kA
- Maximum cable cross section mm² 25
