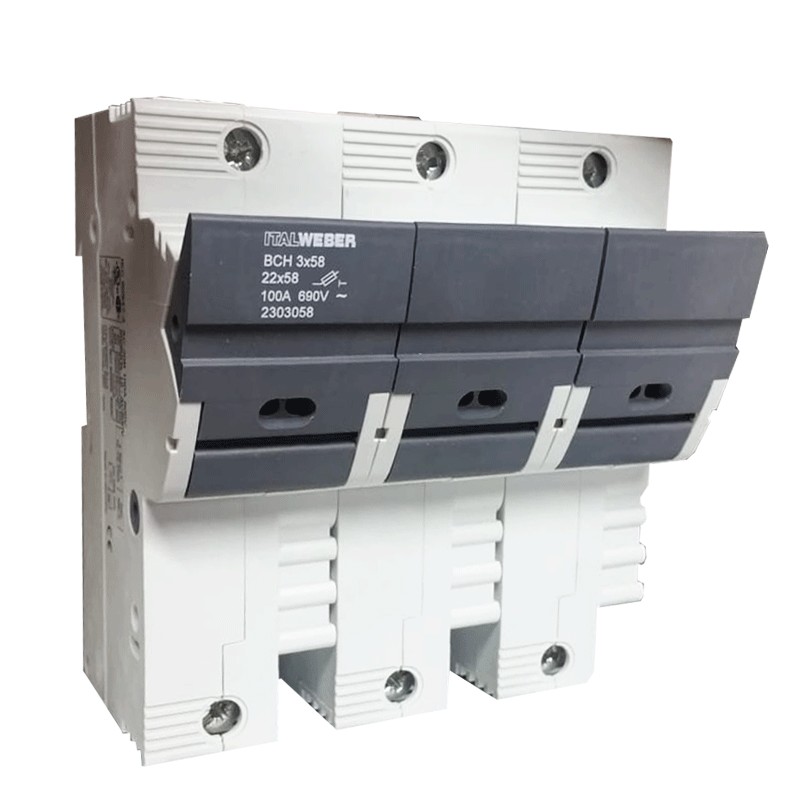

Italweber sectional fuse holder BCH 22 x 58 mm 3 poles 100A 690V 2303058
ITW 2303058
8024873018810
Italweber BCH series sectional fuse holder, with the following characteristics
- Fuse gauge 22 x 58 mm
- Three-pole type
- Current In 100A
- Nominal voltage 690 Vac
- 3 poles
- 6 modules
- Insulation voltage 800 Vac
- Short circuit current withstand 100kA
![](https://www.elettronew.com/41061-large_default/italweber-sectional-fuse-holder-bch-22-x-58-mm-3-poles-100a-690v-2303058.jpg)
Italweber sectional fuse holder BCH 22 x 58 mm 3 poles 100A 690V 2303058
€51.45
€51.45
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 11
These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.
Features:
- Italweber Series
- Fuse gauge 22 x 58 mm
- Three-pole type
- Current In 100A
- Nominal voltage 690 Vac
- 3 poles
- 6 modules
- Insulation voltage 800 Vac
- Operating temperature -40°C / + 100°C
- Resistance to short circuit current 100kA
- Degree of protection IP20
Data sheet
- Type:
- Fuse holder
- Size:
- 22x58 fuse sizes
- Voltage:
- 690VAC
- Modules:
- 6
- Poles:
- 3P
- Amps:
- 100A
