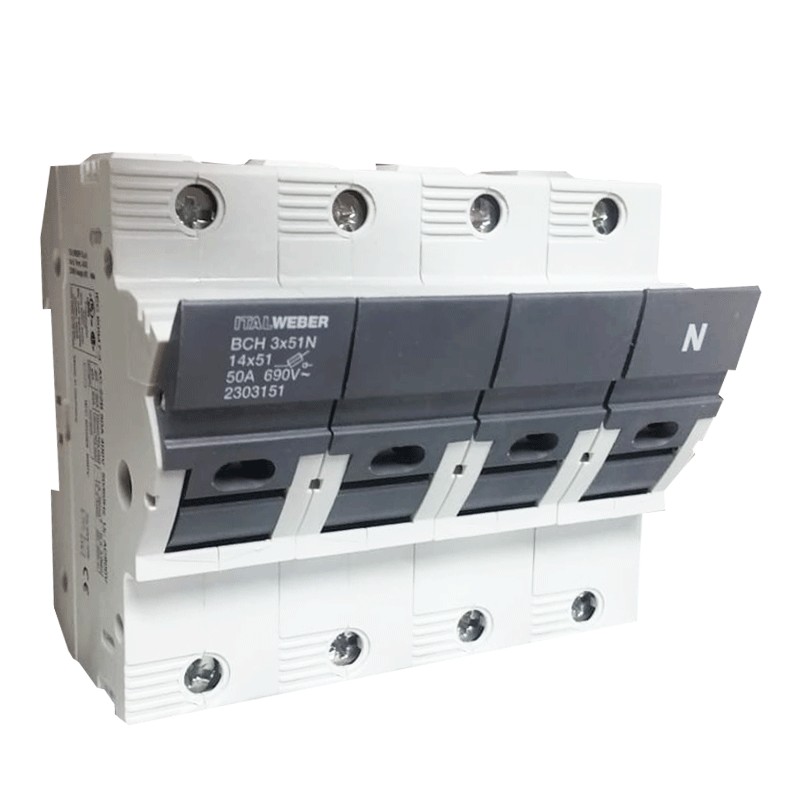

Italweber sectionable fuse holder BCH 14 x 51 mm 3P+N 50A 690V 2303151

Italweber
Italweber
ITW 2303151 8024873018834

Italweber BCH series sectional fuse holder, with the following characteristics

  • Fuse gauge 14 x 51 mm
  • Type three-pole + neutral
  • Current In 50A
  • Rated voltage 690 Vac
  • 3 poles + N
  • 6 modules
  • Insulation voltage 800 Vac
  • Short circuit current withstand 100kA
Do you have questions about this product or did you not find what you were looking for? Ask us!
Italweber sectionable fuse holder BCH 14 x 51 mm 3P+N 50A 690V 2303151
€44.40
€44.40

€44.40
Tax included
Calculate shipping cost
Items Available: 5
Further availability of the manufacturer
€44.40

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.

Features:

  • Italweber Series
  • Fuse gauge 14 x 51 mm
  • Type three-pole + neutral
  • Current In 50A
  • Nominal voltage 690 Vac
  • 3 poles + N
  • 6 modules
  • Insulation voltage 800 Vac
  • Operating temperature -40°C / + 100°C
  • Resistance to short circuit current 100kA
  • Degree of protection IP20

There are no reviews

Data sheet

Type:
Fuse holder
Size:
14X51
Voltage:
690VAC
Modules:
6
Poles:
3P+N
Amps:
50A
