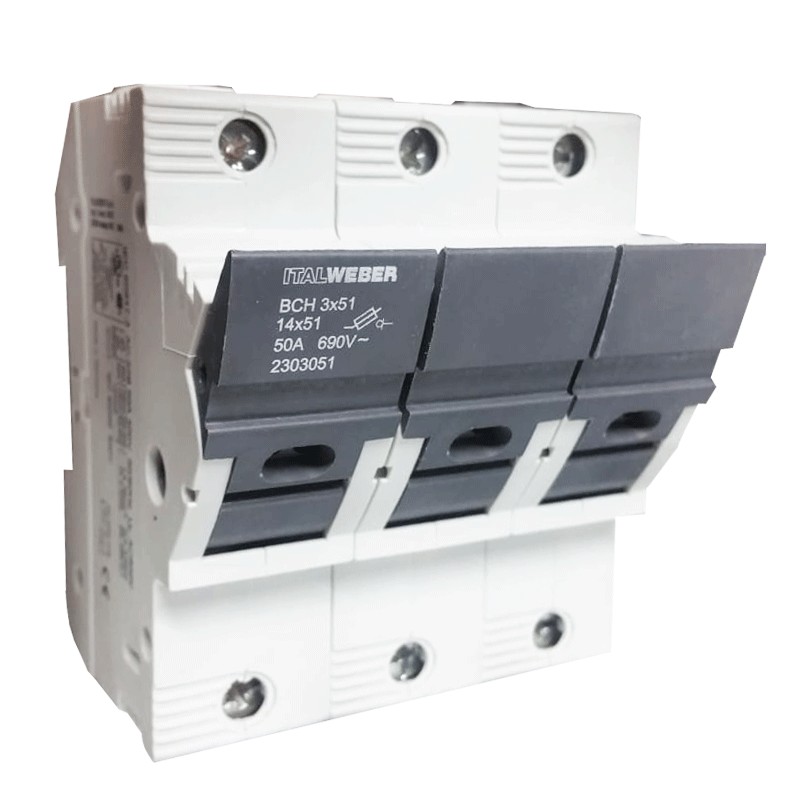

Italweber sectionable fuse holder BCH 14 x 51 mm 3 poles 50A 690V 2303051
ITW 2303051
8024873018803
Italweber BCH series sectional fuse holder, with the following characteristics
- Fuse gauge 14 x 51 mm
- Three-pole type
- Current In 50A
- Nominal voltage 690 Vac
- With microswitch
- 3 poles
- 4.5 modules
- Insulation voltage 800 Vac
- Short circuit current withstand 100kA
€27.44
Items Available: 8
: 1
These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.
Features:
- Italweber Series
- Fuse gauge 14 x 51 mm
- Tripolar type
- Current In 50A
- Nominal voltage 690 Vac
- With microswitch
- 3 poles
- 4.5 modules
- Insulation voltage 800 Vac
- Operating temperature -40°C / + 100°C
- Resistance to short circuit current 100kA
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 14X51
- Voltage: 690VAC
- Modules: 4,5
- Poles: 3P
- Amps: 50A
