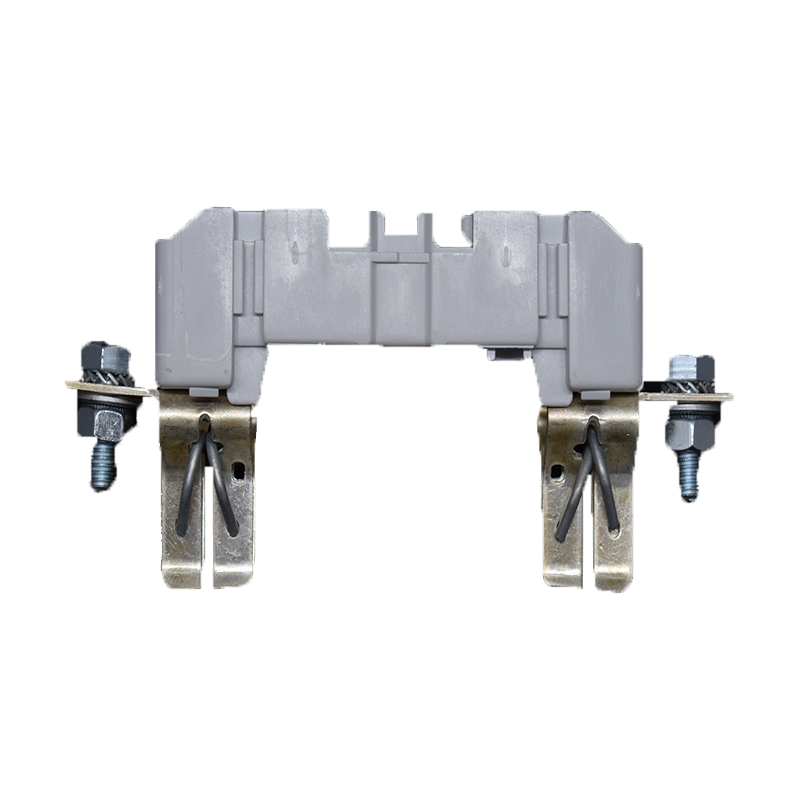

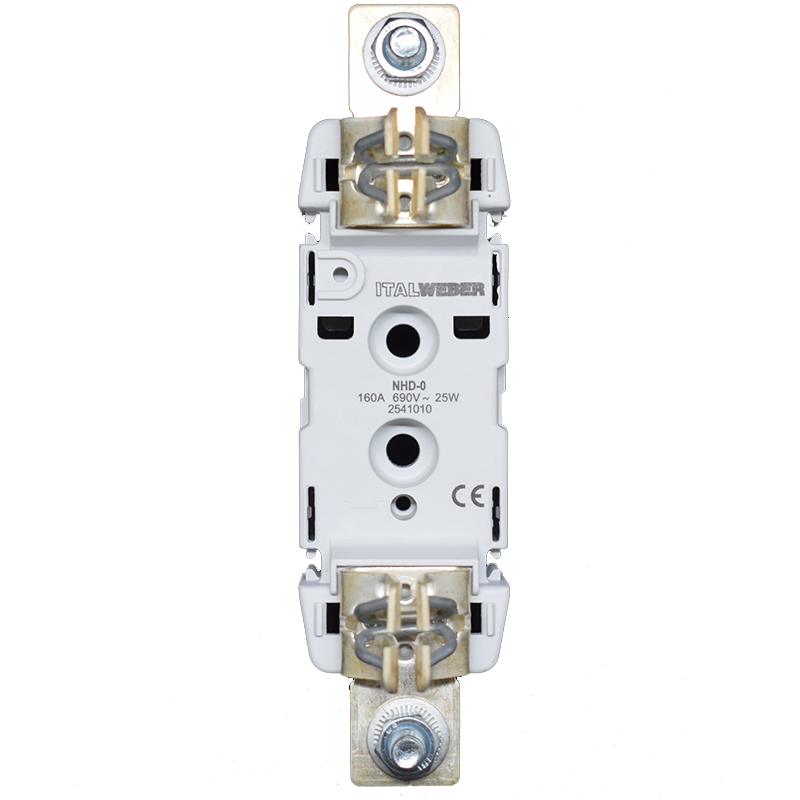

Italweber fuse holder screw fixing 2541010

Italweber fuse holder screw fixing 2541010


ITW 2541010 8024873026297

Italweber fuse holder, with the following characteristics:

  • Ideal for knife-edge fuses NH series
  • Nominal voltage 690Vac / 700 Vdc
  • 1 pole
  • Current In 160A
  • Ideal for single and three-pole families
  • Rated current up to 630A
  • Resistance to short circuit current 50kA (peak 100kA)
  • Maximum power dissipation 25W per pole
Request info about this product
Italweber fuse holder screw fixing 2541010

Italweber fuse holder screw fixing 2541010

€13.88
€13.88

Italweber fuse holder screw fixing 2541010

€13.88
Tax included
klarna Pay in installments with Klarna
qty

Italweber fuse holder screw fixing 2541010

€13.88

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

Features:

  • Italweber series
  • Ideal for knife edge fuses NH series
  • Nominal voltage 690Vac / 700 Vdc
  • 1 pole
  • Current In 160A
  • Ideal for single and three pole families
  • Screw fixing
  • Dimensions NH-00, NH-0, NH-1, NH-2, NH-3
  • Compliant with standards CEI 32-1, CEI 32-4, IEC 60269-1, IEC 60269-2, DIN 43620
  • Plastic body (polyamide + 25% glass fibres)
  • Degree of self-extinguishing UL94-V0
  • Contacts in silver-plated copper
  • Bolting material steel quality 8.8
  • Rated current up to 630A
  • Operating temperature -20°C / +70°C
  • Resistance to short circuit current 50kA (100kA peak)
  • Maximum power dissipation: 25W per pole

Data sheet

Type:
Fuse holder
Voltage:
690VAC
Poles:
1P
Amps:
160A
