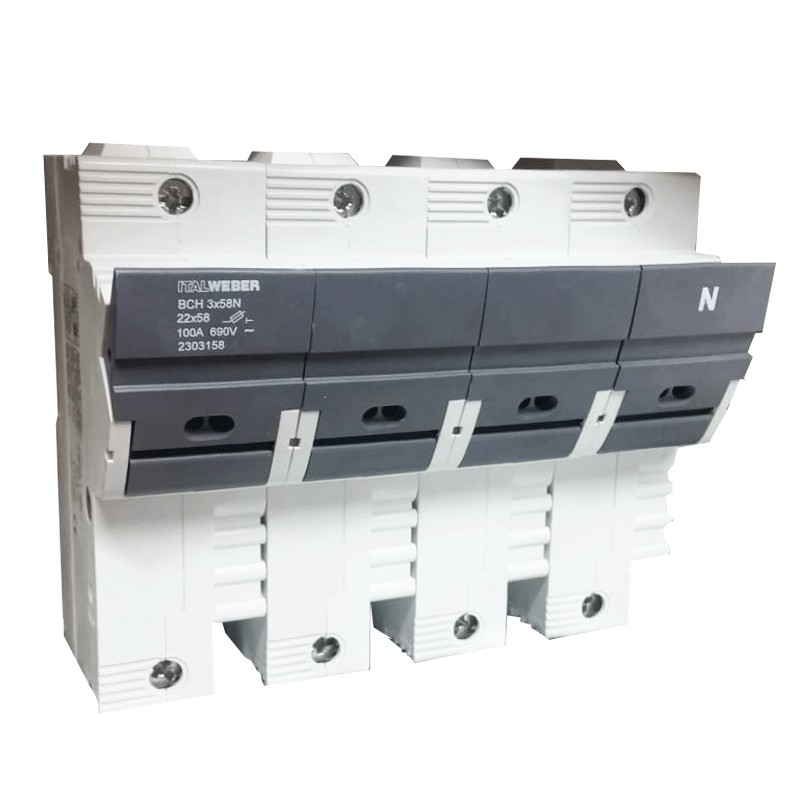

Italweber fuse holder BCH 22 x 58 mm 3 poles+N 100A 690V 2303059
ITW 2303158
8024873018841
Italweber disconnectable fuse holder BCH series, with the following characteristics
- Fuse gauge 22 x 58 mm
- Three-pole type
- Current In 100A
- Nominal voltage 690 Vac
- 3 poles +N
- 8 modules
- Insulation voltage 800 Vac
- Short circuit current withstand 100kA
€54.28
Items Available: 9
: 1
These fuse holders are manufactured taking into account the latest technologies. The body is made of self-extinguishing thermoplastic materials resistant to high temperatures, while the contacts are made of silver-plated copper. All fuse holders are pluggable.
Features:
- Italweber Series
- Fuse gauge 22 x 58 mm
- Three-pole type
- Current In 100A
- Nominal voltage 690 Vac
- 3 poles +N
- 8 modules
- Insulation voltage 800 Vac
- Operating temperature -40°C / + 100°C
- Resistance to short circuit current 100kA
- Degree of protection IP20
There are no reviews
Data sheet
- Type: Fuse holder
- Size: 22x58 fuse sizes
- Voltage: 690VAC
- Modules: 8
- Poles: 3P+N
- Amps: 100A
