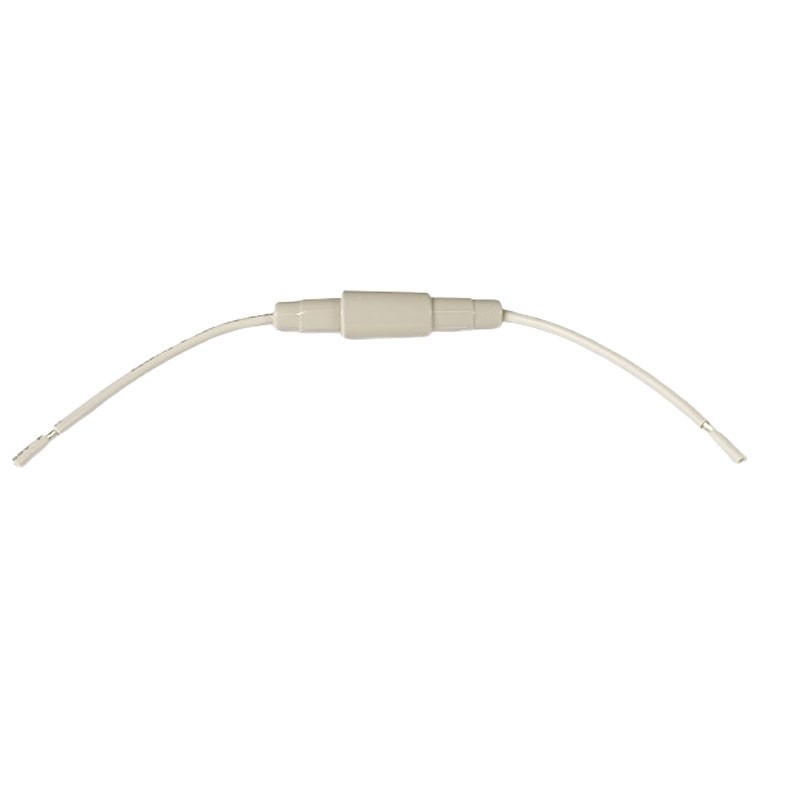

Italweber flying fuse holder with cables 1,5 mmq 0900170
ITW 0900170
8024873020592
Flying fuse holder Italweber, with the following characteristics:
- Ideal for 5x20 mm and 6.3x32 mm gauge fuses
- Nominal current 10A
- Nominal voltage 250V
![](https://www.elettronew.com/65402-large_default/italweber-flying-fuse-holder-with-cables-15-mmq-0900170.jpg)
Italweber flying fuse holder with cables 1,5 mmq 0900170
€2.71
€2.71
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 2529
Features:
- Italweber series
- Ideal for 5x20 mm and 6,3x32 mm fuses
- Compliant with CEI 32-6/6, IEC EN 60127-6 standards
- Body in plastic material UL-94 V0
- Screw union
- Brass contacts
- Rated current 10A
- Nominal voltage 250V

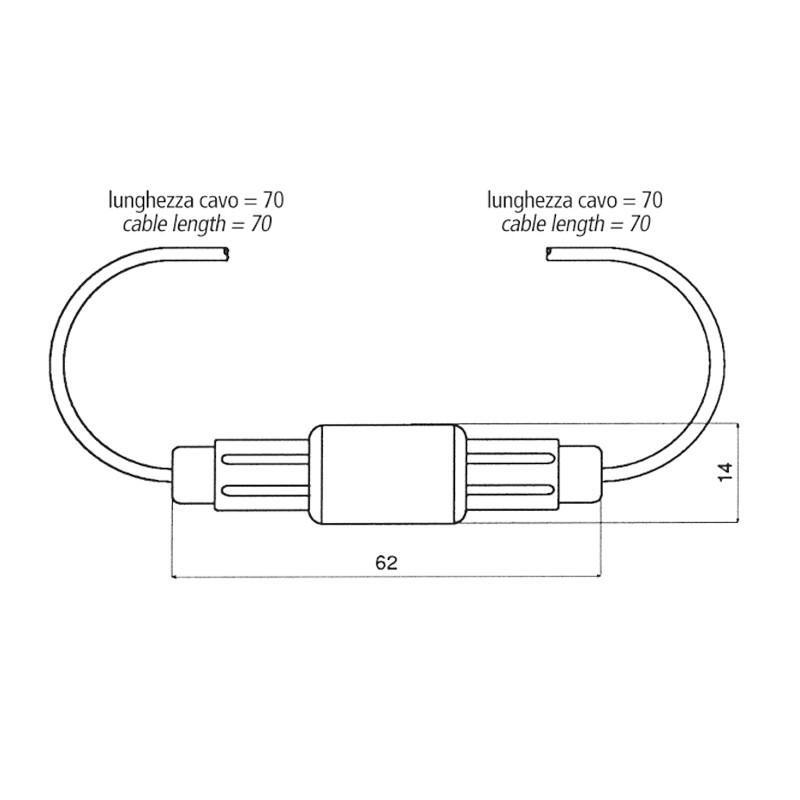

- Cable length 70 mm
- Cable cross section 16 AWG
- Category PC1 = holders without integral protection against electric shock (only suitable for applications where corresponding complementary methods of protection against electric shock are provided)
Data sheet
- Type:
- Fuse holder
- Voltage:
- 250 Vac
- Amps:
- 10A
