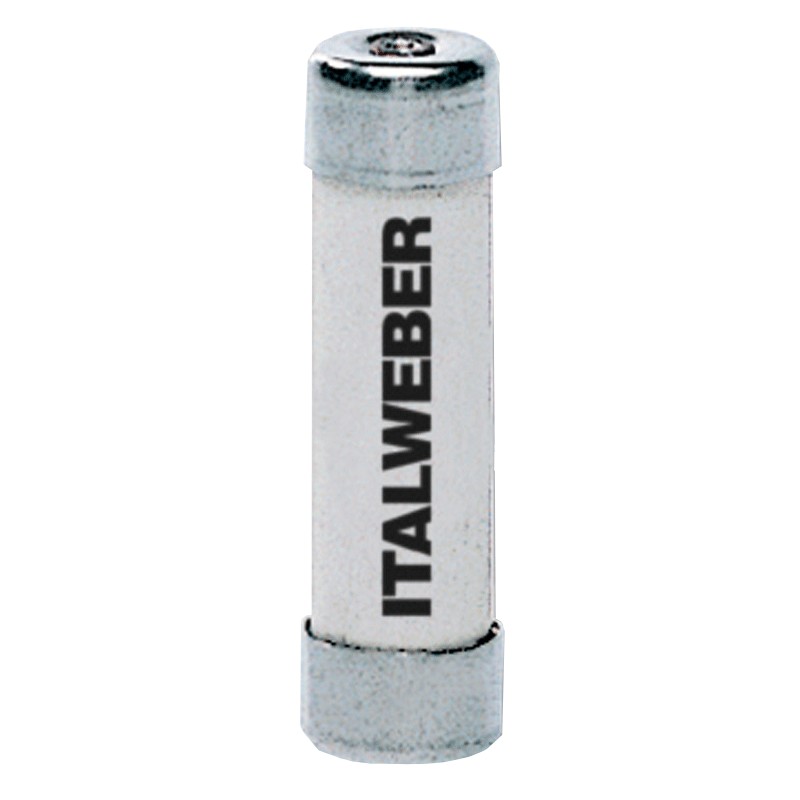

Italweber cylindrical fuse 8,5 x 31,5 mm gG 6A 400V 1100006
ITW 1100006
8024873046196
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 8,5 x 31,5 mm
- Civil use series C0
- Intervention characteristic gG
- Nominal current 6A
- Rated voltage 400 Vac
- Breaking capacity 20kA
Italweber cylindrical fuse 8,5 x 31,5 mm gG 6A 400V 1100006
€1.45
€1.45
Tax included
Tax included
Pay in installments with Klarna
Items Available: 1436
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 8,5 x 31,5 mm
- Civil use series C0
- Tripping characteristic gG
- Compliant with IEC 60269-1, IEC 60269-3 standards
- Rated current 6A
- Rated voltage 400 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 20kA
There are no reviews
Data sheet
- Type:
- Cylinder fuses
- Size:
- 8.5X31.5
- Voltage:
- 400V
- Breaking capacity:
- 20KA
- Amps:
- 6A
- Material:
- Steatite
