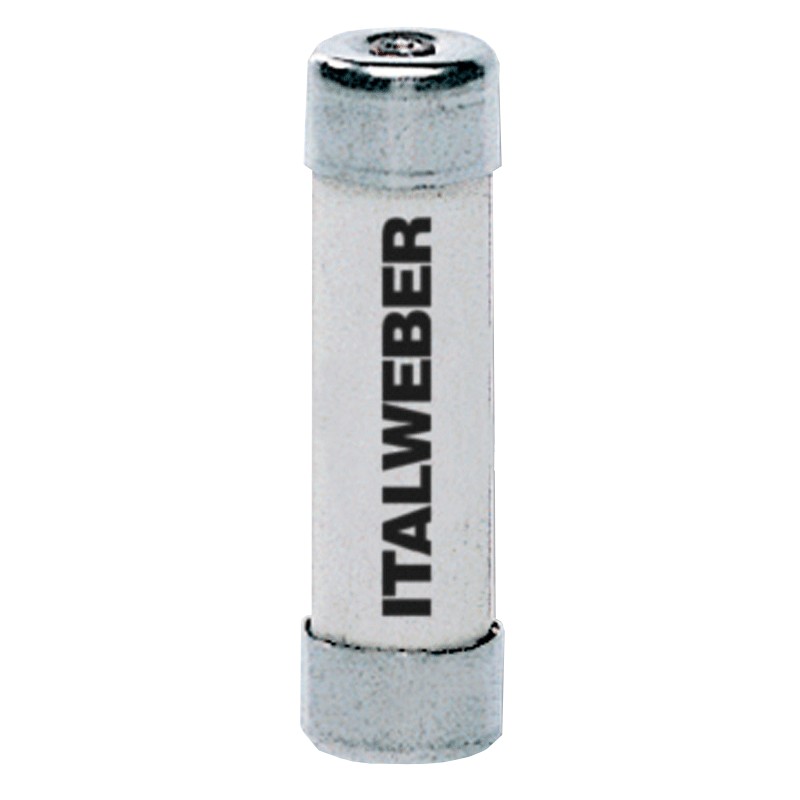

Italweber cylindrical fuse 8,5 x 31,5 mm gG 10A 400V 1100010
ITW 1100010
8024873046202
Italweber cylindrical fuse, with the following characteristics:
- Fuse gauge dimensions 8,5 x 31,5 mm
- Civil use series C0
- Intervention characteristic gG
- Rated current 10A
- Rated voltage 400 Vac
- Breaking capacity 20kA
€1.51
Items Available: 210
: 17
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber Series
- Fuse gauge dimensions 8,5 x 31,5 mm
- Civil use series C0
- Tripping characteristic gG
- Compliant with IEC 60269-1, IEC 60269-3 standards
- Rated current 10A
- Rated voltage 400 Vac
- Steatite body
- Contacts in silvered copper
- Breaking capacity 20kA
There are no reviews
Data sheet
- Type: Cylinder fuses
- Size: 8.5X31.5
- Voltage: 400VAC
- Breaking capacity: 20KA
- Amps: 10A
- Material: Steatite
