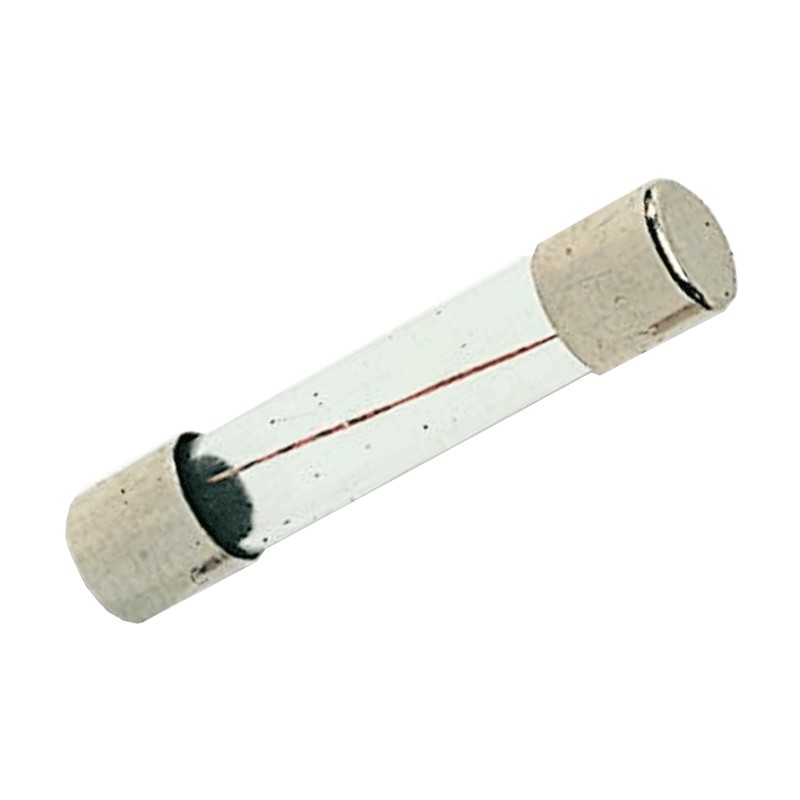

Italweber cylindrical fuse 6.3 x 32 mm standard 6.3A 250V 0304306
ITW 0304306
8024873014041
Italweber cylindrical fuse, with the following characteristics
- Glass body
- Contacts in silver-plated copper

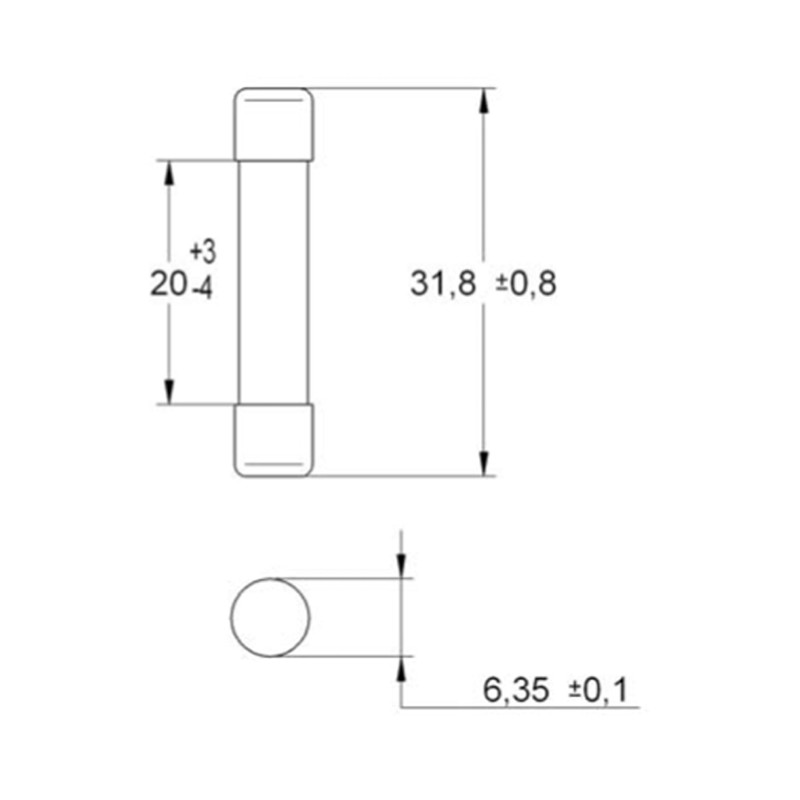

- Fuse gauge dimensions 6,3 x 32 mm
- Standard fuse type
- Rapid intervention characteristic (F)
- Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
- Rated current 6.3A
- Voltage 250V
- Interrupting capacity Ik 63
![](https://www.elettronew.com/41375-large_default/italweber-cylindrical-fuse-63-x-32-mm-standard-63a-250v-0304306.jpg)
Italweber cylindrical fuse 6.3 x 32 mm standard 6.3A 250V 0304306
€0.35
€0.35
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 272
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Glass body
- Silver plated copper contacts
- Fuse gauge dimensions 6,3 x 32 mm
- Standard fuse type
- Fast tripping characteristic (F)
- Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
- Rated current 6.3A
- Voltage 250V
- Interrupting capacity Ik 63
Data sheet
- Type:
- Cylinder fuses
- Size:
- 6,3X32
- Voltage:
- 250V
- Amps:
- 3A
- Material:
- Glass
