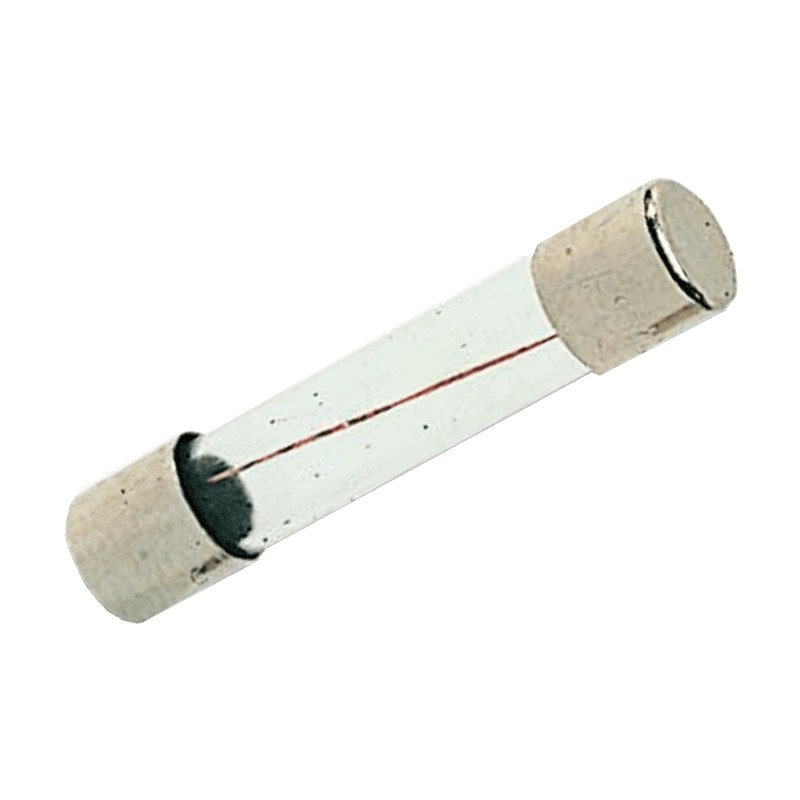

Italweber cylindrical fuse 6,3 x 32 mm standard 5A 250V 0304005


ITW 0304005 8024873014034

Italweber cylindrical fuse, with the following characteristics:

  • Fuse gauge dimensions 6,3 x 32 mm
  • Standard fuse type
  • Rapid intervention characteristic (F)
  • Nominal current 5A
  • Voltage 250V
  • Interrupting capacity Ik 50
Request info about this product

Italweber cylindrical fuse 6,3 x 32 mm standard 5A 250V 0304005

€0.35
€0.35

Italweber cylindrical fuse 6,3 x 32 mm standard 5A 250V 0304005

The minimum purchase order quantity for the product is 10.

€0.35
Tax included
klarna Pay in installments with Klarna
qty

Italweber cylindrical fuse 6,3 x 32 mm standard 5A 250V 0304005

€0.35

The minimum purchase order quantity for the product is 10.

Buy it within and receive it from Wednesday, 10 April
Two-year warranty
Secure Payment
Easy return within 14 days

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber series
  • Glass body
  • Silver plated copper contacts

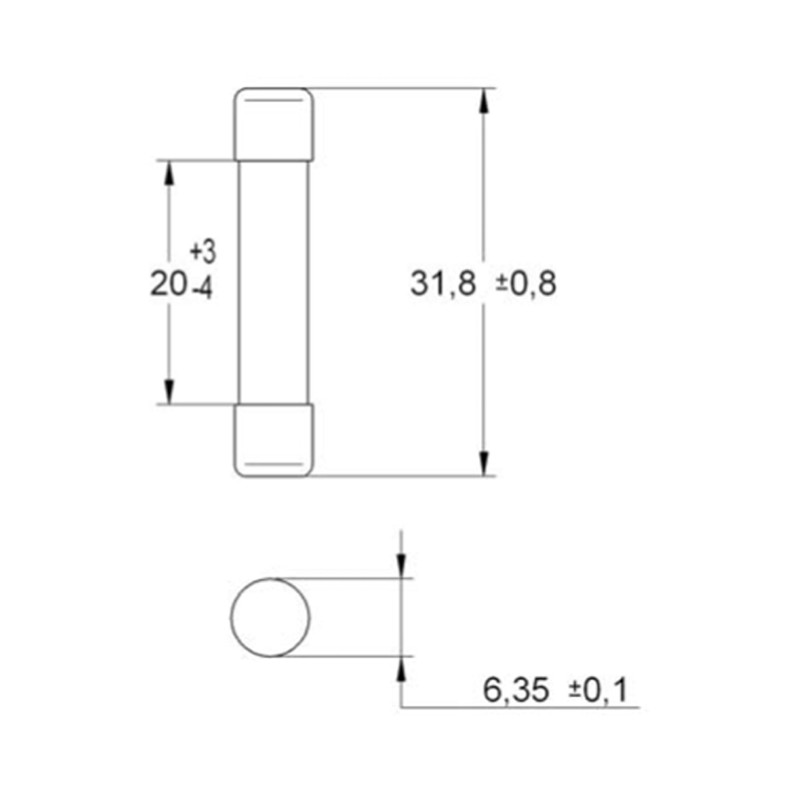

  • Fuse gauge dimensions 6,3 x 32 mm
  • Standard fuse type
  • Fast tripping characteristic (F)
  • Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
  • Rated current 5A
  • Voltage 250V
  • Interrupting capacity Ik 50

Data sheet

Type:
Cylinder fuses
Size:
6,3X32
Voltage:
250V
Amps:
5A
Material:
Glass
