Italweber cylindrical fuse 6.3 x 32 mm standard 3.15A 250V 0303153
ITW 0303153
8024873014010
Italweber cylindrical fuse, with the following characteristics:

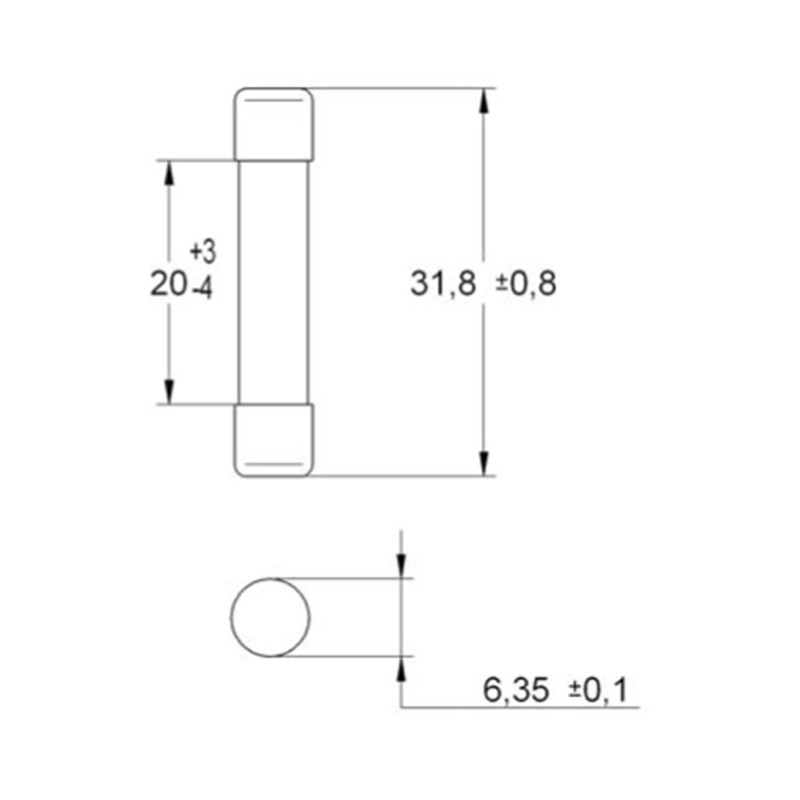

- Fuse gauge dimensions 6,3 x 32 mm
- Standard fuse type
- Rapid intervention characteristic (F)
- Nominal current 3.15A
- Voltage 250V
- Interrupting capacity Ik 35
€0.18
Items Available: 121
: 10
An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.
Features:
- Italweber series
- Glass body
- Silver plated copper contacts
- Fuse gauge dimensions 6,3 x 32 mm
- Standard fuse type
- Fast tripping characteristic (F)
- Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
- Rated current 3.15A
- Voltage 250V
- Interrupting capacity Ik 35
There are no reviews
Data sheet
- Type: Cylinder fuses
- Size: 6,3X32
- Voltage: 250V
- Amps: 15A
- Material: Glass
