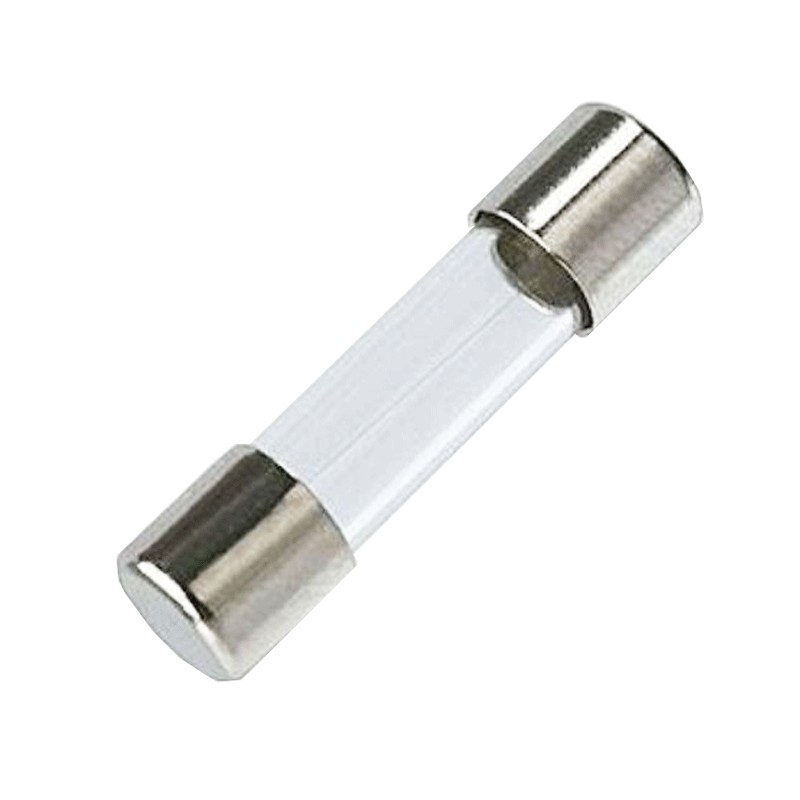

Italweber cylindrical fuse 5 x 20 mm standard 6.3A 250V 0104306


ITW 0104306 8024873011316

Italweber cylindrical fuse, with the following characteristics:

  • Fuse gauge dimensions 5 x 20 mm
  • Fuse Standard type
  • Fast tripping characteristic (F)
  • Nominal current 6.3A
  • Voltage 250V
  • Interrupting capacity Ik 63
Request info about this product

Italweber cylindrical fuse 5 x 20 mm standard 6.3A 250V 0104306

€0.15
€0.15

Italweber cylindrical fuse 5 x 20 mm standard 6.3A 250V 0104306

The minimum purchase order quantity for the product is 10.

€0.15
Tax included
klarna Pay in installments with Klarna
qty

Italweber cylindrical fuse 5 x 20 mm standard 6.3A 250V 0104306

€0.15

The minimum purchase order quantity for the product is 10.

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

An electrical fuse (simply called a fuse) is an electrical device that protects a circuit from overcurrents (caused, for example, by short circuits). When an overcurrent occurs, the filament melts causing the circuit to open.

Features:

  • Italweber series
  • Glass body
  • Silver plated copper contacts

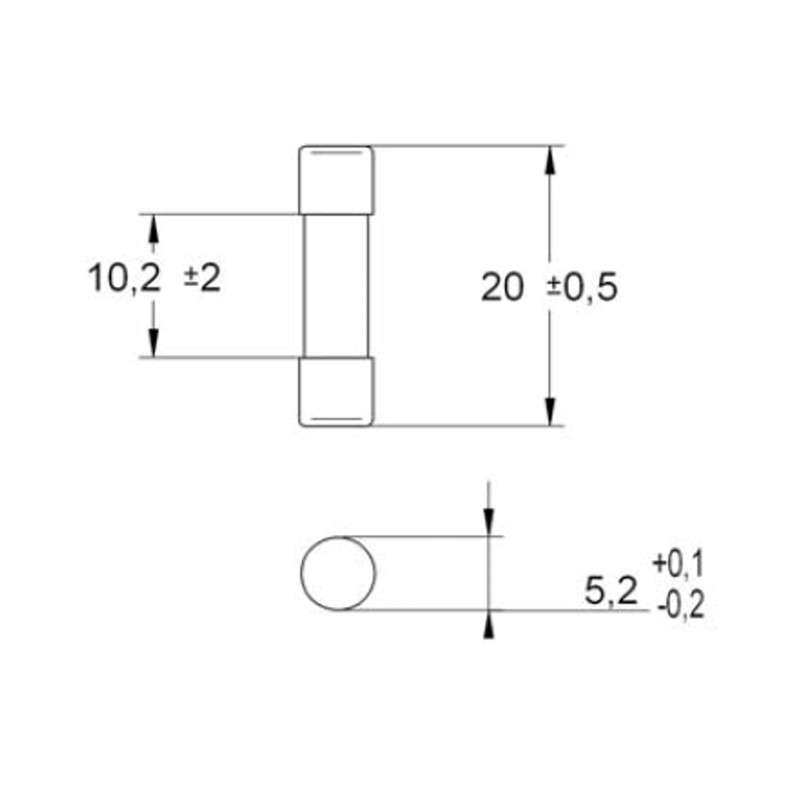

  • Fuse gauge dimensions 5 x 20 mm
  • Fuse Standard type
  • Fast tripping characteristic (F)
  • Compliant with standards CEI 32-6/1, CEI 32-6/2, IEC 60127-1, IEC 60127-2
  • Rated current 6.3A
  • Voltage 250V
  • Interrupting capacity Ik 63
  • Operating temperature -40°C / +90°C
  • Maximum altitude 2000 meters above sea level
  • Relative humidity < 50% at 40°C

Data sheet

Type:
Cylinder fuses
Size:
5X20
Voltage:
250V
Amps:
6.3A
Material:
Glass
